HM9B

HM9B Load Cell Short Description:
✅ Nickel plated alloy steel IP68 dual shear beam load cell;
✅ High accuracy;
✅ Suitable for truck, track, hopper and other electronic weighing devices;
✅ Current calibrated (sc-option);

Quantity:

Contact Now

add to cart

HM9B Load Cell Short Description: ( hm9b, hm9b load cell, hm9b c3 30t)

✅ Nickel plated alloy steel IP68 dual shear beam load cell;

✅ High accuracy;

✅ Suitable for truck, track, hopper and other electronic weighing devices;

✅ Current calibrated (sc-option);

hm9b c3 30t Available models:

Capacity	Accuracy	Full article description
10t	C3	HM9B-C3-10t-16B
20t	C3	HM9B-C3-20t-16B
25t	C3	HM9B-C3-25t-16B(-SC)
30t	C3	HM9B-C3-30t-16B(-SC)
40t LE	C3	HM9B-C3-40t LE-16B
40t	C3	HM9B-C3-40t-16B
50t	C3	HM9B-C3-50t-16B

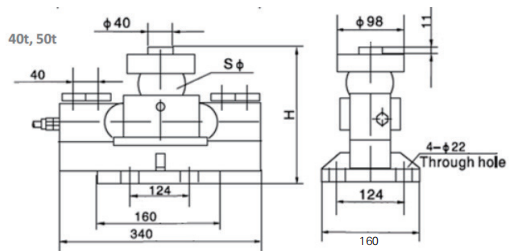

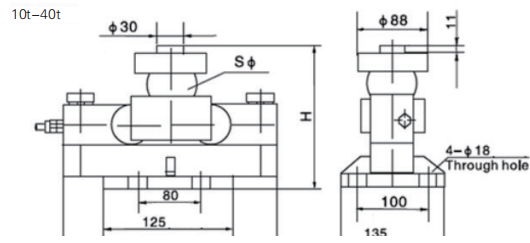

HM9B Load Cell Dimension: mm

HM9B Load Cell Technical Parameter:

Accuracy class		OIML R60 C3
Output sensitivity ( = FS )	mV/V	2.0 ± 0.002
Maximum capacity ( Emax )	t	10, 20, 25		30, 40LE, 40, 50
Maximum number of load cell intervals ( nLC )		3000
Ratio of minimum LC verification interval Y = Emax / vmin		15000		7500
Combined error	%FS	± 0.023
Minimum dead load	klb	0
Safe overload	of Emax	150%
Ultimate overload	of Emax	300%
Zero balance	%FS	± 1.5
Excitation, recommended voltage	V	5 ~ 12( DC )
Excitation maximum	V	18( DC )
Input resistance	Ω	700 ± 7
Output resistance	Ω	700 ± 7
Insulation resistance	MΩ	≥ 5000 ( 50VDC )
Compensated temperature	℃	-10 ~ +40
Operating temperature	℃	-35 ~ +65
Storage temperature	℃	-40 ~ +70
Element material		Nickel plated alloy steel
Ingress protection (according to EN 60529)		IP68
ATEX classification (optional)		II1G Ex ia IIC T4	II1D Ex iaD 20 T73℃		II3G Ex nL IIC T4

HM9B Load Cell Wiring:

✅ Shielded, 4 conductor cable;

✅ Cable diameter: Φ5.5mm;

✅ Standard cable length: 16m, also available in 12m;

✅ Shield not connected to element;
