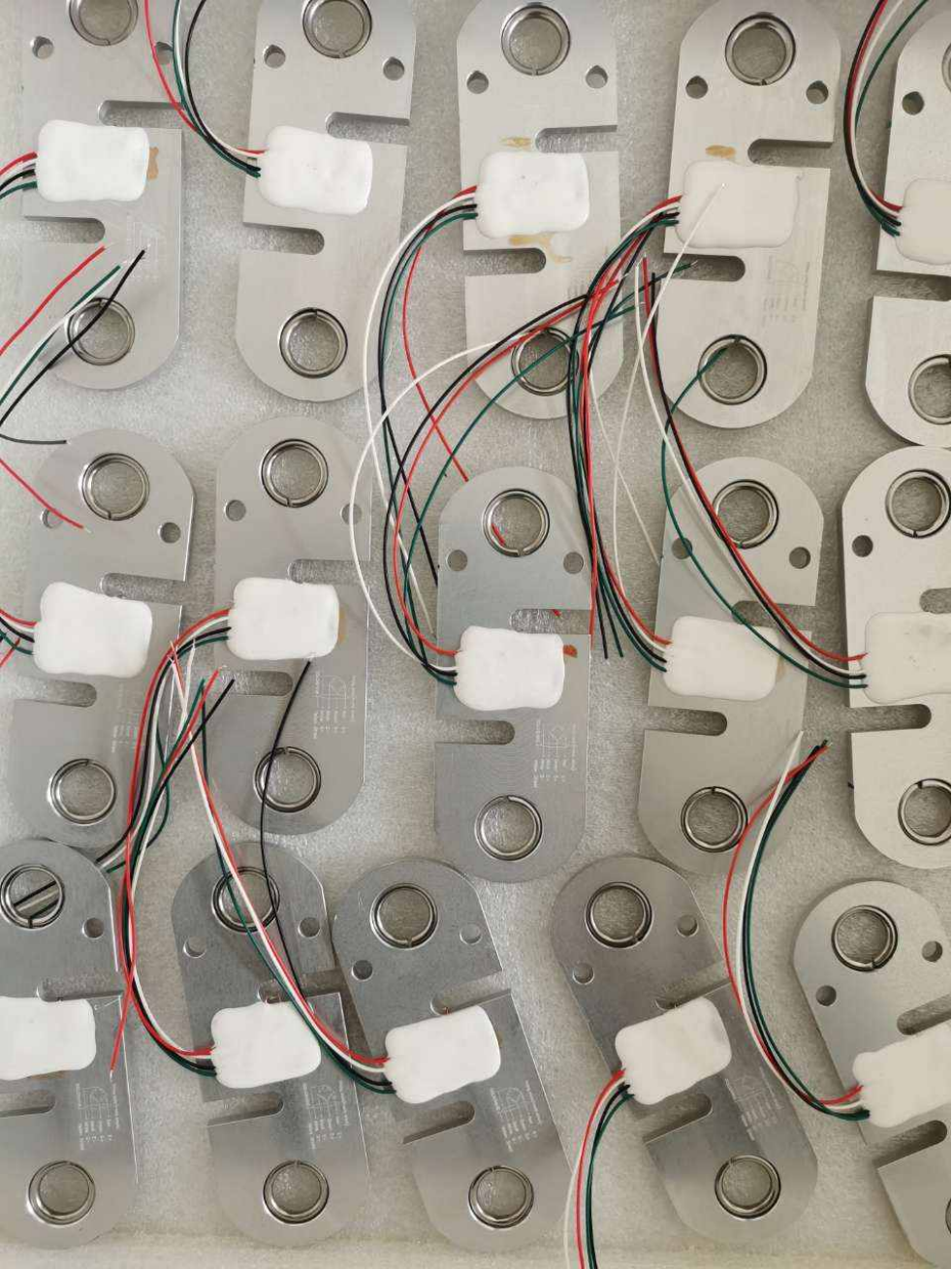

Hanging Load Cell
LC2423
Compact Tension-Compression Hanging Load Cell – High-precision strain-gauge sensor for bidirectional force measurement (50~300kg ,20kg load cell, load cell 30kg Etc. ). Features fast response, IP65+ protection, and robust performance in automation, testing, and medical applications. Compact design with flexible mounting options. Custom OEM solutions available. Reliable & cost-effective!
Quantity:
Compact Tension-Compression Hanging Load Cell – High-precision strain-gauge sensor for bidirectional force measurement (50~300kg ,20kg load cell, load cell 30kg Etc. ). Features fast response, IP65+ protection, and robust performance in automation, testing, and medical applications. Compact design with flexible mounting options. Custom OEM solutions available. Reliable & cost-effective! ( hanging load cell, 20kg load cell, load cell 30kg )
Product Description:
✅ Compression-Hanging load cell structure;
✅ Strain gauge technology,high accuracy;
✅ Compression tension force measurement;
Applications:
General test and measurement as well as machine monitoring and control. Ideal for packaging machinery, assembly machinery or end-of-line test equipment.

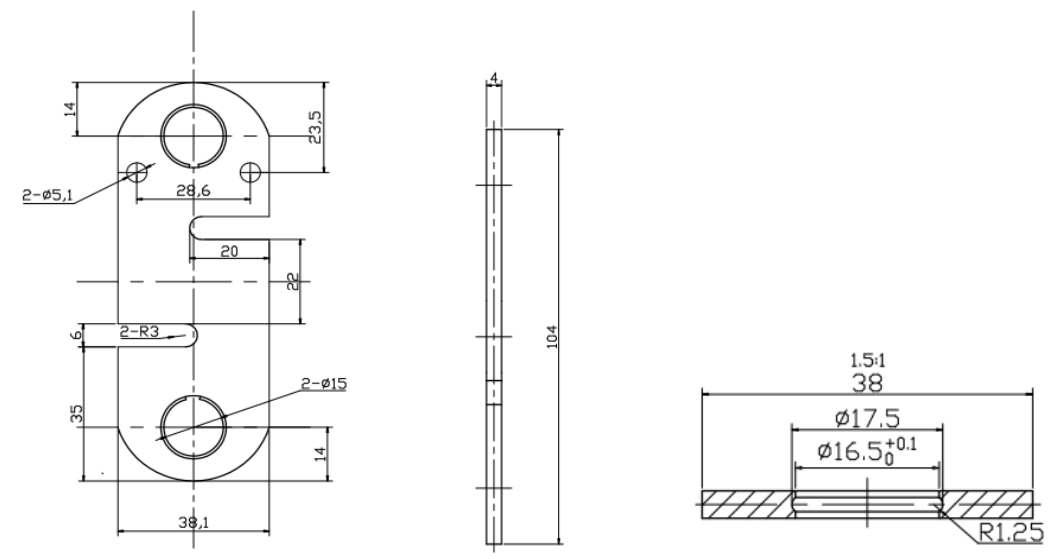

LC2423 Hanging Load Cell Dimension:
LC2423 Hanging Load Cell Technical Parameter:
| Rated load | 50/100/200/300kg | ||
| Precision | 0.2%FS | Temp.effect on span(%F.S/10℃) | ±0.1 |
| Comprehensive error(%F.S) | ±0.1 | Temp.effect on zero(%F.S/10℃) | ±0.1 |
| Rated output(mv/V) | 1.5±0.15 | Compensated temp.range(℃) | -5~+40 |
| Creep(%F.S/30min) | ±0.1 | Use temp.range(℃) | -5~+50 |
| Zero balance(%F.S) | ±1 | Excitation voltage(V) | 3-10(DC) |
| Input resistance(Ω) | 1000±10 | Safe overload(%F.S) | 120 |
| Output resistance(Ω) | 1000±10 | Ultimate overload(%F.S) | 150 |
| Insulation resistance(MΩ) | ≥5000(100VDC) | Defend grade | IP65 |
