Hand Force Load Cell
LC7299
Hand Force Load Cell – Precision Force Measurement
Grip Force Sensor for Hand Strength Test / Hand Grip Strength Measurement Transducer LC7299 is specially designed for hand grip strength measurement with 50N /100N /300N /500N /1000N five measuring ranges to choose from. Besides the standard specifications, Hand Force Load Cell LC7299 can also be modified or customized to meets requirements of different applications.You may find model LC7299 Grip Force Sensor applicable for force analysis on sports equipment, medical rehabilitation equipment.
Grip Force Sensor for Hand Strength Test / Hand Grip Strength Measurement Transducer LC7299 is specially designed for hand grip strength measurement with 50N /100N /300N /500N /1000N five measuring ranges to choose from. Besides the standard specifications, Hand Force Load Cell LC7299 can also be modified or customized to meets requirements of different applications.You may find model LC7299 Grip Force Sensor applicable for force analysis on sports equipment, medical rehabilitation equipment.
Quantity:
Hand Force Load Cell – Precision Force Measurement
Grip Force Sensor for Hand Strength Test / Hand Grip Strength Measurement Transducer LC7299 is specially designed for hand grip strength measurement with 50N /100N /300N /500N /1000N five measuring ranges to choose from. Besides the standard specifications, Hand Force Load Cell LC7299 can also be modified or customized to meets requirements of different applications.You may find model LC7299 Grip Force Sensor applicable for force analysis on sports equipment, medical rehabilitation equipment. ( Hand Force Load Cell, Hand Grip Strength Measurement Transducer, Grip Force Sensor )
Ningbo Saintbond provides custom design service to meet different applciations, wherever bolt safety matters,Forsentek team can help.

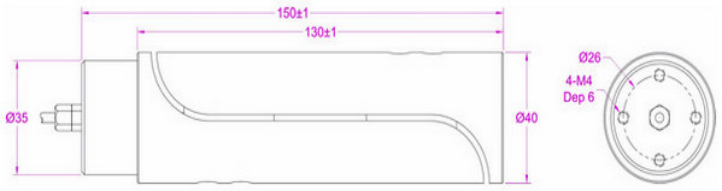

LC7299 Hand Force Load Cell Dimension:
LC7299 Hand Force Load Cell Technical Parameter:
| Capacity: | 50/100/300/500/1000N | ||
| Rated Output: | 2.0mV/V | Compensated Temp.: | .-10...+40°C |
| Excitation: | 3~15V | Operating Temp.: | .-20...+60°C |
| Zero Balance: | ±0.1mV/V | Temp. Shift Zero: | ±0.02% of R.O./°C |
| Nonlinearity: | ±0.3% of R.O. | Temp. Shift Span: | ±0.02% of R.O./°C |
| Hysteresis: | ±0.3% of R.O. | Input Resistance: | 385±30Ω |
| Nonrepeatability: | ±0.2% of R.O. | Output Resistance: | 380±30Ω |
| Creep(3Min.) | ±0.1% of R.O. | Insulation Resistance: | >2000MΩ(50V) |
| Safe Overload: | 150% of F.S. | Ingress Protection: | IP50 |
| Ultimate Overload: | 200% of F.S. | Material of Element: | Alloy Steel,Aluminum |
| R.O.=Rated Output；F.S.=Full Capacity | |||
Please note: If you require a Grip Force Sensor to a particular size and design, please contact with us (price on application). Wireless Hand Force Load Cell available (price on application).
