H8C Load Cell
H8C
The H8C load cell is a highly versatile and globally recognized series of shear beam load cells designed for general-purpose weighing. Known for their robust construction, reliability, and cost-effectiveness, these sensors are a staple in industrial weighing applications.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: H8C
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:500~10000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: H8C
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:500~10000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
15-35Day
Quantity:
h8c load cell, h8c c3 1.0 t 4b, load cell zemic h8c h8c load cell, h8c c3 1.0 t 4b, load cell zemic h8c h8c load cell, h8c c3 1.0 t 4b, load cell zemic h8c h8c load cell, h8c c3 1.0 t 4b, load cell zemic h8c h8c load cell, h8c c3 1.0 t 4b, load cell zemic h8c
The H8C load cell is a highly versatile and globally recognized series of shear beam load cells designed for general-purpose weighing. Known for their robust construction, reliability, and cost-effectiveness, these sensors are a staple in industrial weighing applications.

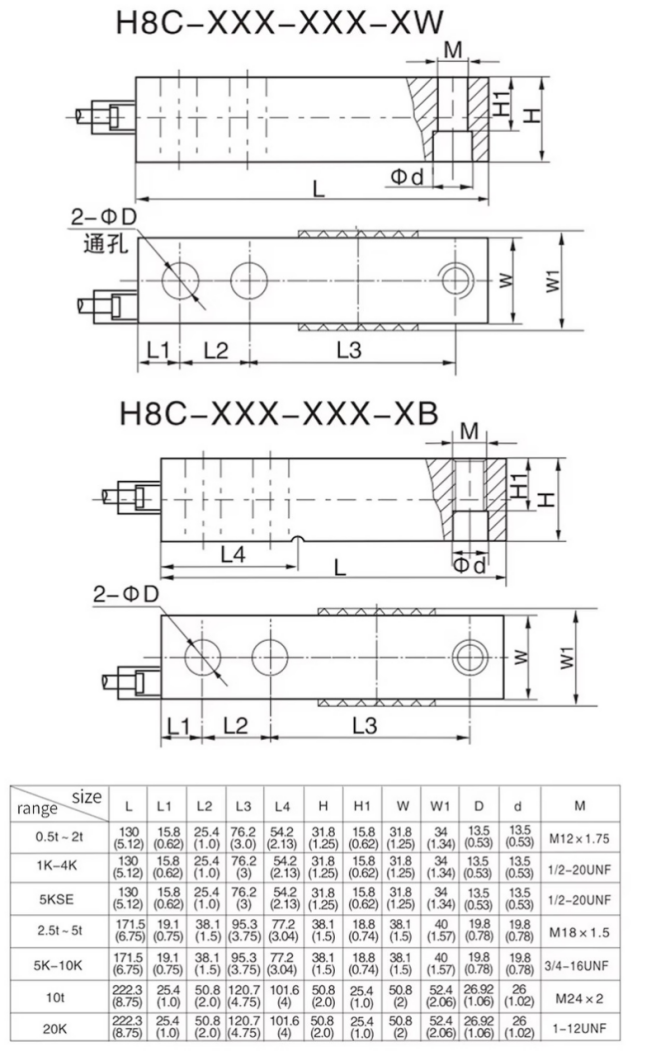

Load Cell Zemic H8C Dimension:
H8C Load Cell Technical Specifications (Typical):
Rated Output (Sensitivity): 2.0 ± 0.002 mV/V
Non-Linearity: ≤ ±0.017 % F.S. (C3 grade)
Hysteresis: ≤ ±0.017 % F.S. (C3 grade)
Creep (20 min): ≤ ±0.017 % F.S.
Temperature Effect on Zero: ≤ ±0.0029 % F.S. / 10°C
Temperature Effect on Span: ≤ ±0.0016 % F.S. / 10°C
Compensated Temperature Range: -20°C to +70°C
Input / Output Resistance: 380 ± 3.5 Ω / 350 ± 3 Ω
Recommended Excitation: 5-12 VDC (10V typical)
Safe Overload: 150% of F.S.
Ultimate Overload: 300% of F.S.
Rated Output (Sensitivity): 2.0 ± 0.002 mV/V
Non-Linearity: ≤ ±0.017 % F.S. (C3 grade)
Hysteresis: ≤ ±0.017 % F.S. (C3 grade)
Creep (20 min): ≤ ±0.017 % F.S.
Temperature Effect on Zero: ≤ ±0.0029 % F.S. / 10°C
Temperature Effect on Span: ≤ ±0.0016 % F.S. / 10°C
Compensated Temperature Range: -20°C to +70°C
Input / Output Resistance: 380 ± 3.5 Ω / 350 ± 3 Ω
Recommended Excitation: 5-12 VDC (10V typical)
Safe Overload: 150% of F.S.
Ultimate Overload: 300% of F.S.
H8C Load Cell Applications:
þ The Zemic Load Cell H8C is versatile and commonly used in:
þ Industrial Platform Scales & Floor Scales
þ Tank, Hopper, and Silo Weighing Systems
þ Belt Weighers and Conveyor Scales
þ Force Measurement in Process Control
þ Filling and Batching Systems
þ The Zemic Load Cell H8C is versatile and commonly used in:
þ Industrial Platform Scales & Floor Scales
þ Tank, Hopper, and Silo Weighing Systems
þ Belt Weighers and Conveyor Scales
þ Force Measurement in Process Control
þ Filling and Batching Systems
"h8c c3 1.0 t 4b"is a 1-ton capacity, C3 accuracy class shear beam load cell from the H8C series, with a standard 4-wire connection and 2mV/V output.
Why Choose the Zemic H8C Load Cell?
Proven Reliability: A field-tested design used in millions of installations worldwide.
Interchangeability:Consistent performance allows for easy replacement or system expansion.
Wide Capacity Range: Available in multiple capacities, typically from 0.5t to 5t or more within the H8C series.
Global Support: As a product from Zemic (a major global force in load cells, part of the Zhonghang Electronic Measuring Instruments Co., Ltd.), it benefits from extensive technical support and distribution networks.
Proven Reliability: A field-tested design used in millions of installations worldwide.
Interchangeability:Consistent performance allows for easy replacement or system expansion.
Wide Capacity Range: Available in multiple capacities, typically from 0.5t to 5t or more within the H8C series.
Global Support: As a product from Zemic (a major global force in load cells, part of the Zhonghang Electronic Measuring Instruments Co., Ltd.), it benefits from extensive technical support and distribution networks.
For precise specifications, installation drawings, and compliance certificates for a specific model like the h8c c3 1.0 t 4b, always refer to the official Zemic datasheet or contact an authorized distributor.
