Flexible Load Cell
LC5414
Flexible Load Cell – High-Precision Force Measurement
Saintbond flexible load cell designed for tension and compression applications, this Saintbond flexible load cell offers robust construction and high accuracy. Saintbond flexible load cell ideal for industrial automation, machinery monitoring, and test stands. Features easy integration, overload protection, and corrosion-resistant materials. Provides reliable performance in demanding environments. Custom ranges available.
Saintbond flexible load cell designed for tension and compression applications, this Saintbond flexible load cell offers robust construction and high accuracy. Saintbond flexible load cell ideal for industrial automation, machinery monitoring, and test stands. Features easy integration, overload protection, and corrosion-resistant materials. Provides reliable performance in demanding environments. Custom ranges available.
Quantity:
Flexible Load Cell – High-Precision Force Measurement
Saintbond flexible load cell designed for tension and compression applications, this Saintbond flexible load cell offers robust construction and high accuracy. Saintbond flexible load cell ideal for industrial automation, machinery monitoring, and test stands. Features easy integration, overload protection, and corrosion-resistant materials. Provides reliable performance in demanding environments. Custom ranges available. ( flexible load cell, weight sensor 100kg, Saintbond flexible load cell )
The pull and pressure dual-purpose force weight sensor 100kg is compact and easy to install. The measuring part is outer thread. The sensor has high accuracy, fast dynamic response, superior linearity and repeatability, and is widely used in the field of automatic force measurement.
LC5414 Flexible Load Cell Features:
✅ Tension and Compression load cells
✅ Capacity:5kg,...,100kg
✅ Super micro structure
✅ Stainless steel construction
✅ Environment protection class:IP65+

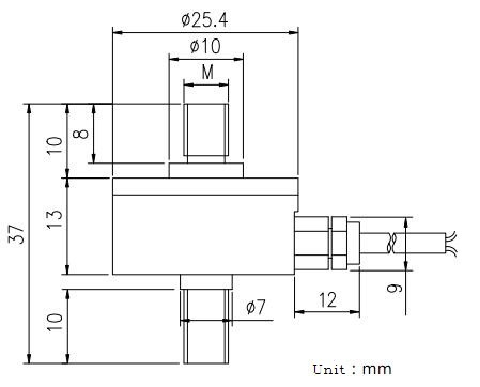

LC5414 Flexible Load Cell Dimension:(mm)
LC5414 Flexible Load Cell Technical Parameter:
| Capacity | 5/10/20/50/100kg | Material | Stainless Steel |
| Rated output | 2.0 ±10% mV/V | Output Impedance | 700±3Ω |
| Non-linearity | 0.1 % F.S. | Insulation | >5000MΩ/10VDC |
| Hysteresis | 0.1 % F.S. | Recommended Excitation | 5~10V |
| Repeatability | 0.1 % F.S. | Excitation max | 15V |
| Creep(30min) | 0.05 % F.S. | Compensated Temp Range | -10~60℃ |
| Temp Effect On Output | 0.05 % F.S./ 10℃ | Operating Temp Range | -20~80℃ |
| Temp Effect On Zero | 0.05 % F.S./ 10℃ | Safe Load | 1.2 |
| Protection Class | IP 65 | Ultimate Load Limit | 1.5 |
| Input Impedance | 750±5Ω | Cable Length | ∅4 x 3m |
