Flat weighing system

Flat weighing system

Keyword: Flat weighing system,module weighing system ,flat weighing modules

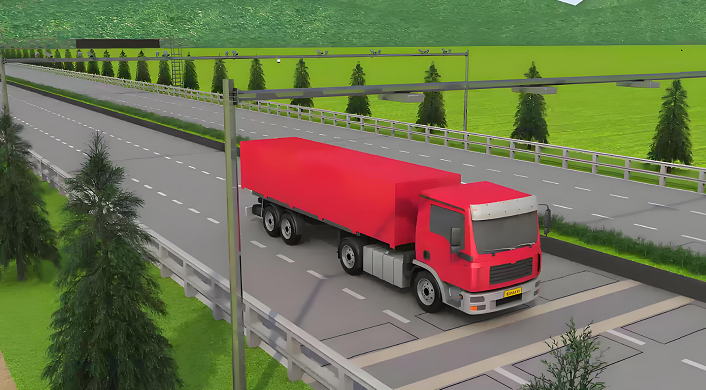

The non current module weighing system adopts high-precision dynamic weighing technology, video image processing technology, and network communication technology to achieve unmanned and off-site evidence collection. Accurate detection and measurement during high-speed vehicle travel provide a reliable guarantee for fast, accurate, and truthful evidence collection, as well as fair and impartial law enforcement both on and off site. The system adopts high-precision "module dynamic weighing technology" and has international advanced level. The dynamic continuous following weighing system has been tested by the National Weighing Quality Supervision and Inspection Center, with high measurement accuracy and stability of measurement results. It can meet the technical requirements of "high accuracy, high stability, and high traffic rate" at the same time. The technology is mature and has significant advantages. Accurate weighing can be achieved without any restrictions on vehicle movement. The system can correctly handle complex driving states such as lane crossing, weighing and braking, S-shaping, reversing, and following during the vehicle's movement, maintaining high accuracy.

The scheme has significant characteristics such as high weighing accuracy, high confidence, and fair law enforcement. It can also reduce construction costs, minimize human resource investment and management costs in the field, equipment, and precision inspection process of the precision inspection system.

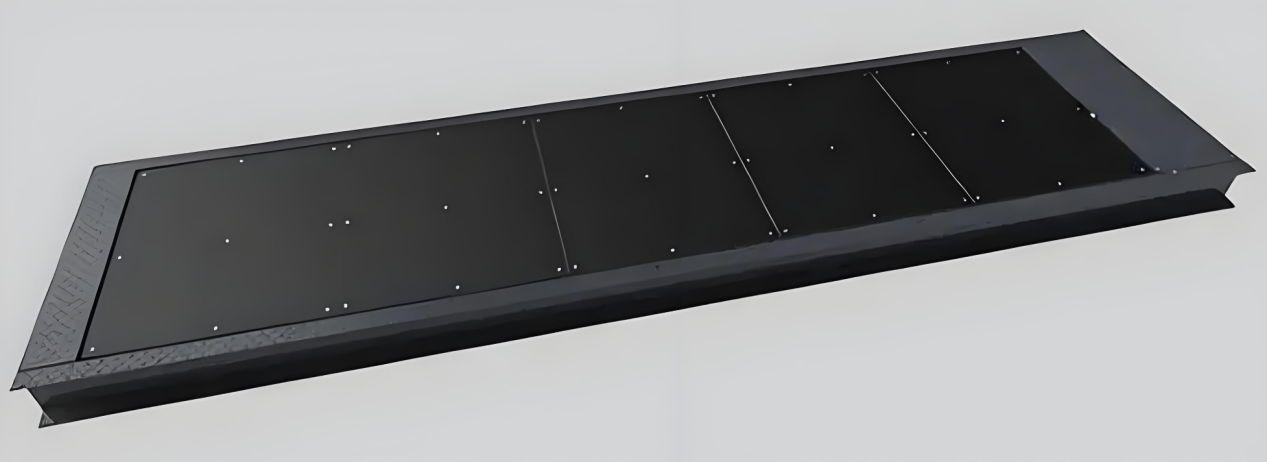

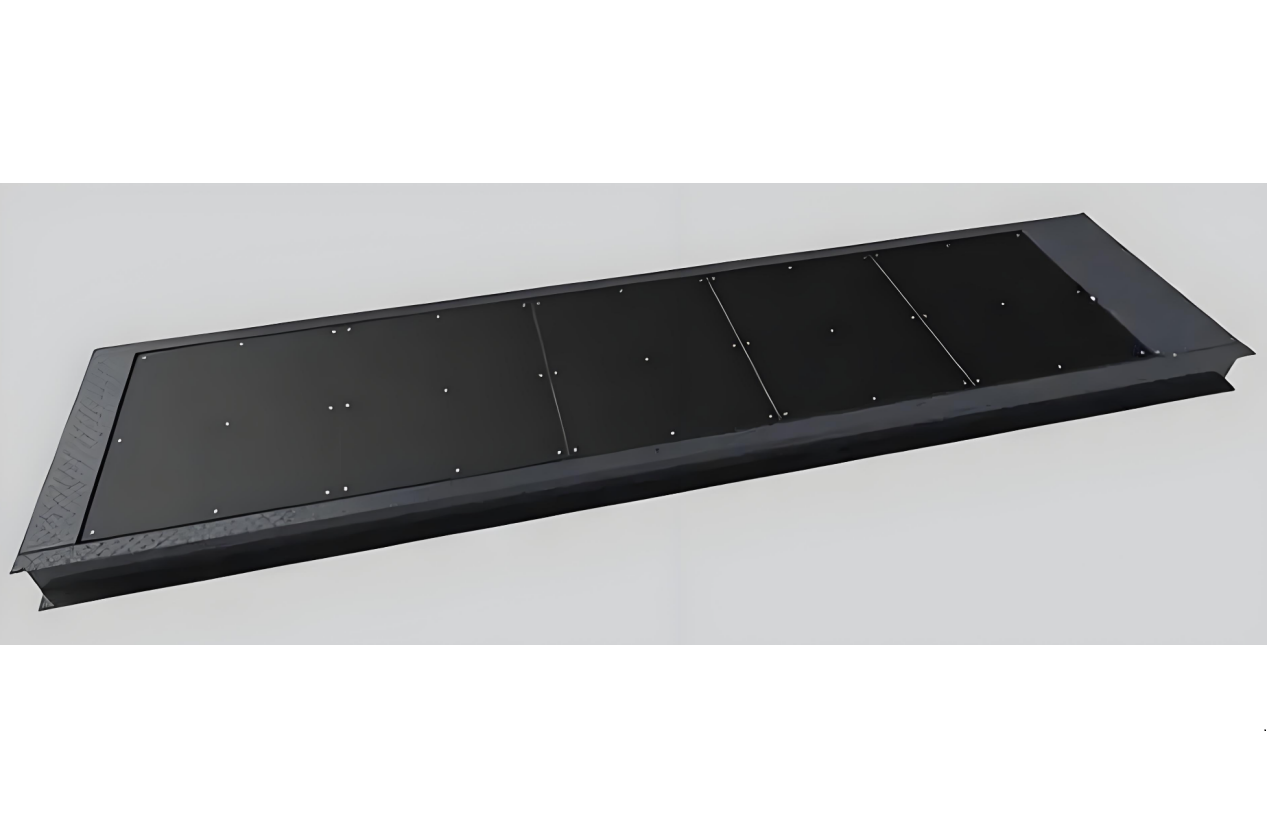

The module weighing system consists of several flat weighing modules, each of which has an independent weighing function. The data processor of the flat weighing module adopts multi-channel technology and independently collects and processes the corresponding sensing signals of the weighing sensors. The flat weighing module can weigh independently. The system automatically detects the number of axles, axle weight, and total weight of the vehicle and sends it to the front-end industrial computer in real time. The front-end industrial computer matches and saves the received weighing information and license plate information, and sends the data to the back-end comprehensive management platform.

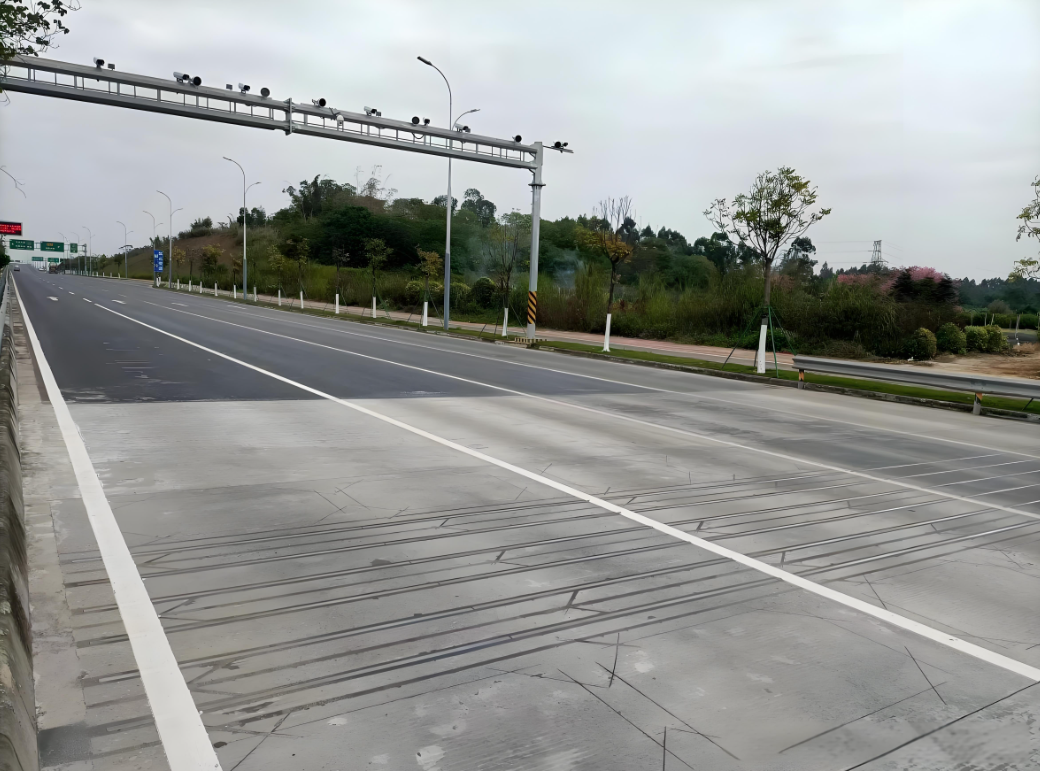

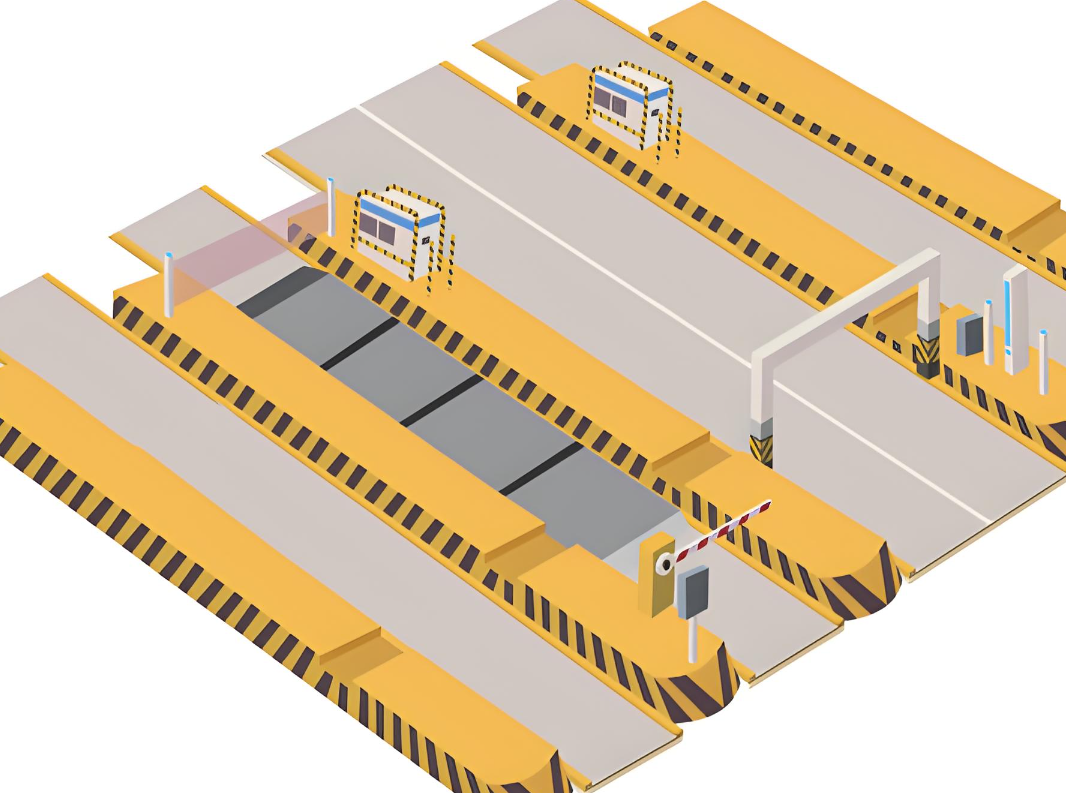

To save investment, the Flat weighing system has been optimized and designed with module layout lanes to achieve dynamic vehicle weighing. This solution has the characteristics of quick installation and simple maintenance.

System functions:

The Flat weighing system has reliable accuracy and reliability;

Provide real weighing data for highway overloading control work;

Optimize the design of three module weighing technology to save project construction funds;

Beneficial for reducing measurement disputes and maintaining social harmony and stability;

Beneficial for promoting the healthy development of off-site law enforcement.

Main technical parameters:

Capable of detecting the number of axles, axle weight, and total weight of a vehicle at a speed of 0-60km/h;

Vehicle weighing accuracy level: dynamic level 5;

The accuracy rate of axis recognition is 99.9%;

The accuracy of vehicle information matching is not less than 99%;

Can correctly detect abnormal driving behaviors such as reverse driving, S-turns, crossing lanes, braking, and acceleration/deceleration of vehicles; The confidence level is greater than 99%.
