Flat Beam Load Cell
LC3996
This Planar Beam Load Cell / Low-Profile Beam Load Cell features a low-profile design ideal for space-constrained applications. Manufactured from high-strength aluminum alloy, it delivers precise weight measurement with excellent resistance to off-center loading and environmental interference. The Planar Beam Load Cell / Low-Profile Beam Load Cell perfect for platform scales, conveyor systems, and industrial automation equipment requiring reliable performance in compact spaces. IP67 protection available for harsh environments.
Quantity:
LC3996 Flat Beam Load Cell Description:
This Planar Beam Load Cell / Low-Profile Beam Load Cell features a low-profile design ideal for space-constrained applications. Manufactured from high-strength aluminum alloy, it delivers precise weight measurement with excellent resistance to off-center loading and environmental interference. The Planar Beam Load Cell / Low-Profile Beam Load Cell perfect for platform scales, conveyor systems, and industrial automation equipment requiring reliable performance in compact spaces. IP67 protection available for harsh environments. (Planar Beam Load Cell, Low-Profile Beam Load Cell, Flat Beam Load Cell )
This Planar Beam Load Cell / Low-Profile Beam Load Cell features a low-profile design ideal for space-constrained applications. Manufactured from high-strength aluminum alloy, it delivers precise weight measurement with excellent resistance to off-center loading and environmental interference. The Planar Beam Load Cell / Low-Profile Beam Load Cell perfect for platform scales, conveyor systems, and industrial automation equipment requiring reliable performance in compact spaces. IP67 protection available for harsh environments. (Planar Beam Load Cell, Low-Profile Beam Load Cell, Flat Beam Load Cell )

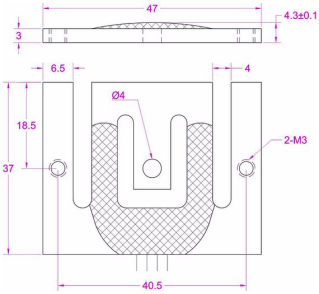

LC3996 Flat Beam Load Cell Dimension:
LC3996 Flat Beam Load Cell Technical Parameter:
| Rated Capacity: | 5/7.5Kg | Insulation resistance: | ≥2000MΩ |
| Full Scale Output: | 1.0mV/V ± 0.15 | Temp. effect on span: | ±0.1%F.S/10℃ |
| Non-linearity: | 0.05%FS | Temp. effect on zero: | ±0.05%F.S/10℃ |
| Hysteresis: | ±0.05%F.S | Compensated temp. range: | -10～+40℃ |
| Creep: | ±0.05%F.S/3min | Use temp. range: | -10～+40℃ |
| Zero balance: | ±0.3%F.S | Excitation voltage: | 3～8V(DC) |
| Input resistance: | 1000±10Ω | Safe overload: | 120%F.S |
| Output resistance: | 1000±10Ω | Ultimate overload : | 150%F.S |
