Flameproof Sensor
LC710
LC710 Flameproof Sensor / horizontal load cell ATEX/IECEx certified (Ex d IIC T6) for hazardous areas like oil & gas. Stainless steel construction with IP67 rating ensures corrosion/impact resistance. ±0.1% accuracy with overload protection. Horizontal load cell / explosion proof load cell is ideal for tanks, reactors and safety-critical weighing.
Quantity:
LC710 Flameproof Sensor / horizontal load cellATEX/IECEx certified (Ex d IIC T6) for hazardous areas like oil & gas. Stainless steel construction with IP67 rating ensures corrosion/impact resistance. ±0.1% accuracy with overload protection. Horizontal load cell / explosion proof load cell is ideal for tanks, reactors and safety-critical weighing. ( flameproof sensor, horizontal load cell, explosion proof load cell )
LC710 Flameproof Sensor Features:
High temperature horizontal load cell, planar load-bearing, with a reasonable structure. The bearing mechanism is simple and reliable, easy to use, and easy to install. LC710 explosion proof load cell is widely used in weighing systems such as continuous casting ladle scales, tundish scales, and overhead crane scales in the steel industry.

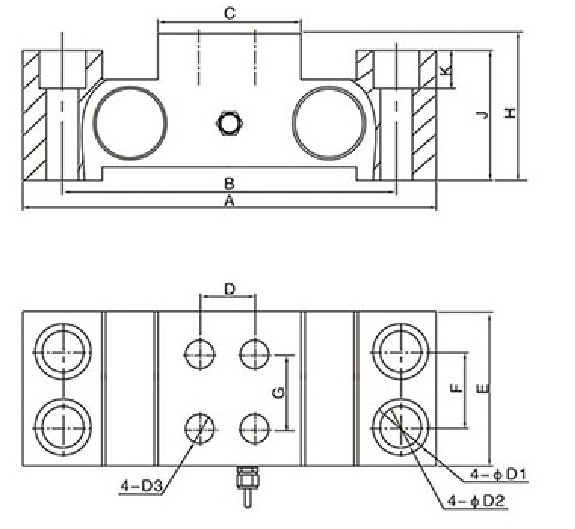

LC710 Flameproof Sensor Dimension:mm
LC710 Flameproof Sensor Features:
High temperature horizontal load cell, planar load-bearing, with a reasonable structure. The bearing mechanism is simple and reliable, easy to use, and easy to install. LC710 explosion proof load cell is widely used in weighing systems such as continuous casting ladle scales, tundish scales, and overhead crane scales in the steel industry.
LC710 Flameproof Sensor Dimension:mm
| Cap. | A | B | C | D | E | F | G | H | J | K | D1 | D2 | D3 |
| (t） | (mm) | ||||||||||||
| 20~30t | 300 | 240 | 110 | 60 | 120 | 70 | 70 | 120 | 115 | 30.5 | 40 | 26 | M24Depth25 |
| 40~50t | 300 | 240 | 110 | 80 | 150 | 70 | 80 | 120 | 115 | 30.5 | 40 | 26 | M24Depth25 |
| 60~120t | 400 | 280 | 120 | 60 | 150 | 80 | 80 | 120 | 100 | 40 | 50 | 33 | M24Depth25 |
LC710 Flameproof Sensor Technical Parameter:
| Rated Load: | 50~200t | ||
| Sensitivity: | 1.5±0.1%mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.5%F.S | Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.05%~±0.1%F.S | Ultimate Over Load: | 250%F.S |
| Zero Balance: | ±1.0% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 775±5Ω | Element Material: | Alloy/Stainless Steel |
| Output Resistance: | 700±2Ω | Cable: | 1m~12m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/OIMLR60 |
