Electronic Load Cell
LC2418
Saintbond Electronic Load Cell – High-precision, compact load cell designed for accurate force measurement in tight spaces. Features robust construction, excellent linearity, and overload protection. Electronic Load Cell Ideal for industrial automation, medical devices, and testing equipment. Offers reliable performance with easy integration. Capacities from 50g to 50kg. Contact us for customization!
Quantity:
Saintbond Electronic Load Cell – High-precision, compact load cell designed for accurate force measurement in tight spaces. Features robust construction, excellent linearity, and overload protection. Electronic Load Cell Ideal for industrial automation, medical devices, and testing equipment. Offers reliable performance with easy integration. Capacities from 50g to 50kg. Contact us for customization! ( s type load cell price, load cell near me, electronic load cell )
Product Description:
✅ S type load cell price structure;
✅ Strain gauge technology,high accuracy;
✅ Compression tension force measurement;
Applications:
General test and measurement as well as machine monitoring and control. Ideal for packaging machinery, assembly machinery or end-of-line test equipment.

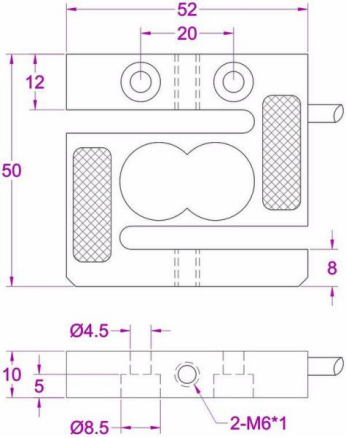

LC2418 Electronic Load Cell Dimension:
LC2418 Electronic Load Cell Technical Parameter:
| Capacity | 1/2/5/10/20/50kg | Material | Aluminum |
| Rated output | 1kg 1.0mV/V ; 2-20kg 2.0mV/V | ||
| Non-linearity | ±0.05 % F.S. | Output Impedance | 350±5Ω |
| Hysteresis | ±0.05% F.S. | Insulation | >5000MΩ/10VDC |
| Repeatability | ±0.03% F.S. | Recommended Excitation | 2.5-5V |
| Creep(30min) | ±0.03% F.S. | Excitation max | 10V |
| Temp Effect On Output | 0.05 % F.S./ 10℃ | Compensated Temp Range | -10~60℃ |
| Temp Effect On Zero | 0.05% F.S./ 10℃ | Operating Temp Range | -20~80℃ |
| Protection Class | IP 65 | Safe Load | 1.2 |
| Input Impedance | 385±50Ω | Ultimate Load Limit | 1.5 |
