Dynamic Axle Weigher
WS1110CD
Ningbo Saintbond is dynamic axle weigher Manufacturers and Suppliers, axle load cell are an advanced wireless, compact, portable axle weigher, ideal for maximising vehicle load, truck weighbridge for sale are used to determine the individual axle weights and total gross weight of any type of vehicle.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
Axle scales are knowed as dynamic axle weigher, axle load cell, truck weighbridge for sale supplier, are specialized weighing systems designed to measure the weight of individual vehicle axles or groups of axles, The weighments are completed one axle set at a time and then all the axle weights are summed to provide the total gross weight of the truck. dynamic axle weigher, play a crucial role in ensuring compliance with weight regulations and optimizing the safe and efficient transportation of goods.
Ningbo Saintbond is the world’s largest manufacturer of dynamic axle weigher, axle load cell, truck weighbridge for sale supplier in scaling technology. From complete wireless communication between scales, remote devices, and software, to industry-leading battery life, we offer a comprehensive range of products to fit any weighing application. Ningbo Saintbond sells quality, China-made in-ground and truck weighbridge for sale supplier that provide essential features for multiple industries.
Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment; Works both dynamically and statically; Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.

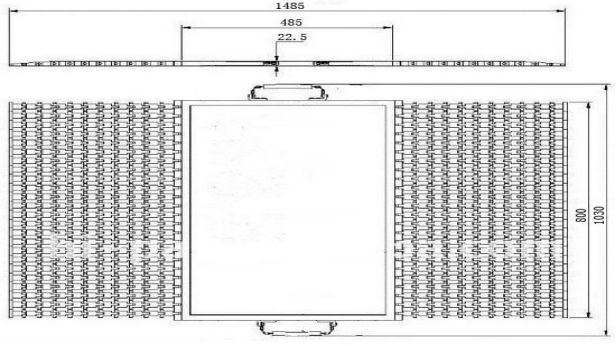

| WS1110CD Dynamic Axle Weigher Dimension: mm |
| WS1110CD Dynamic Axle Weigher Technical Specification: | |
| Rated Load:10/15/20/30t (Each Weigh Pad) | Compensated temp.range(℃): -10~+50 |
| Dynamic Error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 |
| Static Comprehensive Error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Rated Output(Mv/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
| Non-Linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
| Error On Corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
| Zero Balance(%F.S): ±1 | Ultimate overload(%): 150 |
| Excitation Voltage(VDC): 9~15 | Netweight(kg): 28 |
| Recommended Voltage(V): 10 | Defend grade: IP66 |
| Dynamic Comprehensive Error(%F.S): | 1.5 (1~5km/h),3(5~10km/h) |
| Static Comprehensive Error(%F.S): | 0.10% |
WS1110CD Dynamic Axle Weigher Weighing Indicator: ( Optional)
 |   | ||
| MWI03 Technical Parameters: ( Dynamic ) | MWI01 MWI02 Technical Parameter: ( Static ) | ||
| 1:Full range temperature coefficient 5ppm/C; | ◎Wireless Axle wheel/Container Indicator; | ||
| 2:Inner resolution 24 Bit; | ◎Dynamic and static weighing; | ||
| 3:Sampling Ratio 200 times/S; | ◎Built in thermal printer; | ||
| 4:Display refresher rate 12.5 times/s; | ◎Rechargeable battery; | ||
| 5:System nonlinear <0.01%; | ◎LCD display with backlight; | ||
| 6:Sensor excitation power supply DC 5V±2%; | ◎Up to N Platforms for Wireless and 4 for wired; | ||
| 7:Operating temperature 0C--40C; | ◎Over Load Protection and alarm; | ||
| 8:Power consumption (not including sensor): 70mA(under condition of no printing and turning off the backlight), 1000mA(when print); | ◎Portable & watertight case; | ||
| ◎Indicators for measuring axle; | |||
| 9:Power supply: with 6V/7AH lead-acid maintenance-free battery and also can be connected to. | ◎Thermal printer is built in; | ||
| 10:There are tow types single channel and dual channel, and dual channel type can detect vehicle load coefficient; | ◎Possible to use Weight-In-Motion mode and Static mode; | ||
How Dynamic Axle Weigher Works:
✅ Position: Place one pad under each wheel or set of wheels on the same axle.
✅ Connect: Link all pads wirelessly to a single, easy-to-read digital indicator.
✅ Weigh: Get simultaneous, accurate readings for each axle and the total weight in seconds.
✅ Position: Place one pad under each wheel or set of wheels on the same axle.
✅ Connect: Link all pads wirelessly to a single, easy-to-read digital indicator.
✅ Weigh: Get simultaneous, accurate readings for each axle and the total weight in seconds.
WS1110 Dynamic Axle Weigher Applications:
✅ Logistics & Freight Companies;
✅ Waste Management & Recycling;
✅ Construction and Heavy Haulage;
✅ Military and Emergency Services;
✅ Agricultural and Bulk Transport;
✅ Logistics & Freight Companies;
✅ Waste Management & Recycling;
✅ Construction and Heavy Haulage;
✅ Military and Emergency Services;
✅ Agricultural and Bulk Transport;
