Small Portable Scale
WS1130CD
Ningbo Saintbond is small portable scale Manufacturers and Suppliers, dot weight scale near me are an advanced wireless, compact, portable axle weigher, ideal for maximising vehicle load, axle scale for sale are used to determine the individual axle weights and total gross weight of any type of vehicle.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
( small portable scale, dot weight scale near me, axle scale for sale small portable scale, dot weight scale near me, axle scale for sale small portable scale, dot weight scale near me, axle scale for sale small portable scale, dot weight scale near me, axle scale for sale small portable scale, dot weight scale near me, axle scale for sale)
Axle scales are knowed as small portable scale, dot weight scale near me, axle scale for sale , are specialized weighing systems designed to measure the weight of individual vehicle axles or groups of axles, The weighments are completed one axle set at a time and then all the axle weights are summed to provide the total gross weight of the truck. small portable scale play a crucial role in ensuring compliance with weight regulations and optimizing the safe and efficient transportation of goods.
Ningbo Saintbond is the world's largest manufacturer of small portable scale, dot weight scale near me, axle scale for sale in scaling technology. From complete wireless communication between scales, remote devices, and software, to industry-leading battery life, we offer a comprehensive range of products to fit any weighing application. Ningbo Saintbond sells quality, China-made in-ground and small portable scale that provide essential features for multiple industries.
Axle scale is a portable, hand-held device which is suitable for both static and dynamic weight on vehicles, small portable scale are an economical, adaptable and portable solution for vehicle and truck weighing. An dot weight scale near me measures the individual weight of a vehicle’s axles and can provide the total weight of a vehicle. This type of dot weight scale near me is an ideal solution for applications with limited space and temporary or seasonal weighing needs. After one axle is weighed, the vehicle drives forward for the next axle to be weighed. Axle scales allow operators to monitor overloads and underloads, ensuring outgoing product is maximized while maintaining compliance with road weight limits.

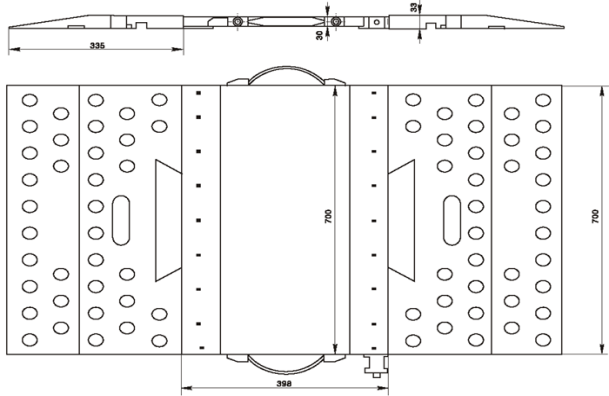

| WS1130CD Small Portable Scale Dimension:mm |
| Note: Both cable and spring tube are available on requests. |
| WS1130CD Small Portable Scale Technical Specification: | |||
| Dynamic error (%F.S): | 3 (5~10km/h) | Static error (%F.S): | 0.1~0.3 |
| Output Sensitivity: | 1±0.2m V/V | Temp., Compensated: | -10～+50℃ |
| Combined Error : | 0.2(%ld | Temp., Operating: | -40～+80℃ |
| Non-Linearity: | 0.2%ld | Excitation, Recommended (V): | 9～15DC |
| Repeatability: | 0.1%ld | Excitation, Max.(V): | 20DC |
| Input Resistance: | 3120±40Ω | Safe Overload: | 120%FS |
| Ouput Resistance: | 2800±10Ω | Ultimate Overload: | 150%FS |
| Insulation Resistance: | ≥5000(100VDC) | Protection Class: | IP66 |
| Zero Balance : | 4～10%FS | Cable Spec.: | 4-wire shield cable |
| Tem.Effect On Sensitivity | 0.1%FS/10℃ | Max. Load For Single Point (t): | 10t |
| Temp.Effect On Zero: | 0.1%FS/10℃ | Rated Capacity (t): | 15t |
WS1130CD Small Portable Scale Weighing Indicator: ( Optional)
 |   | ||
| MWI03 Technical Parameters: ( Dynamic ) | MWI01 MWI02 Technical Parameter: ( Static ) | ||
| 1:Full range temperature coefficient 5ppm/C; | ◎Wireless Axle wheel/Container Indicator; | ||
| 2:Inner resolution 24 Bit; | ◎Dynamic and static weighing; | ||
| 3:Sampling Ratio 200 times/S; | ◎Built in thermal printer; | ||
| 4:Display refresher rate 12.5 times/s; | ◎Rechargeable battery; | ||
| 5:System nonlinear <0.01%; | ◎LCD display with backlight; | ||
| 6:Sensor excitation power supply DC 5V±2%; | ◎Up to N Platforms for Wireless and 4 for wired; | ||
| 7:Operating temperature 0C--40C; | ◎Over Load Protection and alarm; | ||
| 8:Power consumption (not including sensor): 70mA(under condition of no printing and turning off the backlight), 1000mA(when print); | ◎Portable & watertight case; | ||
| ◎Indicators for measuring axle; | |||
| 9:Power supply: with 6V/7AH lead-acid maintenance-free battery and also can be connected to. | ◎Thermal printer is built in; | ||
| 10:There are tow types single channel and dual channel, and dual channel type can detect vehicle load coefficient; | ◎Possible to use Weight-In-Motion mode and Static mode; | ||
