Drilling Stress Measuring Load Cell
LC3534
The Load Cells in Oil & Gas / Load Cells in Geotechnical Monitoring is a specialized instrument for determining in-situ stress within rock and concrete structures. It operates by monitoring strain relief during controlled drilling, providing critical data on the magnitude and direction of existing stresses. This sensor is essential for geotechnical engineering, mining, and tunneling projects to assess structural stability and prevent hazards. Its robust design ensures reliable performance in harsh underground environments, delivering accurate measurements that are vital for safe and efficient design and excavation. Load Cells in Oil & Gas / Load Cells in Geotechnical Monitoring is the trusted tool for engineers requiring precise subsurface stress analysis.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3534
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:30kN
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3534
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:30kN
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
The Load Cells in Oil & Gas / Load Cells in Geotechnical Monitoring is a specialized instrument for determining in-situ stress within rock and concrete structures. It operates by monitoring strain relief during controlled drilling, providing critical data on the magnitude and direction of existing stresses. This sensor is essential for geotechnical engineering, mining, and tunneling projects to assess structural stability and prevent hazards. Its robust design ensures reliable performance in harsh underground environments, delivering accurate measurements that are vital for safe and efficient design and excavation. Load Cells in Oil & Gas / Load Cells in Geotechnical Monitoring is the trusted tool for engineers requiring precise subsurface stress analysis. ( Drilling stress measuring load cell, Load Cells in Oil & Gas, Load Cells in Geotechnical Monitoring)

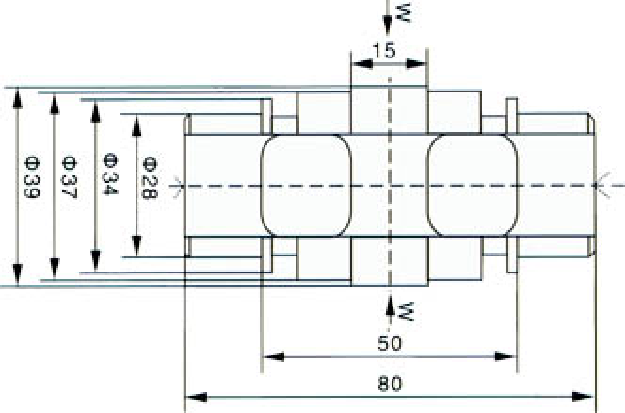

LC3534 Drilling Stress Measuring Load Cell Dimension:
LC3534 Drilling Stress Measuring Load Cell Technical Parameter:
| Model | LC3534 | Temp.Effect on Output | ±0.05%F.S/10℃ |
| Capacity | 30kN | Zero Output | ±0.1%F.S |
| Comprehensive Error | 0.3 | Input Resistance | 1030±10Ω |
| Output Sensitivity | 1.2±0.2mV/V | Output Resistance | 1000±10Ω |
| Non-linearity | ±1%F.S | Insulation Resistance | ≥2000MΩ (50V) |
| Repeatability | ±1%F.S | Excitation Voltage | ≤10V |
| Hysteresis | ±1%F.S | Operation Temp.Range | -10--+40℃ |
| Creep | ±0.05(5min)%F.S | Overload Capacity | 150%F.S |
| Temp.Effect on Zero | ±0.3%F.S/10℃ | Recommended Use | Drilling stress measuring |
