Double Shear Beam Load Cell
LC101M
LC101M Double Shear Beam Load Cell / double shear beam weighbridge load cell is a robust, high-precision sensor designed for industrial weighing applications. Constructed from alloy steel, it offers excellent resistance to side loads and overloads. LC101M Double Shear Beam Load Cell / beam load cell mounting with an accuracy of 0.03% FS, IP67+ protection, and a capacity range of 5-250klb, it is ideal for platform scales, hoppers, and process control. Features include easy installation, long-term stability, and 5-15V DC excitation. Desb load cell widely used in logistics, manufacturing, and food processing.
Quantity:
LC101M Double Shear Beam Load Cell / double shear beam weighbridge load cell is a robust, high-precision sensor designed for industrial weighing applications. Constructed from alloy steel, it offers excellent resistance to side loads and overloads. LC101M Double Shear Beam Load Cell / beam load cell mounting with an accuracy of 0.03% FS, IP67+ protection, and a capacity range of 5-250klb, it is ideal for platform scales, hoppers, and process control. Features include easy installation, long-term stability, and 5-15V DC excitation. Desb load cell widely used in logistics, manufacturing, and food processing. ( double shear beam load cell, beam load cell mounting, double shear beam weighbridge load cell )
LC101M Double Shear Beam Load Cell Specification:
✅ LC101M Double Shear Beam Load Cell are available in the capacities 5Klb to 200Klb.
✅ Alloy steel construction, potted by adhesive inside, oil-proof, waterproof anti-corrosive gas or medium making it suitable for all kinds of environments.
✅ Dual shear beam, easy installation, suitable for electronic truck scales, track scales, automobile testing facilities and other electronic weighing devices.

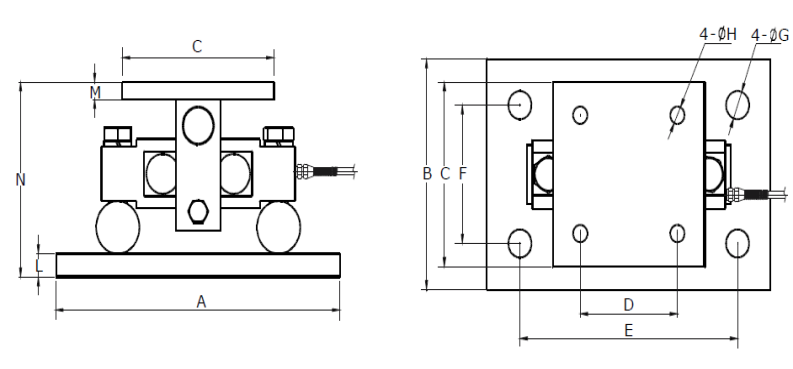

LC101M Double Shear Beam Load Cell Dimensions: Unit: mm(1mm=0.03937inch)
| Cap./Size | A | B | C | D | E | F | G | H | L | M | N |
| 5~20klb | 11 | 8 | 5.5 | 3 | 8 | 4 | 1.06 | 0.63 | 0.75 | 0.5 | 5.48 |
| 30~75klb | 15 | 10 | 8 | 5.13 | 11.5 | 6 | 1.22 | 0.75 | 1 | 0.75 | 8.43 |
| 100~150klb | 18 | 12 | 10 | 7.5 | 14 | 9 | 1.38 | 0.81 | 1.25 | 1.25 | 10.39 |
| 200~250klb | 26 | 12 | 12 | 9 | 20 | 9 | 1.88 | 1.06 | 2 | 2 | 15.73 |
LC101M Double Shear Beam Load Cell Technical Parameter:
| Rated Load: | 5/10/20/30/60/100/150/200/250klb | ||
| Sensitivity: | (2.0±0.1%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Tco: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Tc Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | A: Alloy Steel, SS: Stainless Steel |
| Output Resistance: | 703±2Ω | Cable: | Length=L:12m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
