Double Ended Load Cell
LC106
LC106 Double Ended Load Cell / truck scale load cells is a robust, high-precision sensor designed for industrial weighing applications. Constructed from alloy steel, it offers excellent resistance to side loads and overloads. LC106M truck scale load cells / dual bridge load cell with an accuracy of 0.03% FS, IP67+ protection, and a capacity range of 1-100klb, LC106M truck scale load cells / dual bridge load cell is ideal for platform scales, hoppers, and process control. Features include easy installation, long-term stability, and 5-15V DC excitation. Desb load cell widely used in logistics, manufacturing, and food processing.
Quantity:
LC106 Double Ended Load Cell / truck scale load cells is a robust, high-precision sensor designed for industrial weighing applications. Constructed from alloy steel, it offers excellent resistance to side loads and overloads. LC106M truck scale load cells / dual bridge load cell with an accuracy of 0.03% FS, IP67+ protection, and a capacity range of 1-100klb, LC106M truck scale load cells / dual bridge load cell is ideal for platform scales, hoppers, and process control. Features include easy installation, long-term stability, and 5-15V DC excitation. Desb load cell widely used in logistics, manufacturing, and food processing. ( double ended load cell, truck scale load cells, dual bridge load cell )
LC106 Double Ended Load Cell Specification:
✅ LC106 Double Ended Load Cell are available in the capacities 1Klb to100Klb.
✅ Alloy steel construction, potted by adhesive inside, oil-proof, waterproof anti-corrosive gas or medium making it suitable for all kinds of environments.
✅ Dual shear beam, easy installation, suitable for electronic truck scales, track scales, automobile testing facilities and other electronic weighing devices.

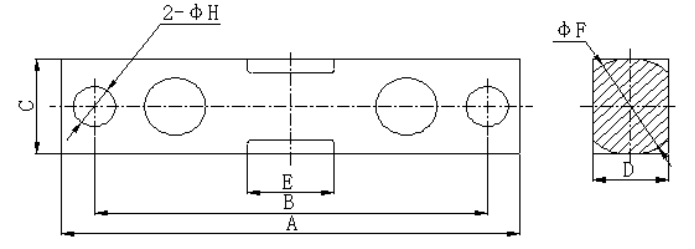

LC106 Double Ended Load Cell Dimensions: Unit: mm
| Capacity | A | B | C | D | E | F | H |
| ( klb ） | ( mm ) | ||||||
| 1~5Klb | 190.5 | 158.8 | 31 | 31 | 29 | 31.5 | 13 |
| 10~25Klb | 222.2 | 190.5 | 49.3 | 36.5 | 42 | 50.5 | 20.6 |
| 35Klb | 222.2 | 190.5 | 63.5 | 38 | 50 | 64.8 | 20.6 |
| 50~75Klb | 393.7 | 292.1 | 75 | 62 | 82.5 | 75.9 | 33.3 |
| 100Klb | 469.9 | 381 | 100.1 | 74.7 | 82.5 | 107.9 | 41.4 |
LC106 Double Ended Load Cell Technical Parameter:
| Rated Load: | 1/3/5/10/25/35/50/75/100klb | ||
| Sensitivity: | (2.0±0.1%) m V/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.03% F.S | Ultimate Over Load: | 250%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.03% F.S/10℃ | Max. Excitation Voltage: | 15V DC |
| Temp. Effect On Span: | ±0.03% F.S/10℃ | Sealing Class: | IP67 |
| Input Resistance: | 750±5Ω | Element Material: | Alloy Steel,Stainless Steel |
| Output Resistance: | 700±2Ω | Cable: | Length=L:12m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
