Double Beam Load Cell
LC110-2
LC110 Double Beam Load Cell / onboard truck scales load cells is a robust, high-precision sensor designed for industrial weighing applications. Constructed from alloy steel, it offers excellent resistance to side loads and overloads. LC110 onboard truck scales load cells / types of load cell for weighbridge With an accuracy of 0.03% FS, IP67+ protection, and a capacity range of 1-60t, it is ideal for platform scales, hoppers, and process control. Features include easy installation, long-term stability, and 5-15V DC excitation. Widely used in logistics, manufacturing, and food processing.
Quantity:
LC110 Double Beam Load Cell / onboard truck scales load cells is a robust, high-precision sensor designed for industrial weighing applications. Constructed from alloy steel, it offers excellent resistance to side loads and overloads. LC110 onboard truck scales load cells / types of load cell for weighbridge With an accuracy of 0.03% FS, IP67+ protection, and a capacity range of 1-60t, it is ideal for platform scales, hoppers, and process control. Features include easy installation, long-term stability, and 5-15V DC excitation. Widely used in logistics, manufacturing, and food processing. (types of load cell for weighbridge, onboard truck scales load cells, double beam load cell )

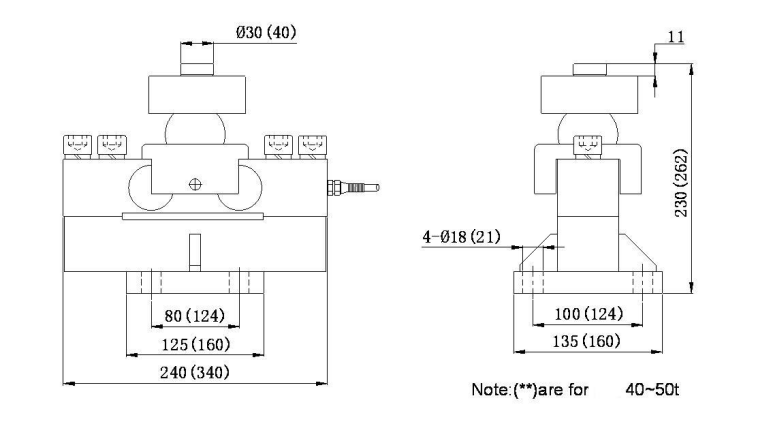

LC110 Double Beam Load Cell Dimension:mm
LC110 Double Beam Load Cell Technical Parameter:
| Rated Load: | 5/10/20/25/30/40/50t | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) mV/V | Max. Safe Over Load: | 150,120 (40~50t)%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300,200(40~50t)%F.S |
| Creep Error(30min): | ±0.01% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Tco: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Tc Span: | ±0.02% F.S/10℃ | Element Material: | Alloy/Stainless Steel |
| Input Resistance: | 750±5Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Cable: | Length=13m |
| Output Resistance: | 703±2Ω,703±5 Ω(L≥15m) | Mode Of Connection: | Red(Input+),Black(Input-), |
| Green(Output+),White(Output-) |
