Display Load Cell
LCSW05
Stainless Steel Load Link for crane, marine and rigging applications. Features , corrosion-resistant 17-4 stainless steel construction, and safety latch design. Rated for 1t to 500t capacities with ±0.05% accuracy. Weatherproof, maintenance-free operation with wireless telemetry options. CE certified.
Quantity:
Stainless Steel Load Link for crane, marine and rigging applications. Features , corrosion-resistant 17-4 stainless steel construction, and safety latch design. Rated for 1t to 500t capacities with ±0.05% accuracy. Weatherproof, maintenance-free operation with wireless telemetry options. CE certified. ( Stainless Steel Load Link, display load cell, loadlink logistics ,demo loadlink )
LCSW05 Display Load Cell Features:
✅ Rugged construction.
✅ Accuracy: 0.05% of capacity.
✅ All functions and units are clearly display on the LCD (with backlighting) .
✅ Digits are 1 inch high for easy distant viewing.
✅ Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
✅ Long battery life on 3 standard “LR6(AA)”size alkaline batteries.
✅ All commonly used internationally recognized units are available : kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).
✅ Infrared Remote control easier to calibration(with password).
✅ Infrared Remote control with many functions : “ZERO”, “TARE”, “CLEAR”, “PEAK”, “ACCUMULATE”,“HOLD”, “Unit Change”, “Voltage Check” and “Power OFF”.
✅ 4 local mechanical keys :“ON/OFF”, “ZERO”, “PEAK” and “Unit Change”.
✅ Low battery warning;
✅ Hazardous area Zone 1 and 2
✅ Built-in-display option
✅ Available with a range of displays to suit each application
✅ Environmentally sealed to IP67 or IP68
✅ Can be used singularly or in sets
LCSW05 Display Load Cell Specifications:
| Rate Load: | 1/3/5/12/25/35/50/55/85/100/150/200/250/300/500t | ||
| Battery Type: | 18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah) | ||
| Proof Load: | 150% of rate load | Max. Safety Load: | 125% F.S. |
| Ultimate Load: | 400% F.S. | Battery Life: | ≥40 hours |
| Power On Zero Range: | 20% F.S. | Operating Temp.: | - 10℃ ~ + 40℃ |
| Manual Zero Range: | 4% F.S. | Operating Humidity: | ≤85% RH under 20℃ |
| Tare Range: | 20% F.S. | Remote Controller Distance: | Min.15m |
| Stable Time: | ≤10seconds; | System Range: | 100~300m(Open Area),800~1500m (Optional) |
| Overload Indication: | 100% F.S. + 9e | Telemetry Frequency: | 430MHz to 470MHz |

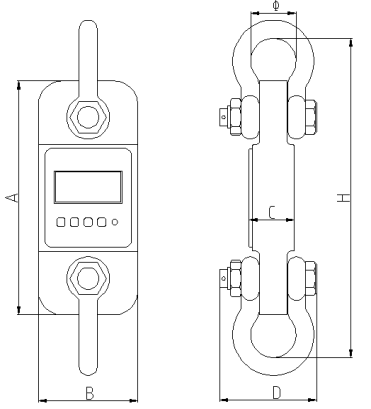

LCSW05 Display Load Cell Dimension:
| Model | Cap. | Div | A | B | C | D | φ | H | Material |
| ( Ton ) | (Kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| LCSW6-01 | 1t | 0.5 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
| LCSW6-02 | 2t | 1 | 245 | 116 | 37 | 190 | 43 | 335 | Aluminum |
| LCSW6-03 | 3t | 1 | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
| LCSW6-05 | 5t | 2 | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
| LCSW6-10 | 10t | 5 | 320 | 120 | 57 | 230 | 92 | 535 | Alloy /Stainless Steel |
| LCSW6-20 | 20t | 10 | 420 | 128 | 74 | 260 | 127 | 660 | Alloy /Stainless Steel |
| LCSW6-30 | 30t | 10 | 420 | 138 | 82 | 280 | 146 | 740 | Alloy /Stainless Steel |
| LCSW6-50 | 50t | 20 | 465 | 150 | 100 | 305 | 184 | 930 | Alloy /Stainless Steel |
| LCSW6-55 | 55t | 20 | 465 | 150 | 100 | 305 | 188 | 940 | Alloy /Stainless Steel |
| LCSW6-85 | 85t | 50 | 500 | 180 | 120 | 365 | 200 | 1050 | Alloy /Stainless Steel |
| LCSW6-100 | 100t | 50 | 570 | 190 | 132 | 366 | 229 | 1230 | Alloy /Stainless Steel |
| LCSW6-150 | 150t | 50 | 680 | 303 | 140 | 400 | 252 | 1311 | Alloy /Stainless Steel |
| LCSW6-200 | 200t | 100 | 700 | 350 | 144 | 440 | 280 | 1380 | Alloy /Stainless Steel |
| LCSW6-250 | 250t | 100 | 700 | 350 | 144 | 500 | 305 | 1880 | Alloy /Stainless Steel |
| LCSW6-300 | 300t | 200 | 806 | 426 | 150 | 500 | 305 | 1955 | Alloy /Stainless Steel |
| LCSW6-500 | 500t | 200 | 930 | 570 | 150 | 500 | 305 | 2065 | Alloy /Stainless Steel |
(Dimensions shown are nominal and subject to tolerances)
LCSW05 Display Load Cell Weight:
| Model | 1t | 2t | 3t | 5t | 10t | 20t | 30t | 50/55t |
| Weight(kg) | 1.6 | 1.7 | 2.1 | 2.7 | 10.4 | 17.8 | 25 | 39 |
| Weight with shackles(kg) | 3.1 | 3.2 | 4.6 | 6.3 | 24.8 | 48.6 | 87 | 128 |
| Model | 85t | 100t | 150t | 200t | 250t | 300t | 500t | |
| Weight(kg) | 50 | 81 | 90 | 95 | 95 | 125 | 210 | |
| Weight with shackles(kg) | 195 | 321 | 435 | 585 | 822 | 865 | 1600 |
