Disc Load Cell
LC557
Weighing disc load cell High-precision spoke disc load cell designed for accurate weight measurement in harsh environments. Features robust stainless steel construction, IP67 protection, and capacities from 500kg to 20t , load cell 3 ton. Weighing disc load cell /te connectivity load cell Ideal for truck scales, silos, and industrial weighing. Provides ±0.03% accuracy, easy installation, and long-term reliability. Suitable for static & dynamic weighing with excellent overload protection. Customizable options available.
Quantity:
Weighing disc load cell High-precision spoke disc load cell designed for accurate weight measurement in harsh environments. Features robust stainless steel construction, IP67 protection, and capacities from 500kg to 20t , load cell 3 ton. Weighing disc load cell /te connectivity load cell Ideal for truck scales, silos, and industrial weighing. Provides ±0.03% accuracy, easy installation, and long-term reliability. Suitable for static & dynamic weighing with excellent overload protection. Customizable options available. ( disc load cell, te connectivity load cell, load cell 3 ton )

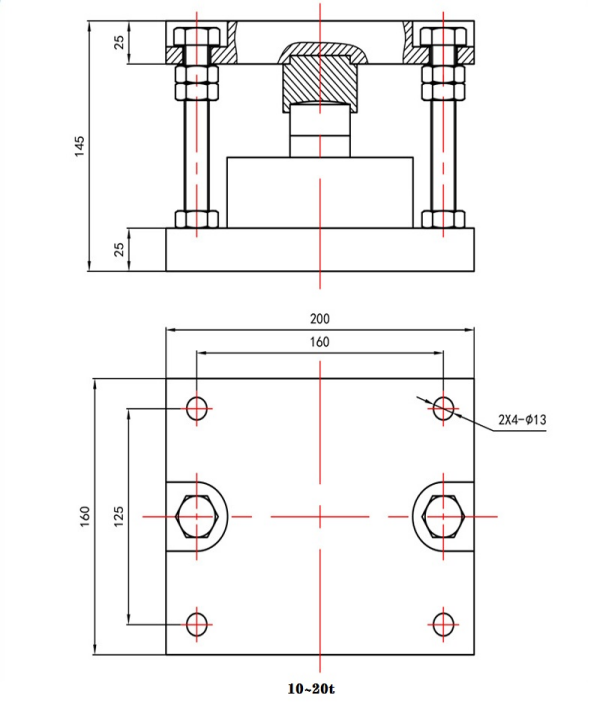

LC557 Disc Load Cell Dimension:
LC557 Disc Load Cell Technical Parameter:
| Rated Load: | 1~20t | ||
| Sensitivity: | (2.0±0.1%)) mV/V | Operating Temp.Range: | -30~+70℃ |
| Combined Error: | ±0.03%F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.03% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.05% F.S/10℃ | Max. Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.05% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 350±5Ω | Element Material: | Alloy/Stainless Steel |
| Output Resistance: | 350±2Ω | Cable: | 13m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/OIML R60 |
