Cylindrical Load Cell

LC4805

The column structure load cell / load cell cylinder adopts cylinder, column structure respectively according to the load size and function. With large measuring capacity, good sealing performance, stable and reliable performance, easy installation features.
Column structure load cell widely used in industrial automation measurement and control system in cement, coal and other industries of electronic truck scale, railway track scale, platform scale, hopper scale and other kinds of weighing, measuring force.

Quantity:

Contact Now

add to cart

Column structure load cell widely used in industrial automation measurement and control system in cement, coal and other industries of electronic truck scale, railway track scale, platform scale, hopper scale and other kinds of weighing, measuring force.

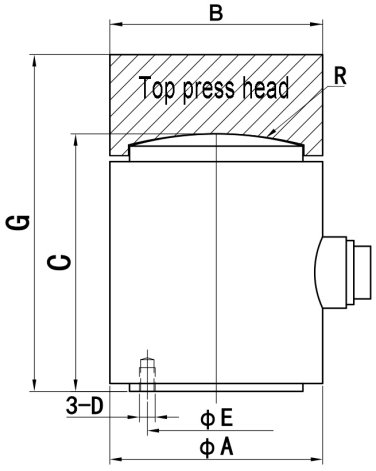

LC4805 Cylindrical Load Cell Dimension:mm

Capacity	30-50t	60-100t	200t	300t	500t	700-1000t
Size	(mm)
ØA	78	98	128	154	196	246
ØB	78	98	128	154	196	246
C	100	110	140	170	220	282
D	M6	M6	M6	M8	M10	M16
E	55	75	100	120	150	190
R	100	120	200	300	400	500
G	125	140	180	215	275	352

LC4805 Cylindrical Load Cell Technical Parameter:

Capacity:	30~1000t	Input Impedance	750 ± 20Ω
Rated Output	1.0~1.2± 0.05% mV/V	Output impedance	700 ± 5Ω
Non-linearity	0.2 % F.S.	Insulation	≥ 5000MΩ/50VDC
Hysteresis	0.2 % F.S.	Recommended Excitation	10~15V
Creep(30min)	0.3 % F.S.	Operation Temp. Range	- 20 ~ 80 ºC
Repeatability	0.15 % F.S.	Safe Overload	150 % F.S.
Temp. Effect On Output	±0. 3% F.S /10ºC	Ultimate Overload	200 % F.S.
Temp. Effect On Zero	0.03 % F.S./10ºC	Protection Class	IP67
