Cup and Ball type Load Cell
LC110-1
LC110 Cup and Ball type Load Cell / ball type load cell – Heavy-duty, high-precision sensors for truck scales and industrial weighing. Robust stainless steel/alloy construction, overload protection, and IP-rated sealing ensure durability in harsh conditions. LC110 Cup and Ball type Load Cell / double ended shear beam load cell price certified for trade, offering reliable performance in logistics, mining, and agriculture. Choose shear beam or compression types.
Quantity:
LC110 Cup and Ball type Load Cell / ball type load cell – Heavy-duty, high-precision sensors for truck scales and industrial weighing. Robust stainless steel/alloy construction, overload protection, and IP-rated sealing ensure durability in harsh conditions. LC110 Cup and Ball type Load Cell / double ended shear beam load cell price certified for trade, offering reliable performance in logistics, mining, and agriculture. Choose shear beam or compression types. ( cup and ball type load cell, ball type load cell, double ended shear beam load cell price )

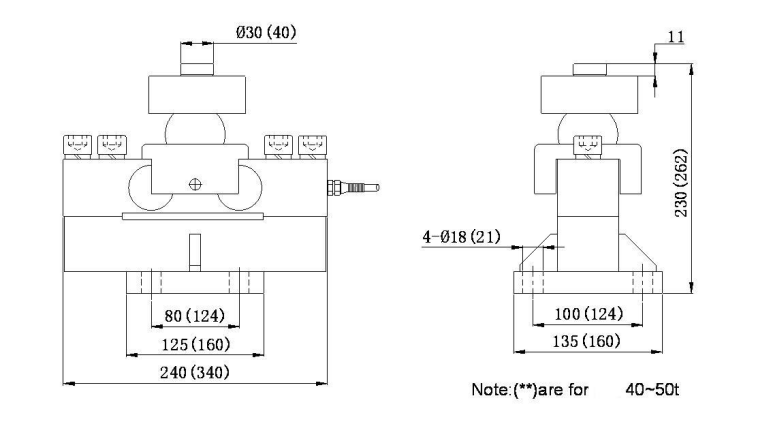

LC110 Cup and Ball type Load Cell Dimension:mm
LC110 Cup and Ball type Load Cell Technical Parameter:
| Rated Load: | 5/10/20/25/30/40/50t | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) mV/V | Max. Safe Over Load: | 150,120 (40~50t)%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300,200(40~50t)%F.S |
| Creep Error(30min): | ±0.01% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Tco: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Tc Span: | ±0.02% F.S/10℃ | Element Material: | Alloy/Stainless Steel |
| Input Resistance: | 750±5Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Cable: | Length=13m |
| Output Resistance: | 703±2Ω,703±5 Ω(L≥15m) | Mode Of Connection: | Red(Input+),Black(Input-), |
| Green(Output+),White(Output-) |
