CSPM Column Load Cell
LC4501
The LC4501CSP-M Compression Load Cell / CSPM column load cell is a multi-column, low profile, alloy steel or stainless steel compression load cell.The unique four column design offers excellent insensitivity to eccentric loads while maintaining accuracy.
This CSPM column load cell / CSPM canister load cell is suitable for use in road and rail weighbridges and process weighing applications. The fully leak-tested welded construction, advanced cable entry, and built-in surge protection tubes ensure that this product can be used successfully in harsh environments.
This CSPM column load cell / CSPM canister load cell is suitable for use in road and rail weighbridges and process weighing applications. The fully leak-tested welded construction, advanced cable entry, and built-in surge protection tubes ensure that this product can be used successfully in harsh environments.
Quantity:
Description:
The LC4501CSP-M Compression Load Cell / CSPM column load cell is a multi-column, low profile, alloy steel or stainless steel compression load cell.The unique four column design offers excellent insensitivity to eccentric loads while maintaining accuracy.
This CSPM column load cell / CSPM canister load cell is suitable for use in road and rail weighbridges and process weighing applications. The fully leak-tested welded construction, advanced cable entry, and built-in surge protection tubes ensure that this product can be used successfully in harsh environments. ( CSPM column load cell, CSPM canister load cell, CSP-M Compression Load Cell )
LC4501 CSPM Column Load Cell Features:
✅ Capacities:10–100t;
✅ Low profile, multi-column stainless steel construction;
✅ Hermetically sealed, IP66, IP68, and IP69K;
✅ Model LC4501 offers klb capacity, imperial thread;
✅ Current calibration output (SC version) ensures easy accurate parallel connection of multiple load cells;
LC4501 CSPM Column Load Cell Optional:
✅ Multi-interval and multiple range versions available;
✅ Imperial capacities (25k, 50k, 100k, 200k lbs) not;
LC4501 CSPM Column Load Cell Applications:
✅ Truck and rail weighbridges;
✅ Silo and hopper weighing;
✅ Process weighing;

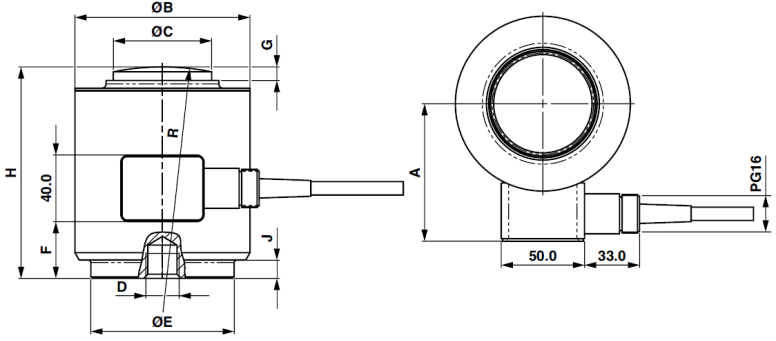

LC4501 CSPM Canister Load Cell Dimension: mm
The LC4501CSP-M Compression Load Cell / CSPM column load cell is a multi-column, low profile, alloy steel or stainless steel compression load cell.The unique four column design offers excellent insensitivity to eccentric loads while maintaining accuracy.
This CSPM column load cell / CSPM canister load cell is suitable for use in road and rail weighbridges and process weighing applications. The fully leak-tested welded construction, advanced cable entry, and built-in surge protection tubes ensure that this product can be used successfully in harsh environments. ( CSPM column load cell, CSPM canister load cell, CSP-M Compression Load Cell )
LC4501 CSPM Column Load Cell Features:
✅ Capacities:10–100t;
✅ Low profile, multi-column stainless steel construction;
✅ Hermetically sealed, IP66, IP68, and IP69K;
✅ Model LC4501 offers klb capacity, imperial thread;
✅ Current calibration output (SC version) ensures easy accurate parallel connection of multiple load cells;
LC4501 CSPM Column Load Cell Optional:
✅ Multi-interval and multiple range versions available;
✅ Imperial capacities (25k, 50k, 100k, 200k lbs) not;
LC4501 CSPM Column Load Cell Applications:
✅ Truck and rail weighbridges;
✅ Silo and hopper weighing;
✅ Process weighing;
LC4501 CSPM Canister Load Cell Dimension: mm
| Cap. | A | B | C | D | E | F | G | H | I | J |
| LC4501M | ||||||||||
| 10-25t | 63 | 72 | 32 | M12×8Deep | 57 | 13 | 7 | 83 | 2 | 150 |
| 40-60t | 83 | 105 | 59 | M20×20Deep | 86 | 35 | 8 | 127 | 11 | 150 |
| 100t | 107 | 150 | 80 | M20×20Deep | 124 | 70 | 22 | 185 | 20 | 430 |
| LC4501 | ||||||||||
| 10-50Klb | 63 | 72 | 32 | 1/2”×11Deep | 57 | 13 | 7 | 83 | 2 | 150 |
| 100Klb | 83 | 105 | 59 | 3/4”×20Deep | 86 | 35 | 8 | 127 | 11 | 150 |
| 200-300Klb | 107 | 150 | 80 | 3/4”×20Deep | 124 | 70 | 22 | 185 | 20 | 430 |
| 500Klb | 122 | 167 | 94 | 3/4”×20Deep | 136 | 91 | 15 | 228 | 25 | 432 |
LC4501 CSPM Canister Load Cell Technical Parameter:
| Rated Load:(LC4501M) | 10~100t | Insulation Resistance: | ≥5000MΩ |
| Rated Load:(LC4501) | 10~500Klb | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (3.0±0.1%) mV/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.05% F.S | Ultimate Over Load: | 250%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | -A: Alloy Steel, -SS: Stainless Steel |
| Input Resistance: | 450 ±4.5Ω | Cable: | Length=10~20m |
| Output Resistance: | 480 ±4.8Ω | Citation: | GB/T7551-2008/ OIML R60 |

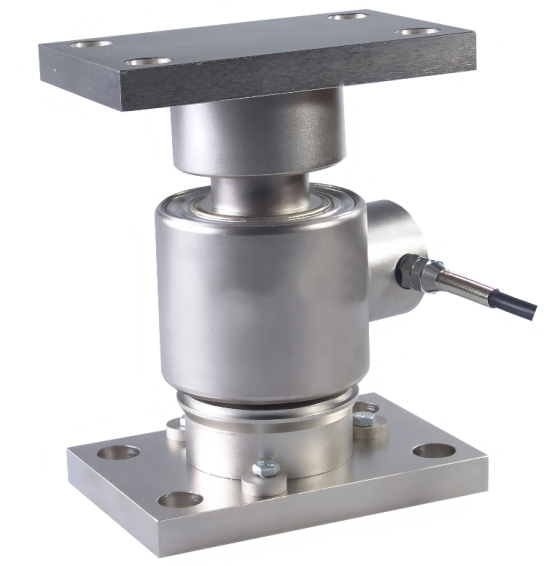

Optional mounting kit:
