Crane Scale Load Cell
LCSW10W
When headroom restrictions come into play, Saintbond Low Headroom Link wireless crane load cell is the perfect solution for accurate measurement of loads. LCSW10W load cell for eot crane made with high strength alloy steel and rigorously tested, it works with industry standard shackles i.e. Crosby, Standard shackle etc. for applications such as weighing, load monitoring and lifting. It features a wireless technology range of 100m~500m and can lift loads of up to 30t.
Quantity:
When headroom restrictions come into play, Saintbond Low Headroom Link wireless crane load cell is the perfect solution for accurate measurement of loads. LCSW10W load cell for eot crane made with high strength alloy steel and rigorously tested, it works with industry standard shackles i.e. Crosby, Standard shackle etc. for applications such as weighing, load monitoring and lifting. It features a wireless technology range of 100m~500m and can lift loads of up to 30t. ( dillon load cell, crane scale load cell, load cell for eot crane ,wireless crane load cell )
Features and Benfeits:
✅ Low height;
✅ Range from 1t to 30t;
✅ High accuracy;
✅ Lightweight and portable;
✅ Accepts standard shackles;
✅ Constructed from high strength alloy steel;;
Applications:
✅ Entertainment;
✅ Rigging;
✅ Low headroom applications;
✅ High accuracy suspended weighing;

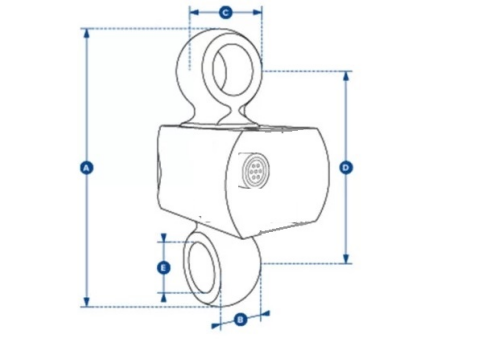

LCSW10W Crane Scale Load Cell Dimensions:Unit: mm
| Cap. | Resolution | A | B | C | D | ΦE | Weight |
| (Ton) | (kg) | (mm) | (kg) | ||||
| 1t | 0.5 | 110 | 18 | 33 | 74 | 18 | 1 |
| 3t | 1 | 129 | 25 | 35 | 88 | 21 | 1.2 |
| 5t | 1 | 165 | 33 | 50 | 111 | 27 | 2 |
| 10t | 2 | 205 | 41 | 63 | 135 | 37 | 2.5 |
| 20t | 5 | 249 | 66 | 90 | 153 | 53 | 4 |
| 30t | 5 | 248 | 58 | 87 | 150 | 44 | 6.2 |
LCSW10W Crane Scale Load Cell Technical Parameter:
| Rated Load: | 1/3/5/10/20/30t | ||
| Sensitivity: | (1.5±0.1%) m V/V | Operating Temp. Range | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Max.Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | A:Alloy Steel, SS:Stainless Steel |
| Output Resistance: | 702±2Ω | Cable: | Length=L:1m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
LCSW10W Crane Scale Load Cell Wireless Specifications:
| Battery Type: | 18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah) | ||
| Proof Load: | 150% of rate load | Max. Safety Load: | 125% F.S. |
| Ultimate Load: | 400% F.S. | Battery Life: | ≥40 hours |
| Power On Zero Range: | 20% F.S. | Operating Temp.: | - 10℃ ~ + 40℃ |
| Manual Zero Range: | 4% F.S. | Operating Humidity: | ≤85% RH under 20℃ |
| Tare Range: | 20% F.S. | Remote Controller Distance: | Min.15m |
| Stable Time: | ≤10seconds; | System Range: | 100~500m |
| Overload Indication: | 100% F.S. + 9e | Telemetry Frequency: | 430MHz to 470MHz |
