Crane Load Limiter
LC104W
Crane load limiting device / load limiter hoist, This advanced wireless load cell delivers precise real-time tension measurement for ropes and cables. Designed for harsh environments, it features robust construction, IP-rated weather resistance, and long-range data transmission. Ideal for lifting, rigging, marine, and safety-critical applications, Crane load limiting device / load limiter hoist with limiter ensures operational efficiency and safety with easy integration and reliable, calibration-certified accuracy.
Quantity:
Crane load limiting device / load limiter hoist, This advanced wireless load cell delivers precise real-time tension measurement for ropes and cables. Designed for harsh environments, it features robust construction, IP-rated weather resistance, and long-range data transmission. Ideal for lifting, rigging, marine, and safety-critical applications, Crane load limiting device / load limiter hoist with limiter ensures operational efficiency and safety with easy integration and reliable, calibration-certified accuracy. ( crane load limiter, crane load limiting device, load limiter hoist )
LC104W Crane Load Limiter Features:
✅ Can be fitted retrospectively;
✅ Sufficiently accurate for determining remaining design life of cranes and hoists;
✅ Available in capacities for measuring rated loads up to 310/20/30/40/50/60/100/150/200/250/300kN per fall;
✅ Can be fitted to ropes with diameters between 6 and 36 mm.
✅ IP67/IP68 rated;
✅ Simple installation - clamp on, connect up 4 wires and calibrate in situation;
✅ Can be fitted retrospectively;
✅ Sufficiently accurate for determining remaining design life of cranes and hoists;
✅ Available in capacities for measuring rated loads up to 310/20/30/40/50/60/100/150/200/250/300kN per fall;
✅ Can be fitted to ropes with diameters between 6 and 36 mm.
✅ IP67/IP68 rated;
✅ Simple installation - clamp on, connect up 4 wires and calibrate in situation;

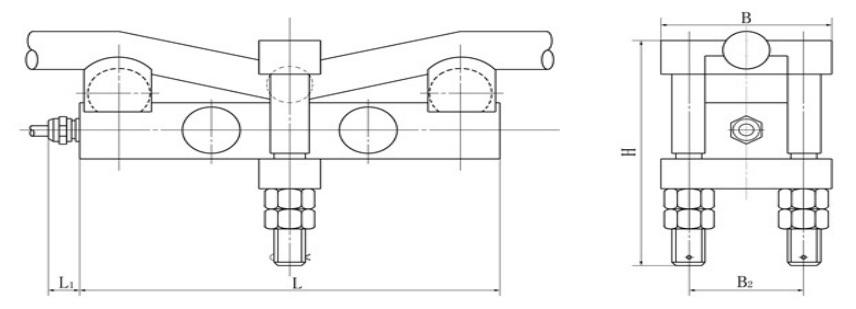

LC104W Crane Load Limiter Dimension:mm
| Wire Rope Tension | Cap. | Wire Rope Dia. | H | L | L1 | B | B1 |
| 1t | 1t | Ø6-14 | 117 | 160 | 18 | 76 | 45 |
| 2t | 1t | Ø10-18 | 117 | 160 | 18 | 76 | 45 |
| 5t | 2t | Ø16-26 | 117 | 160 | 18 | 76 | 45 |
| 10-20t | 5-10t | Ø24-36 | 170 | 260 | 18 | 108 | 68 |
| 20t | 10t | Ø24-36 | 175 | 272 | 18 | 112 | 72 |
LC104W Crane Load Limiter Technical Parameter:
| Wire Rope Size: | 1/2/3/5/10t | ||
| Sensitivity: | (1.0±0.1%) mV/V | Operating Temperature Range: | -30~+70℃ |
| Combined Error: | ±0.1% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Voltage: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy Steel, Stainless Steel |
| Output Resistance: | 352±2Ω | Cable: | Length=1m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
