Connecting Load Cells in Parallel
LC3514
This aluminum planar beam load cell / aluminum connecting load cells in parallel offers an excellent balance of precision, durability, and cost-effectiveness. Its low-profile, planar design provides high stiffness and resistance to off-axis loads.The aluminum planar beam load cell / aluminum connecting load cells in parallel ideal for small to medium capacity weighing in scales, industrial automation, and force measurement, it delivers reliable performance where space, weight, and budget are key considerations.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3514
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 60 ~ 800kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3514
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 60 ~ 800kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
This aluminum planar beam load cell / aluminum connecting load cells in parallel offers an excellent balance of precision, durability, and cost-effectiveness. Its low-profile, planar design provides high stiffness and resistance to off-axis loads.The aluminum planar beam load cell / aluminum connecting load cells in parallel ideal for small to medium capacity weighing in scales, industrial automation, and force measurement, it delivers reliable performance where space, weight, and budget are key considerations. ( connecting load cells in parallel, aluminum connecting load cells in parallel , aluminum planar beam load cell )

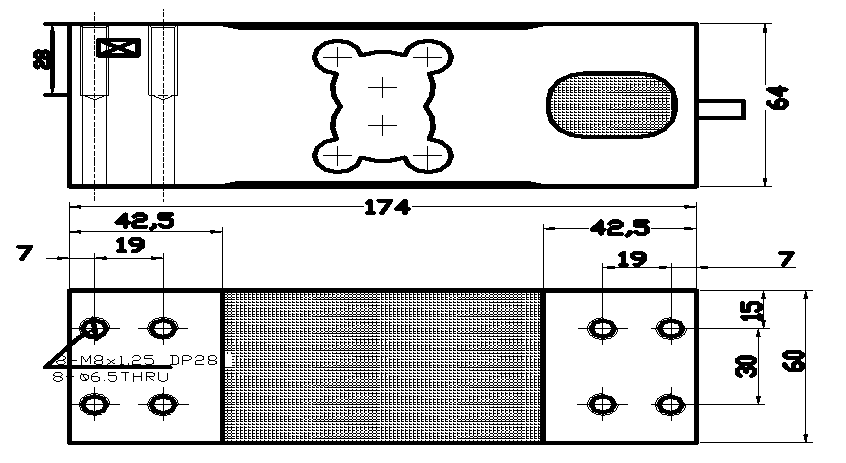

LC3514 Connecting Load Cells in Parallel Dimension:
LC3514 Connecting Load Cells in Parallel Technical Parameter:
| Capacity: | 60kg - 800Kg | Input Resistance: | 405±10Ω |
| Outline Size: | 64×60×174 | Output Resistance: | 350±5Ω |
| Rated Output: | 2.0mv/V±5% | Insulation Resistance: | ≥5000MΩ |
| Zero Balance: | ±2%R.O. | Temperature Compensated: | -10to+40℃ |
| Non-Linearity: | ±0.015%R.O. | Operating Temp. Range | -20to+60℃ |
| Hysteresis,Non-Repeatability: | ±0.02%R.O. | Recommend Excitation Vol.: | 5~12VDC |
| Creep(5 Minute): | ±0.02%R.O. | Maximum Excitation Vol.: | 18VDC |
| Temp. Compensated For Output: | ±0.03%R.O./10℃ | Safe Overload: | 150%.R.C |
| Temp. Compensated For Zero: | ±0.03%R.O./10℃ | Cable: | 2m(φ5mm) |
