Compression and Tension Load Cell
LC5413-1
Ningbo Saintbond is a leading Chinese load cell manufacturers specializing in the research, development, and production of high-quality load cells and weighing solutions. With a steadfast commitment to precision, reliability, and innovation, we have established ourselves as a trusted partner for industries worldwide.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC5413
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:0-50/100/200/500kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC5413
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:0-50/100/200/500kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
30Day
Quantity:
compression and tension load cell, load cell manufacturers, load cell manufacturer compression and tension load cell, load cell manufacturers, load cell manufacturer compression and tension load cell, load cell manufacturers, load cell manufacturer compression and tension load cell, load cell manufacturers, load cell manufacturer compression and tension load cell, load cell manufacturers, load cell manufacturer compression and tension load cell, load cell manufacturers, load cell manufacturer
Ningbo Saintbond is a leading Chinese load cell manufacturers specializing in the research, development, and production of high-quality load cells and weighing solutions. With a steadfast commitment to precision, reliability, and innovation, we have established ourselves as a trusted partner for industries worldwide.
The Ningbo Saintbond Compression and Tension Load Cell is a high-performance sensor engineered for precise and reliable measurement of both compressive and tensile forces. Designed with robust construction and advanced technology, it ensures exceptional accuracy and long-term stability in demanding industrial environments.

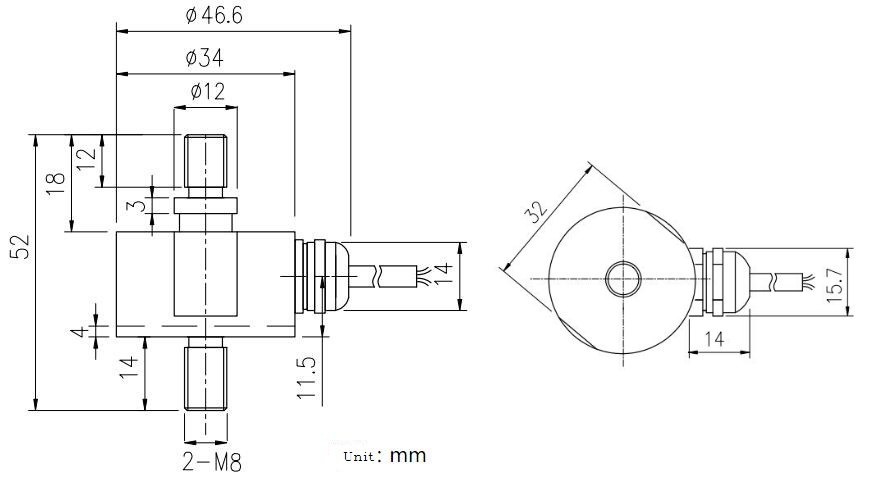

LC5413 Compression and Tension Load Cell Dimenion:mm
LC5413 Compression and Tension Load Cell Technical Parameter:
| Capacity | 0-50/100/200/500kg | Input Impedance | 750±5Ω |
| Rated output | 1.5-2.0 mV/V | Output Impedance | 700±3Ω |
| Non-linearity | 0.5% F.S. | Insulation | >5000MΩ/10VDC |
| Hysteresis | 0.5 % F.S. | Recommended Excitation | 5~10V |
| Repeatability | 0.5 % F.S. | Excitation max | 15V |
| Creep(30min) | 0.1 % F.S. | Safe Load | 120% |
| Temp Effect On Output | 0.05 % F.S./ 10℃ | Ultimate Load Limit | 150% |
| Temp Effect On Zero | 0.05 % F.S./ 10℃ | Protection Class | IP65 |
| Compensated Temp Range | -10~60℃ | Material | Stainless Steel |
| Operating Temp Range | -20~80℃ | Cable Length | ∅4 x 3m |
LC5413 Compression and Tension Load Cell Applications:
þIndustrial Platform Scales
þHopper and Silo Weighing Systems
þOverhead Crane and Lifting Safety Monitoring
þForce Measurement in Material Testing Machines
þTruck and Tank Weighing
þProcess Control and Batching Systems
þIndustrial Platform Scales
þHopper and Silo Weighing Systems
þOverhead Crane and Lifting Safety Monitoring
þForce Measurement in Material Testing Machines
þTruck and Tank Weighing
þProcess Control and Batching Systems
Why Choose Ningbo Saintbond Compression and Tension Load Cell ?
Our load cells are synonymous with precision, durability, and value. We are committed to providing high-quality weighing solutions backed by rigorous quality control and exceptional customer support.
Our load cells are synonymous with precision, durability, and value. We are committed to providing high-quality weighing solutions backed by rigorous quality control and exceptional customer support.
