Commercial Vehicle Scales
WS1110C1
Ningbo Saintbond weigh my car is apply to weighing in the road,These trailer weigher are designed for creating static wheel and axle weighing and dynamic axle weighing stations, commercial vehicle scales with Low Profile Portable Weigh pad.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
（ weigh my car, trailer weigher, commercial vehicle scales weigh my car, trailer weigher, commercial vehicle scales weigh my car, trailer weigher, commercial vehicle scales weigh my car, trailer weigher, commercial vehicle scales weigh my car, trailer weigher, commercial vehicle scales weigh my car, trailer weigher, commercial vehicle scales weigh my car, trailer weigher, commercial vehicle scales）
Introducing our commercial vehicle scales—the modern, heavy-duty solution for accurate weighing wherever your work takes you. WS1110WD commercial vehicle scales engineered for durability and simplicity, they transform any flat surface into an instant, reliable weighing station.
Portable commercial vehicle scales designed specifically for the transportation and logistics industry, these robust pads allow you to check the weight of each axle and the total gross vehicle weight right at your loading bay or depot.
Portable commercial vehicle scales designed specifically for the transportation and logistics industry, these robust pads allow you to check the weight of each axle and the total gross vehicle weight right at your loading bay or depot.
Ningbo Saintbond manufactures weigh my car, trailer weigher, commercial vehicle scales to weigh trucks and other commercial vehicles in a variety of industries, including transportation, logistics, construction, energy, aggregates and custom vehicle modification. Our wide range of weigh my car, trailer weigher, commercial vehicle scales helps customers maintain compliance with legal vehicle weight restrictions, optimize payload to improve efficiency and safety, and save operating costs by tracking inbound and outbound shipments.
Axle scale is a portable, hand-held device which is suitable for both static and dynamic weight on vehicles,commercial vehicle scales are an economical, adaptable and portable solution for vehicle and truck weighing. An commercial vehicle scales measures the individual weight of a vehicle's axles and can provide the total weight of a vehicle. This type of weigh my car is an ideal solution for applications with limited space and temporary or seasonal weighing needs. After one axle is weighed, the vehicle drives forward for the next axle to be weighed. weigh my car allow operators to monitor overloads and underloads, ensuring outgoing product is maximized while maintaining compliance with road weight limits.

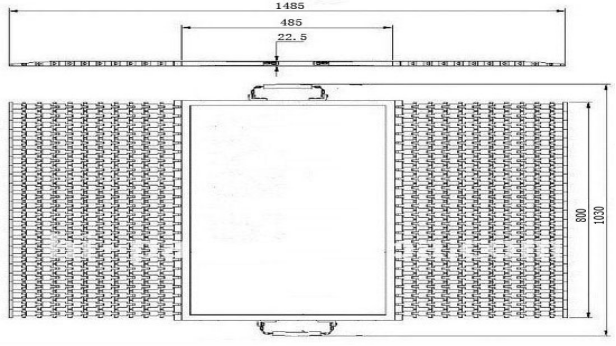

| WS1110C Commercial Vehicle Scales Dimension:mm |
WS1110C Commercial Vehicle Scales Technical Parameter:
| Rated Load:10/15/20/30t (Each Weigh Pad) | Compensated temp.range(℃): -10~+50 |
| Dynamic Error (%F.S): 3~5 (5~10km/h) | Static error (%F.S):0.1~0.3 |
| Static Comprehensive Error(%F.S): 0.3~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Rated Output(Mv/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
| Non-Linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
| Error On Corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
| Zero Balance(%F.S): ±1 | Ultimate overload(%): 150 |
| Excitation Voltage(VDC): 9~15 | Netweight(kg): 28 |
| Recommended Voltage(V): 10 | Defend grade: IP66 |
| Dynamic Comprehensive Error(%F.S): | 1.5 (1~5km/h),3(5~10km/h) |
| Static Comprehensive Error(%F.S): | 0.3~0.5% |
WS1110C Commercial Vehicle Scales Weighing Indicator: (Optional)
 |   | ||
| MWI03 Technical Parameters: ( Dynamic) | MWI01 MWI02 Technical Parameter: ( Static) | ||
| 1:Full range temperature coefficient 5ppm/C; | ◎Wireless Axle wheel/Container Indicator; | ||
| 2:Inner resolution 24 Bit; | ◎Dynamic and static weighing; | ||
| 3:Sampling Ratio 200 times/S; | ◎Built in thermal printer; | ||
| 4:Display refresher rate 12.5 times/s; | ◎Rechargeable battery; | ||
| 5:System nonlinear <0.01%; | ◎LCD display with backlight; | ||
| 6:Sensor excitation power supply DC 5V±2%; | ◎Up to N Platforms for Wireless and 4 for wired; | ||
| 7:Operating temperature 0C--40C; | ◎Over Load Protection and alarm; | ||
| 8:Power consumption (not including sensor): 70mA(under condition of no printing and turning off the backlight), 1000mA(when print); | ◎Portable & watertight case; | ||
| ◎Indicators for measuring axle; | |||
| 9:Power supply: with 6V/7AH lead-acid maintenance-free battery and also can be connected to. | ◎Thermal printer is built in; | ||
| 10:There are tow types single channel and dual channel, and dual channel type can detect vehicle load coefficient; | ◎Possible to use Weight-In-Motion mode and Static mode; | ||
