Column Weigh Cells
LC464
LC464 Column Canister Weigh Cells – Heavy-duty compression load cell with robust steel construction, ideal for industrial scales and silo weighing. Capacity 3000-6000kN, Hign accuracy , IP67/IP68 protection. High resistance to side loads, optional analog/digital output. Perfect for harsh environments.
Quantity:
LC464 Column Canister Weigh Cells – Heavy-duty compression load cell with robust steel construction, ideal for industrial scales and silo weighing. Capacity 3000-6000kN, Hign accuracy , IP67/IP68 protection. High resistance to side loads, optional analog/digital output. Perfect for harsh environments.
✅ LC464 Column Canister weigh cells are available in the capacities 3000kN to 6000kN.
✅ Canister Weigh cells with alloy steel/Stainless steel construction,hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making it lightning protected in all kinds of environments.
✅ Column structure, anti-reversal design,good self-aligning ability, rocker load cell suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.
✅ Safe and anti-explosive product,can be used in atrocious environment and hazardous areas. ( Column load sensor, Canister load sensor, Column Canister load sensor )

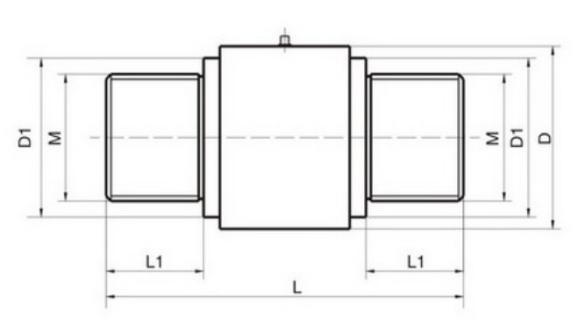

LC464 Column Weigh Cells Dimension:
| Size/Capacity | D | D1 | L | L1 | M |
| ( kN) | ( mm ) | ||||
| 3000kN | 215 | 188 | 440 | 120 | M170×6 |
| 4000kN | 240 | 214 | 440 | 120 | M180×6 |
| 5000kN | 265 | 230 | 440 | 120 | M200×6 |
| 6000kN | 265 | 230 | 440 | 120 | M220×6 |
LC464 Column Weigh Cells Technical Parameter:
| Capacity: | 3000/4000/5000/6000kN | Insulation Resistance: | >2000MΩ |
| Accuracy: | 2m V/V | Temperature Effect On Sensitivity: | <0.05%FS/10℃ |
| Non-linearity: | ≤0.1%FS | Temperature Effect On Zero Balance: | <0.05%FS/10℃ |
| Repeatability: | ≤0.05%FS | Reference Excitation Voltage: | 10V(DC) |
| Hysteresis: | ≤0.1% | Nominal Range Of Excitation Vol.: | 6~12V(DC) |
| Input Resistance: | 380Ω | Service Temperature Range: | -30~70℃ |
| Output Resistance: | 350Ω | Safe Load Limit: | 120%FS |
