Column Type Load Cell
LC418M
Weighing Column Type Load Cell / strain gauge load cell high-precision load cell designed for heavy-duty industrial weighing. Features robust stainless steel construction, IP67+ protection, and capacities from 7.5t to 300t, 100 ton load cell price. Ideal for tank, silo, and hopper scales. Provides accurate, reliable measurements with excellent overload protection. Easy installation, long-term stability. Perfect for process control & bulk weighing.
Quantity:
Weighing Column Type Load Cell / strain gauge load cell high-precision load cell designed for heavy-duty industrial weighing. Features robust stainless steel construction, IP67+ protection, and capacities from 7.5t to 300t, 100 ton load cell price. Ideal for tank, silo, and hopper scales. Provides accurate, reliable measurements with excellent overload protection. Easy installation, long-term stability. Perfect for process control & bulk weighing. ( column type load cell, strain gauge load cell, 100 ton load cell price )
LC418 Column Type Load Cell Features:
✅ LC418 Column Type Load Cell is a alloy steel /stainless steel self centering rocker compression load cell with complete hermetic sealing.
✅ Upper and lower inhibitor design, easy to installation.
✅ Dynamic respond, and super capacity for anti-overload.
✅ It is a perfect fit for use in harsh industrial environments. Application for Weighbridges, hoppers, tanks and silos scale, explosion-proof truck scale, weighbridge, weighing systems.
LC418 Column Type Load Cell Dimension:mm
| Cap./Size | H1 | H2 | H3 | H4 | H5 | H6 | D1 | D2 |
| ( t ) | ( mm ) | |||||||
| 7.5t | 89 | 44 | 17 | 23 | 11 | 6 | 28 | 65 |
| 15t | 89 | 44 | 17 | 23 | 11 | 6 | 28 | 65 |
| 22.5t | 89 | 44 | 17 | 23 | 11 | 6 | 28 | 65 |
| 30t | 140 | 70 | 26 | 28 | 13 | 6.5 | 39 | 81 |
| 40t | 150 | 75 | 31 | 33 | 13 | 11.7 | 39 | 81 |
| 50t | 178 | 89 | 32 | 34 | 17 | 8.5 | 44 | 99 |
| 100t | 178 | 89 | 38.5 | 38.5 | 17 | 12 | 62 | 141.3 |
| 150t | 210 | 105 | 42.7 | 42.7 | 20.6 | 12.8 | 76.2 | 165.1 |
| 300t | 280 | 140 | 55.9 | 55.9 | 25 | 21.5 | 100 | 165.1 |

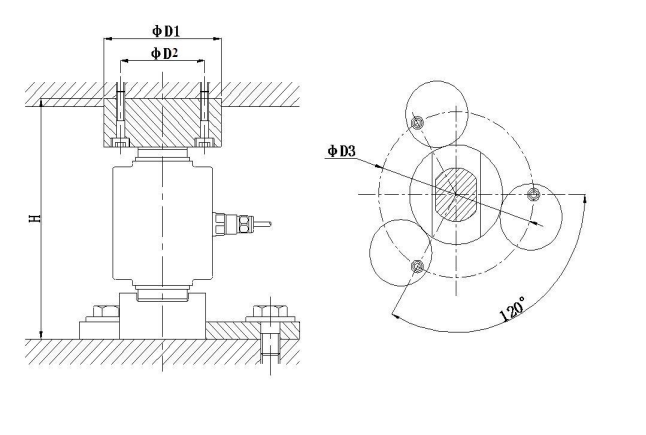

| Cap./Size | H | D1 | D2 | D3 |
| （t） | ( mm ) | |||
| 7.5~22.5t | 150 | 68 | 46 | 148 |
| 30~40t | 200 | 85 | 64 | 165 |
| 50t | 238 | 85 | 64 | 165 |
| 150t | 270 | 156 | 135 | 236 |
LC418 Column Type Load Cell Technical Parameter:
| Rated Load: | 7.5/15/22.5/30/40/50/100/150/300t | ||
| Sensitivity: | (3.0±0.1%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.05% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.017% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.017% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | -A: Alloy Steel, -SS: SS |
| Output Resistance: | 702±2Ω | Cable: | Length=12m~18m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
