Column Cell Sensor
LC462
LC462 Canister cell sensor / Column Canister cell sensor – Heavy-duty compression load cell with robust steel construction, ideal for industrial scales and silo weighing. Capacity 2000kN ~12000kN, Hign accuracy , IP67/IP68 protection. High resistance to side loads, optional analog/digital output. Perfect for harsh environments.
Quantity:
LC462 Canister cell sensor / Column Canister cell sensor – Heavy-duty compression load cell with robust steel construction, ideal for industrial scales and silo weighing. Capacity 2000kN ~12000kN, Hign accuracy , IP67/IP68 protection. High resistance to side loads, optional analog/digital output. Perfect for harsh environments.
✅ LC462 Column Canister cell sensors are available in the capacities 20kN to 2000kN.
✅ Column Canister cell sensor with alloy steel/Stainless steel construction,hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making it lightning protected in all kinds of environments.
✅ Column structure, anti-reversal design,good self-aligning ability, rocker load cell suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.
✅ Safe and anti-explosive product,can be used in atrocious environment and hazardous areas. ( Column cell sensor, Canister cell sensor, Column Canister cell sensor )

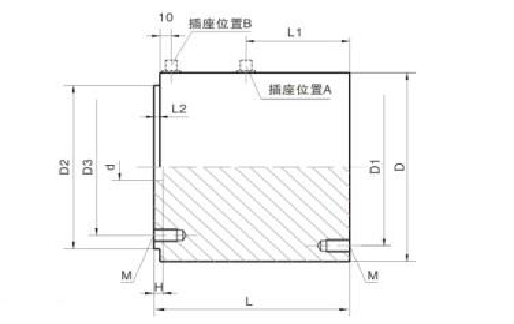

LC462 Column Cell Sensor Dimension:
| Cap./ Size | D | D1 | D2 | D3 | d | L | L1 | L2 | H | M |
| ( kN) | ( mm ) | |||||||||
| 2000kN | 160 | 135 | 138 | 90 | 20 | 133 | 60 | 5 | 8 | 4-M10 |
| 3000kN | 200 | 160 | 178 | 130 | 32 | 160 | 70 | 5 | 8 | 4-M10 |
| 5000kN | 268 | 220 | 230 | 160 | 40 | 210 | 100 | 5 | 10 | 4-M10 |
| 10000kN | 320 | / | 298 | 220 | 25 | 280 | 140 | 15 | 10 | 4-M12 |
| 12000kN | 320 | / | 298 | 220 | 25 | 280 | 140 | 15 | 10 | 4-M12 |
LC462 Column Cell Sensor Parameter:
| Capacity: | 2000/3000/5000/10000/12000kN | ||
| Accuracy: | 0.1%FS | Insulation Resistance: | ＞2000MΩ |
| Sensitivity: | 2.0 ~2.5m V/V | Temperature Effect On Sensitivity: | ＜0.1%FS/ 10℃ |
| Non-Linearity: | ≤0.1%FS | Temperature Effect On Zero Balance: | ＜0.1%FS/ 10℃ |
| Repeatability: | ≤0.05%FS | Reference Excitation Voltage: | 10V (DC) |
| Hysteresis: | ≤0.1%FS | Nominal Range Of Excitation Voltage: | 6~12V(DC) |
| Input Resistance: | 380Ω | Service Temperature: | -30~70℃ |
| Out Resistance: | 350Ω | Safe Load Limit: | 120%FS |
