Checkweigher Load Cell
LC3523
Aluminium checkweigher load cell /weigh checkweigher load cell designed for simplicity, this weigh checkweigher load cell is ready for quick installation. Its standardized mounting dimensions and single-point operation eliminate the need for complex lever systems or multiple sensors. This plug-and-play solution significantly reduces assembly time and cost, streamlining your scale manufacturing process.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3523
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:0.5~25kg
Material:Aluminum Alloy /Alloy Steel / Stainless Steel
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3523
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:0.5~25kg
Material:Aluminum Alloy /Alloy Steel / Stainless Steel
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
Aluminium checkweigher load cell /weigh checkweigher load cell designed for simplicity, this weigh checkweigher load cell is ready for quick installation. Its standardized mounting dimensions and single-point operation eliminate the need for complex lever systems or multiple sensors. This plug-and-play solution significantly reduces assembly time and cost, streamlining your scale manufacturing process. ( checkweigher load cell, weigh checkweigher load cell, aluminium checkweigher load cell )

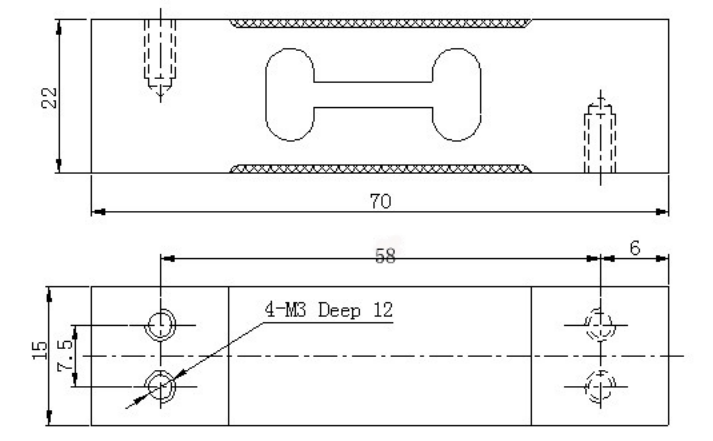

LC3523 Checkweigher Load Cell Dimension:
✅ Size: 70x22x15(mm) Thread hole: 4-M3
✅ Recommended Platform size: 200×200(mm)
✅ It uses 4-core shielded cable (φ4×300mm). The length of the cable can be adjusted according to clients' request, but we suggest to use this standard length to ensure the output precision
LC3523 Checkweigher Load Cell Technical Parameter:
| Rated Load: | 0.5/1/3/5/6/10/15/20/25kg | ||
| Comprehensive Error: | 0.02%F.S | Insulation Resistance: | ≥5000MΩ(100VDC) |
| Rated Output: | 1±0.1 & 2±0.1mV/V | Excitation Voltage: | 9VDC~12VDC |
| Non-Linearity: | 0.02%F.S | Compensated Temp. Range: | -10℃~+40℃ |
| Hysteresis: | 0.02%F.S | Use Temp. Range: | -20℃~+60℃ |
| Repeatability: | 0.01%F.S & 0.02%F.S | Temp. Effect On Zero: | 0.03%F.S/10℃ |
| Creep: | & 0.02%F.S/10min | Temp. Effect On Span: | 0.02%F.S/10℃ |
| Zero Balance: | ±1%F.S | Safe Overload: | 120% |
| Input Resistance: | 405±10Ω | Ultimate Overload: | 150% |
| Output Resistance: | 350±3Ω | Defense Class: | IP65 |
