Cell for Weight Machine
LC3535
This cost-effective single ended cell for weight machine / aluminum cell for weight machine is designed for simple benchtop scales and industrial platforms. Its classic design allows for easy installation, where one end is fixed, and the other bears the load. Single ended cell for weight machine / aluminum cell for weight machineprovides reliable performance and good accuracy for general weighing applications, offering excellent value for money.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3535
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 100 ~500kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3535
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 100 ~500kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
( cell for weight machine, single ended cell for weight machine, aluminum cell for weight machine cell for weight machine, single ended cell for weight machine, aluminum cell for weight machine cell for weight machine, single ended cell for weight machine, aluminum cell for weight machine )
This cost-effective single ended cell for weight machine / aluminum cell for weight machine is designed for simple benchtop scales and industrial platforms. Its classic design allows for easy installation, where one end is fixed, and the other bears the load. Single ended cell for weight machine / aluminum cell for weight machineprovides reliable performance and good accuracy for general weighing applications, offering excellent value for money.

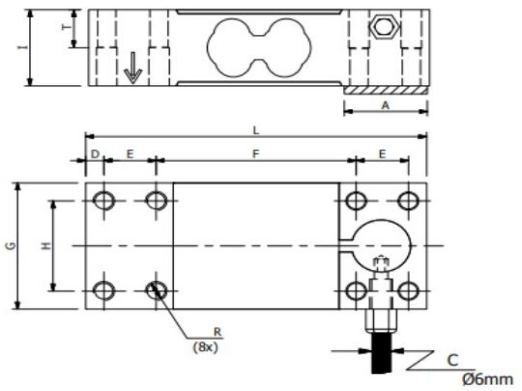

LC3535 Cell for Weight Machine Dimension:
| Cap. | L | D | E | F | G | H | I | T | A | R |
| (kg) | (mm) | |||||||||
| 300/500 | 150 | 8 | 23 | 88 | 63 | 45 | 38 | 19 | 38.5 | M8×1.25 |
LC3535 Cell for Weight Machine Technical Parameter:
| Rated Load: | 100/200/300/500kg | ||
| Sensitivity: | (2.0±0.1%) m V/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 380±10Ω | Element Material: | A,SS: Alloy /Stainless Steel |
| Output Resistance: | 350±3Ω | Cable: | Length=L:3m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
