Car Corner Wweight Scales
WS1181-3
Ningbo Saintbond is a leading provider of high-precision weighing solutions, specializing in the automotive motorsports and performance industries.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Static weighing
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Static weighing
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Delivery
FOB EXW
minimum order
1 piece
Supply Ability
20000piece / Month
Country of Origin
Ningbo,China
Stock Time
15 ~ 45Day
Quantity:
car scales, race car scales for sale, car corner weight scales car scales, race car scales for sale, car corner weight scales car scales, race car scales for sale, car corner weight scales car scales, race car scales for sale, car corner weight scales
Ningbo Saintbond Car Corner Weight Scales - Professional Product Introduction
Ningbo Saintbond is a leading provider of high-precision weighing solutions, specializing in the automotive motorsports and performance industries. Our comprehensive range of car scales is engineered for ultimate accuracy, durability, and technological innovation, serving professional race teams, engineers, and performance enthusiasts worldwide.

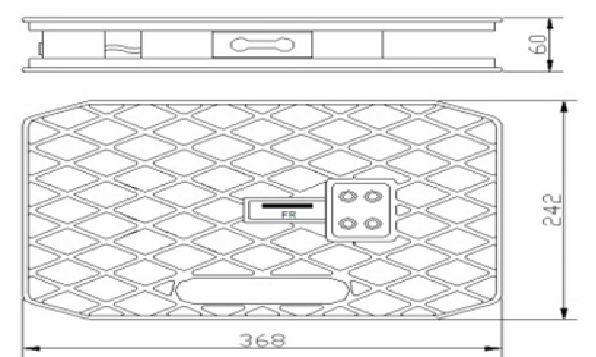

WS1181 Car Corner Weight Scales Dimension:mm
Key Advantages of Saintbond Car Scale Systems:
Exceptional Accuracy & Stability: Premium strain-gauge sensors and advanced filtering algorithms ensure reliable, repeatable results in demanding environments.
Rugged & Durable Design: Constructed from aerospace-grade aluminum or reinforced steel with protective coatings to withstand harsh workshop and track-side conditions.
Intelligent Display & Software: User-friendly color touchscreen interfaces with multi-vehicle/profile data storage, customizable units, and intuitive setup guides.
Global Support & Service: We provide comprehensive technical support, calibration services, and customized solutions for teams worldwide.
Exceptional Accuracy & Stability: Premium strain-gauge sensors and advanced filtering algorithms ensure reliable, repeatable results in demanding environments.
Rugged & Durable Design: Constructed from aerospace-grade aluminum or reinforced steel with protective coatings to withstand harsh workshop and track-side conditions.
Intelligent Display & Software: User-friendly color touchscreen interfaces with multi-vehicle/profile data storage, customizable units, and intuitive setup guides.
Global Support & Service: We provide comprehensive technical support, calibration services, and customized solutions for teams worldwide.
Ningbo Saintbond's range of professional car scales, with our flagship car corner weight scales at the core, combines mechanical precision with smart digital technology. They are indispensable tools for any serious competitor aiming to translate precise data into a performance advantage on the track. When you are looking for high-quality race car scales for sale, Saintbond offers reliable, accurate, and innovative solutions to meet the highest demands of motorsport engineering.
WS1181 Car Corner Weight Scales Key Features:
1: One set consists of 4 weigh pads and 1dispaly indicator;
2: Platform Size:368x242x60mm;
3: Material: Aluminum Alloy;
4: Fully calibrated system (calibrated using certified M1 weights with full traceability to national standards);
5: Measures & displays: total weight, cross weight, front axle weight, rear axle weight, RH/LH weight, individual corner weights (% also shown);
6: Ultra precise load cells with 0.05% accuracy;
7: Displays to 4 significant places;
8: Their large, easy-to-read screen displays front and rear wheel weights, total weight, percentages;
9: Large backlit screen for easy reading, even in direct sunlight;
10: Control panel housed in an attractive ABS lockable flight line case;
11: Cordless - supplied with Ni-Cad internal batteries with 12-hour battery life;
12: Supplied with 230V mains charger/power cable & with flexible connecting pad cables;
13: Centre of gravity automatic calculation function with asterisk display on the screen to show the exact car center of gravity point (unique feature);
14: Selectable display in either Kgs or lbs;
15: Max weight: 500Kg per pad, 2000Kg in total;
16: USB & parallel printer output ports;
17: Designed to meet strict quality control standards;
18: 50:50 Driving, Target weight calculation for each wheel;
19: 12-month warranty as standard;
1: One set consists of 4 weigh pads and 1dispaly indicator;
2: Platform Size:368x242x60mm;
3: Material: Aluminum Alloy;
4: Fully calibrated system (calibrated using certified M1 weights with full traceability to national standards);
5: Measures & displays: total weight, cross weight, front axle weight, rear axle weight, RH/LH weight, individual corner weights (% also shown);
6: Ultra precise load cells with 0.05% accuracy;
7: Displays to 4 significant places;
8: Their large, easy-to-read screen displays front and rear wheel weights, total weight, percentages;
9: Large backlit screen for easy reading, even in direct sunlight;
10: Control panel housed in an attractive ABS lockable flight line case;
11: Cordless - supplied with Ni-Cad internal batteries with 12-hour battery life;
12: Supplied with 230V mains charger/power cable & with flexible connecting pad cables;
13: Centre of gravity automatic calculation function with asterisk display on the screen to show the exact car center of gravity point (unique feature);
14: Selectable display in either Kgs or lbs;
15: Max weight: 500Kg per pad, 2000Kg in total;
16: USB & parallel printer output ports;
17: Designed to meet strict quality control standards;
18: 50:50 Driving, Target weight calculation for each wheel;
19: 12-month warranty as standard;
WS1181 Car Corner Weight Scale Use:
1: Setting up your race car with this system will show you how alterations in geometry, ride height & stiffness affect weight distribution
2: Record measurements & once your ideal setup is found, use this system to ensure that on your car is race ready every time
3: Ensure you comply with min/max weight restrictions for your class
4: If your vehicle has been damaged or altered, this is an excellent way of checking how your setup compares with previous readings
1: Setting up your race car with this system will show you how alterations in geometry, ride height & stiffness affect weight distribution
2: Record measurements & once your ideal setup is found, use this system to ensure that on your car is race ready every time
3: Ensure you comply with min/max weight restrictions for your class
4: If your vehicle has been damaged or altered, this is an excellent way of checking how your setup compares with previous readings
WS1181 Car Corner Weight Scale Waring:
The effectiveness of this system is directly related to the way in which it is installed, used & maintained. The user assumes that risk. No warranty, expressed or implied, is made as to its ability to protect against serious injury or death. See instructions for correct installation. If in doubt, consult the manufacturer. Systems can be returned to the Manufacturer for inspection once a year & calibrated every year at a service charge. Contact the manufacturer if the software or hardware is damaged in any way or does not function properly.
The effectiveness of this system is directly related to the way in which it is installed, used & maintained. The user assumes that risk. No warranty, expressed or implied, is made as to its ability to protect against serious injury or death. See instructions for correct installation. If in doubt, consult the manufacturer. Systems can be returned to the Manufacturer for inspection once a year & calibrated every year at a service charge. Contact the manufacturer if the software or hardware is damaged in any way or does not function properly.
