Capacitive Weight Sensor

Capacitive Weight Sensor

LC359
Platform scale load cell / 4 load cell platform scale designed for use in low profile or space restrictive industrial and medical weighing applications. The LC359 range of platform scale load cells are designed to withstand harsh industrial operation whilst offering trade approved levels of accuracy.
Quantity:
Contact Now
add to cart
All Products
Platform scale load cell / 4 load cell platform scale designed for use in low profile or space restrictive industrial and medical weighing applications. The LC359 range of platform scale load cells are designed to withstand harsh industrial operation whilst offering trade approved levels of accuracy. ( capacitive weight sensor, 4 load cell platform scale, platform scale load cell )

LC359 Capacitive Weight Sensor Application:
Capacitive weight sensor / platform scale load cell for platform weighing machines, pallet truck scales, tank and vessel weighing systems, conveyor scales and patient weighing systems such as intensive care beds and wheelchair scales;

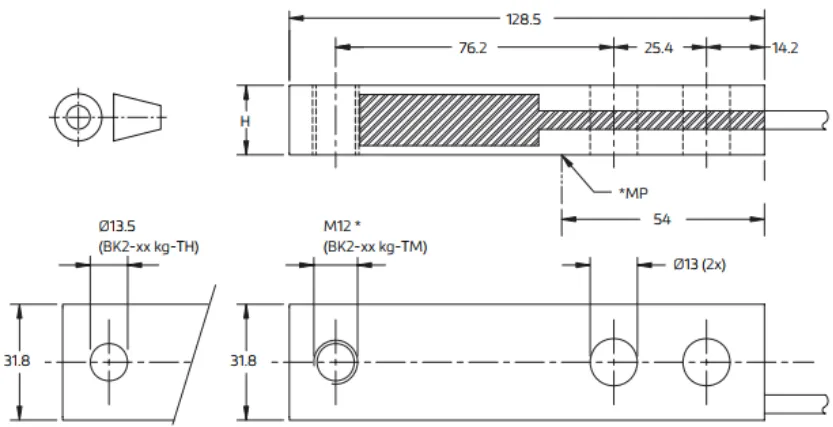

LC359 Capacitive Weight Sensor Dimension: (mm)


TypeHMounting BoltsTorque**
200kg12.7M12 8.890Nm
500kg15.9M12 8.890Nm
1000kg19.1M12 8.890Nm
2000kg25.4M12 10.9120Nm

LC359 Capacitive Weight Sensor Technical Parameter:
Rated Load:200/500/1000/2000kg
Sensitivity:(2.0±0.1%) m V/VOperating Temp. Range:-30~+70℃
Combined Error:±0.02% F.SMaximum Safe Over Load:150%F.S
Creep Error(30min):±0.02% F.SUltimate Over Load:250%F.S
Zero Balance:±1% F.SRecommend Excitation Vol.:10~12V DC
Temp. Effect On Zero:±0.02% F.S/10℃Maximum Excitation Vol.:15V DC
Temp. Effect On Span:±0.02% F.S/10℃Sealing Class:IP67/IP68
Input Resistance:1,100±50ΩElement Material:Alloy Steel/ Stainless Steel
Output Resistance:1,000 ± 2ΩCable:Length=L:6m
Insulation Resistance:≥5000MΩCitation:GB/T7551-2008/ OIMLR60
Packet Weight:0.67 (200kg), 0.74 (500kg), 0.82 (1,000kg), 0.99(2,000kg)
