Cantilever Load Cell

LC3007

Load cells for platform scales / load cell 1000 kg price– Robust, high-precision sensor for industrial weighing (tanks, hoppers, conveyors). Stainless steel, IP67 rated, 0.1-10t capacity. mV/V or 4-20mA output. CE/OIML certified. Reliable in harsh conditions. Easy installation. Ningbo Saintbond load cells for platform scales manufacturer.

Quantity:

Contact Now

add to cart

Load cells for platform scales / load cell 1000 kg price– Robust, high-precision sensor for industrial weighing (tanks, hoppers, conveyors). Stainless steel, IP67 rated, 0.1-10t capacity. mV/V or 4-20mA output. CE/OIML certified. Reliable in harsh conditions. Easy installation. Ningbo Saintbond load cells for platform scales manufacturer. ( cantilever load cell, load cells for platform scales, load cell 1000 kg price)

LC3007 Cantilever Load Cell Specification:

✅ LC3007 load cells are available in the capacities:

110/220/550/1100/2200/4400kg(500/1250/2500/5000/10000lb).

✅ Alloy steel or stainless steel ,sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environment.

✅ Single shear beam, easy for installation, suitable for electronic platform scales, hopper scales and other electronic weighing devices.

✅ Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.

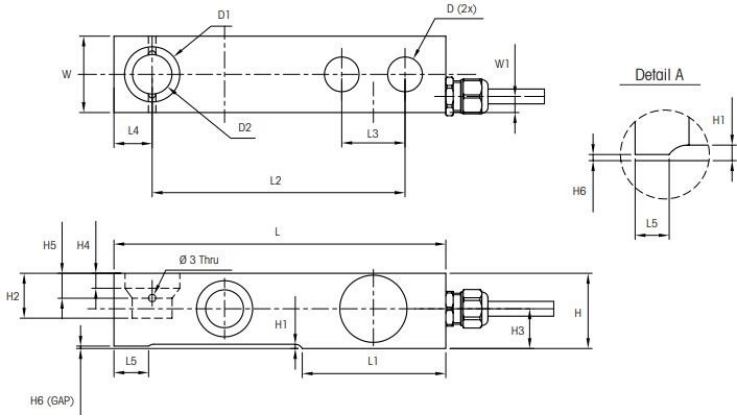

LC3007 Cantilever Load Cell Dimensional Drawings mm [in]

Cap.

D(2x)

Kg(lb)

mm(in)

110-550

(250-1250)

(0.51)

22.2

(0.88)

15.9

(0.62)

30.2

(1.19)

1.8

(0.07)

17.3

(0.68)

(0.63)

4.8

(0.19)

7.9

(0.31)

0.38

(0.015)

133.4

(5.25)

57.7

(2.27)

101.6

(4.00)

25.4

(1.00)

15.4

(0.61)

6.4

(0.25)

30.7

(1.21)

6.48

(0.26)

1100

(2500)

(0.51)

22.2

(0.88)

15.9

(0.62)

30.2

(1.19)

1.8

(0.07)

17.3

(0.68)

(0.63)

4.8

(0.19)

7.9

(0.31)

0.51

(0.02)

133.4

(5.25)

57.7

(2.27)

101.6

(4.00)

25.4

(1.00)

15.4

(0.61)

6.4

(0.25)

30.7

(1.21)

6.48

(0.26)

2200

(5000)

(0.51)

22.2

(0.88)

15.9

(0.62)

36.6

(1.44)

(0.16)

22.9

(0.90)

20.3

(0.80)

9.5

(0.37)

12.7

(0.50)

(0.16)

136.6

(5.38)

57.9

(2.28)

101.6

(4.00)

25.4

(1.00)

18.4

(0.72)

36.7

(1.44)

6.48

(0.26)

4400

(10000)

19.3

(0.76)

34.9

(1.38)

22.2

(0.88)

42.9

(1.69)

2.3

(0.09)

(0.79)

29.3

(1.16)

(0.43)

17.4

(0.68)

2.3

(0.09)

171.5

(6.75)

73.8

(2.91)

133.3

(5.25)

38.1

(1.50)

21.5

(0.84)

42.9

(1.69)

6.48

(0.26)

LC3007 Cantilever Load Cell Technical Parameter:

Rated Load:	110/220/550/1100/2200/4400kg
Rated Load:	500/1250/2500/5000/10000lb
Sensitivity:	(2.0±0.1%) m V/V,	Operating Temp. Range:	-30~+70℃
Combined Error:	±0.02% F.S	Max. Safe Over Load:	150%F.S
Creep Error(30min):	±0.02% F.S	Ultimate Over Load:	250%F.S
Zero Balance:	±1% F.S	Recommend Excitation:	10~12V DC
Temp. Effect On Zero:	±0.02% F.S/10℃	Maximum Excitation:	15V DC
Temp. Effect On Span:	±0.02% F.S/10℃	Sealing Class:	IP67/IP68
Input Resistance:	385±5Ω	Element Material:	A,SS: Alloy /Stainless Steel
Output Resistance:	352±2Ω	Cable:	Length=L:3m
Insulation Resistance:	≥5000MΩ	Citation:	GB/T7551-2008/ OIML R60
