Cable Tension Transducer
LCS4005
Wire rope tension load cells / rope cable tension sensor specially designed to measure the tension force applied to a running cable or rope. The removable center sheave allows you an easy installation without cutting the winch lines.
The Saintbond clamps on cables for wire rope hoist, elevator and crane overload prevention and slackline detection. Installs in minutes with screwdriver and Allen wrench.Installation is simplicity itself. Clamp the Saintbond directly onto a slack hoist or crane wire rope quickly without severing rope or interrupting service.
The Saintbond clamps on cables for wire rope hoist, elevator and crane overload prevention and slackline detection. Installs in minutes with screwdriver and Allen wrench.Installation is simplicity itself. Clamp the Saintbond directly onto a slack hoist or crane wire rope quickly without severing rope or interrupting service.
Quantity:
Wire rope tension load cells / rope cable tension sensor specially designed to measure the tension force applied to a running cable or rope. The removable center sheave allows you an easy installation without cutting the winch lines. (wire rope tension load cell, rope cable tension sensor, cable tension transducer )
The Saintbond clamps on cables for wire rope hoist, elevator and crane overload prevention and slackline detection. Installs in minutes with screwdriver and Allen wrench.Installation is simplicity itself. Clamp the Saintbond directly onto a slack hoist or crane wire rope quickly without severing rope or interrupting service.
LCS4005 Cable Tension Transducer Feature:
✅ Wide range of cables (Ø from 6 up to 115 mm);
✅ Protection class : IP67;
✅ Complete range of electronics and load limitation devices;
✅ Custom-made manufacturing;
✅ Cable length : 1~20m;
✅ Wide range of cables (Ø from 6 up to 115 mm);
✅ Protection class : IP67;
✅ Complete range of electronics and load limitation devices;
✅ Custom-made manufacturing;
✅ Cable length : 1~20m;

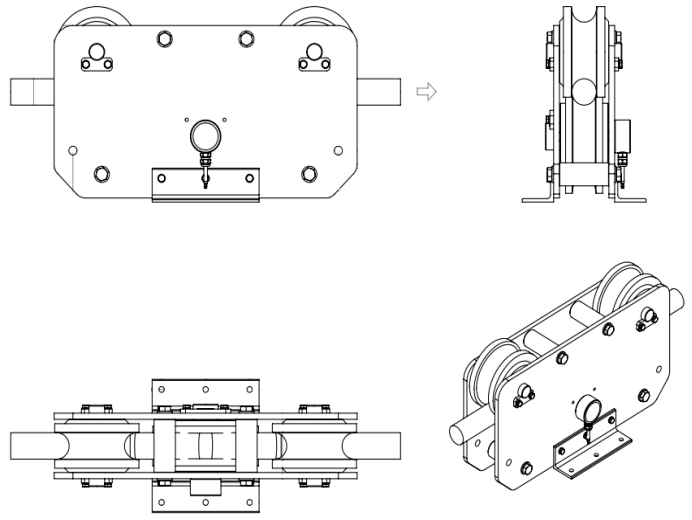

LCS4005 Cable Tension Transducer Dimension: mm
Note:The capacity and dimensions can be customized according to customer requirements;
LCS4005 Cable Tension Transducer Technical Parameter:
| Rated Load: | 0.5/10/15/20/25/30/40/50/60/80/100t | ||
| Sensitivity: | (1.0±0.5%) m V/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | A/SS:Alloy / Stainless Steel |
| Output Resistance: | 702±3Ω | Cable: | Length=L:1~20m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
