Bolt Load Cell
LC6006
The LC6006 Bolt Load Cell is a full-bridge, bonded foil strain gauge force sensor designed for press fit applications. Constructed of stainless steel, the robust construction offers repeatable, high accuracy monitoring of press fit operations in assembly machinery. The low-profile design enables the LC6006 hydraulic load cell to be easily embedded into assembly machines. Available in a range of standard capacities from 2kN through to 100kN;
Quantity:
The LC6006 Bolt Load Cell is a full-bridge, bonded foil strain gauge force sensor designed for press fit applications. Constructed of stainless steel, the robust construction offers repeatable, high accuracy monitoring of press fit operations in assembly machinery. The low-profile design enables the LC6006 hydraulic load cell to be easily embedded into assembly machines. Available in a range of standard capacities from 2kN through to 100kN; the LC6006 hydraulic load cell /50k load cell is configured for compression force measurement.The mV/V output from the transducer provides excellent long-term stability.The LC6006 bolt load cell can be supplied with standard cable configurations or with industry standard connectors. ( bolt load cell, hydraulic load cell, 50k load cell )

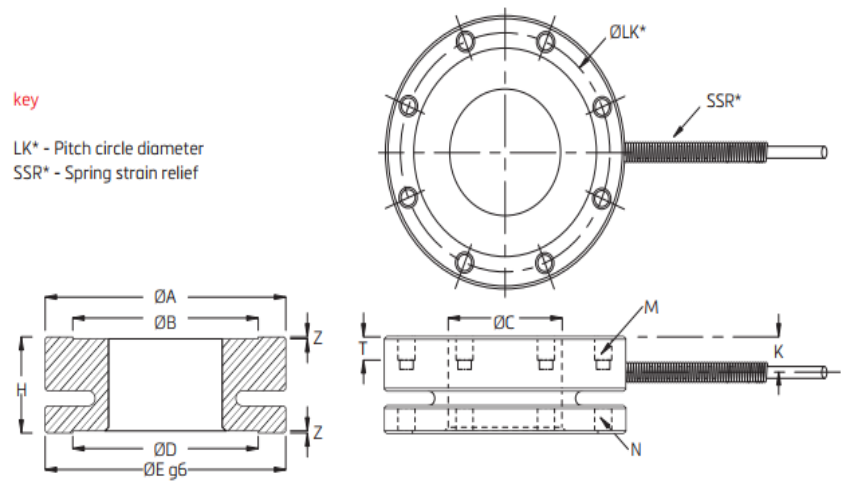

LC6006 Bolt Load Cell Dimension:
| Cap.(kN) | A | B | C | D | E | H | K | Z | M | T | LK | N |
| 2/5/10/20 | 69.7 | 54 | 33 | 54 | 70 | 25 | 9 | 0.5 | M5,8×45° | 6 | 62 | M5,8×45° |
| 50/100 | 111.5 | 97 | 70 | 97 | 112 | 35 | 13 | 1.1 | M6,5×45° | 10 | 104 | M6,5×45° |
LC6006 Bolt Load Cell Technicla Parameter:
| Rated Load: | 2/5/10/20/100kN | ||
| Sensitivity: | 1±20% (Voltage, current loop or digital output versions are available on request) | ||
| Combined Error: | ±0.02% F.S | Operating Temp. Range: | -30~+70℃ |
| Creep Error(30min): | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Zero Balance: | ±1% F.S | Ultimate Over Load: | 200%F.S |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Excitation voltage: | 5(recommended), 10 (max) |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | Alloy / Stainless Steel |
| Output Resistance: | 702±2Ω | Cable: | Length=L:13m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
