Biaxial Load Cell
LCX2002
Biaxial Load Cell: Measure Force in Two Planes Simultaneously
Our biaxial load cell / miniature multi axis load cell accurately measures tension and compression forces along two perpendicular axes within a single, compact unit. LCX2002 Biaxial Load Cell / different types of sensors used in robots ppt robust design is ideal for applications requiring multi-directional force feedback, such as robotics, material testing, and advanced structural monitoring. By consolidating measurement into one sensor, it simplifies system design, reduces installation space, and provides critical data for precise control and safety analysis.
Our biaxial load cell / miniature multi axis load cell accurately measures tension and compression forces along two perpendicular axes within a single, compact unit. LCX2002 Biaxial Load Cell / different types of sensors used in robots ppt robust design is ideal for applications requiring multi-directional force feedback, such as robotics, material testing, and advanced structural monitoring. By consolidating measurement into one sensor, it simplifies system design, reduces installation space, and provides critical data for precise control and safety analysis.
Quantity:
Biaxial Load Cell: Measure Force in Two Planes Simultaneously
Our biaxial load cell / miniature multi axis load cell accurately measures tension and compression forces along two perpendicular axes within a single, compact unit. LCX2002 Biaxial Load Cell / different types of sensors used in robots ppt robust design is ideal for applications requiring multi-directional force feedback, such as robotics, material testing, and advanced structural monitoring. By consolidating measurement into one sensor, it simplifies system design, reduces installation space, and provides critical data for precise control and safety analysis. ( Biaxial Load Cell, miniature multi axis load cell, different types of sensors used in robots ppt )
The miniature multi axis load cell can measure the force in two directions at the same time; LCX2002 Biaxial Load Cell has the characteristics of small measuring range, stable performance and small volume. It is applicable to robot manufacturing, automation equipment, intelligent automation control equipment, intelligent robot, polishing equipment, workpiece stress state analysis, component working process stress analysis, etc.

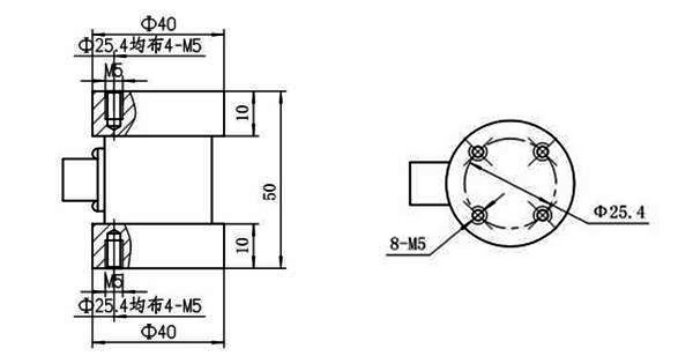

LCX2002 Biaxial Load Cell Dimension:
✅ The overall dimensions can be designed and customized according to customer requirements.
LCX2002 Biaxial Load Cell Technical Parameter：
| Capacity | X:5kg～50kg | Temp. Effect On Output: | ≤±0.03％F.S/10℃ |
| Y:5kg～50kg | Temp. Effect On Zero: | ≤±0.03％F.S/10℃ | |
| Zero Balance: | ≤±1%F.S | Temp. Compensated: | -20℃～+60℃ |
| Rated Output: | 1.0～2.0mV/V | Input Impedance: | 380±30Ω |
| Nonlinearity: | ≤±0.3%F.S | Output Impedance: | 350±2Ω |
| Hysteresis | ≤±0.3%F.S | Insulation resistance | ≥5000MΩ/100VDC |
| Repeatability: | ≤±0.3%F.S | Safe Overload: | 120％F.S |
| Creep(30Minutes): | ≤±0.3%F.S/30min | Supply bridge voltage | 5～12VDC(Recommend10VDC) |
| Mutual interference | ≤±2.5%F.S | Material | Alloy/stainless steel |
