Bending Load Cell
LC338M
LC338 Bending Load Cell – High-precision sensor for industrial weighing. Robust stainless steel construction, excellent overload protection. Measures static/dynamic loads up to 10~1000kg. IP67+ rated, compact design. Ideal for silos, conveyors, and process control. Accuracy: ±0.03% FS. Easy installation, long-term stability.
Quantity:
LC338 Bending Load Cell Products Specification:
LC338 Bending Load Cell – High-precision sensor for industrial weighing. Robust stainless steel construction, excellent overload protection. Measures static/dynamic loads up to 10~1000kg. IP67+ rated, compact design. Ideal for silos, conveyors, and process control. Accuracy: ±0.03% FS. Easy installation, long-term stability. ( bending load cell, thames side t66 load cell datasheet, 1000kg load cell )
✅ LC338 bending load cells are available in the capacities 10kg to 1000kg. And the customized cap.is available by request.
✅ Alloy steel construction,welded with bellow,potted by adhesive inside,oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.
✅ Single point with bellow, easy installation,suitable for crane scales,mechanical conversion scales,hopper scales and other electronic weighing devices.
✅ Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.

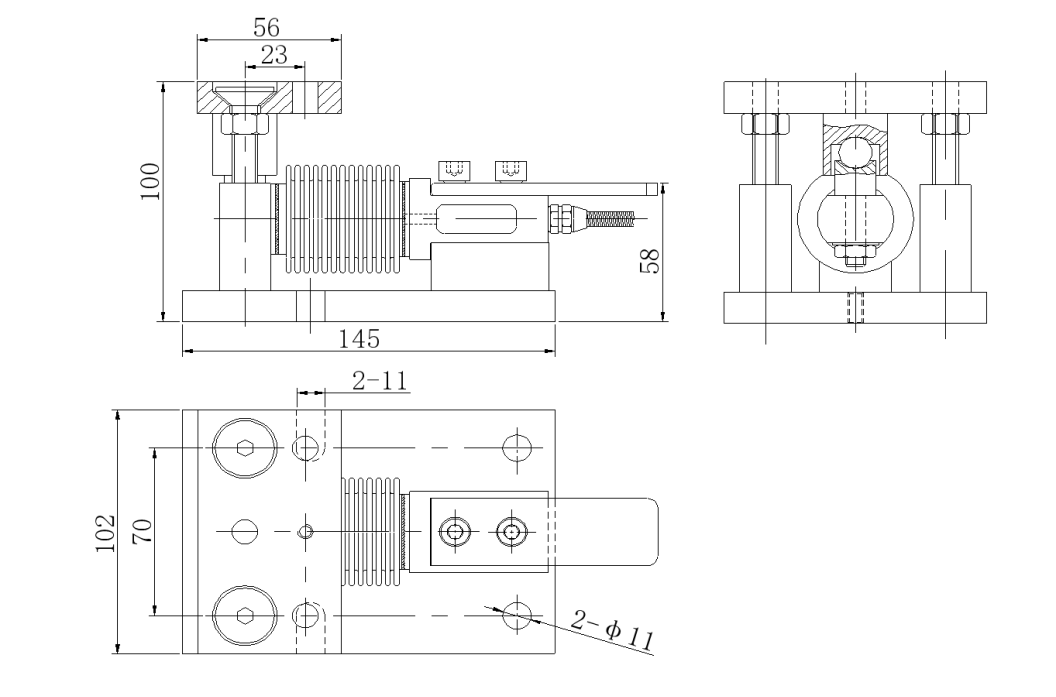

LC338 Bending Load Cell Dimensions Unit: mm
LC338 Bending Load Cell Technical Parameter:
| Rated Load: | 10/20/30/50/75/100/150/200/250/300/500/700/1000kg | ||
| Sensitivity: | (2.0±0.1%) m V/V | Operating Temp. Range: | -10~+70℃ |
| Combined Error: | ±0.02% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.03% F.S | Ultimate Over Load:: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP68 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy Steel, Stainless Steel |
| Output Resistance: | 351±2Ω | Cable: | Length=L:3m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
