Beam Type Load Cell
LC348M
Beam Type Load Cell / load cells for tanks – Robust, high-precision sensor for industrial weighing (tanks, hoppers, conveyors). Stainless steel, IP67 rated, 0.5-50t capacity. mV/V or 4-20mA output. CE/OIML certified. Reliable in harsh conditions. Easy installation.
Quantity:
Beam Type Load Cell / load cells for tanks – Robust, high-precision sensor for industrial weighing (tanks, hoppers, conveyors). Stainless steel, IP67 rated, 0.5-50t capacity. mV/V or 4-20mA output. CE/OIML certified. Reliable in harsh conditions. Easy installation. ( sqb a load cell, beam load cell, cattle load cells )
Beam Type Load Cell / load cells for tanks – Ideal for industrial weighing in tanks, silos, conveyors, and hoppers. BBeam Type Load Cell / silo load cell installation Suitable for harsh environments with high durability and accuracy.
LC348M Beam Type Load Cell Products Specification:
✅ LC348M Beam Type Load Cell /sqb a load cells are available in the capacities 0.1t to 3t.
✅ Alloy steel, sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environment.
✅ Single shear beam, easy for installation, suitable for electronic platform scales, hopper scales and other electronic weighing devices.
✅ Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.

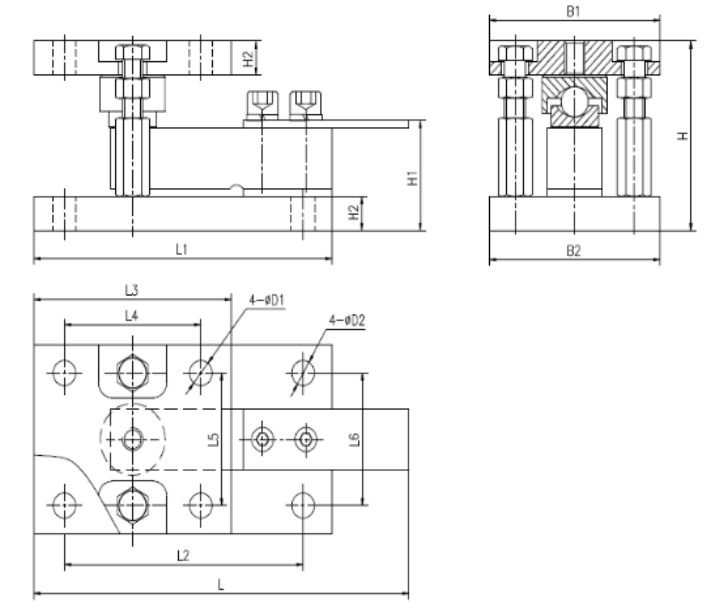

LC348M Beam Type Load Cell Dimensions Unit:mm
| Cap. | Dimension (mm) | |||||||||||||
| (Ton) | H | H1 | H2 | B1 | B2 | D1 | D2 | L | L1 | L2 | L3 | L4 | L5 | L6 |
| 0.25~2 | 106 | 58 | 18 | 100 | 100 | 13 | 13 | 210 | 175 | 140 | 116 | 80 | 70 | 70 |
| 45721 | 135 | 73 | 23 | 160 | 160 | 17 | 17 | 270 | 235 | 200 | 150 | 100 | 90 | 90 |
| 7.5 | 186.3 | 93.3 | 38 | 180 | 180 | 26 | 26 | 345.2 | 310 | 250 | 210.4 | 150.4 | 110 | 110 |
| 10 | 186.3 | 93.3 | 28.5 | 180 | 180 | 26 | 26 | 345.2 | 310 | 250 | 210.4 | 150.4 | 110 | 110 |
LC348M Beam Type Load Cell Technical Parameter:
| Rated Load: | 0.1/0.2/0.3/0.5/1/2/3/5/7.5/10t | ||
| Sensitivity: | (2.0±0.1%) m V/V, | Operating Temp. Range: | -30~+70℃ |
| (3.0±0.1%) mV/V | |||
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 385±5Ω | Element Material: | A,SS: Alloy /Stainless Steel |
| Output Resistance: | 352±2Ω | Cable: | Length=L:3m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
