Bathroom Scale Load Cell
LC3597

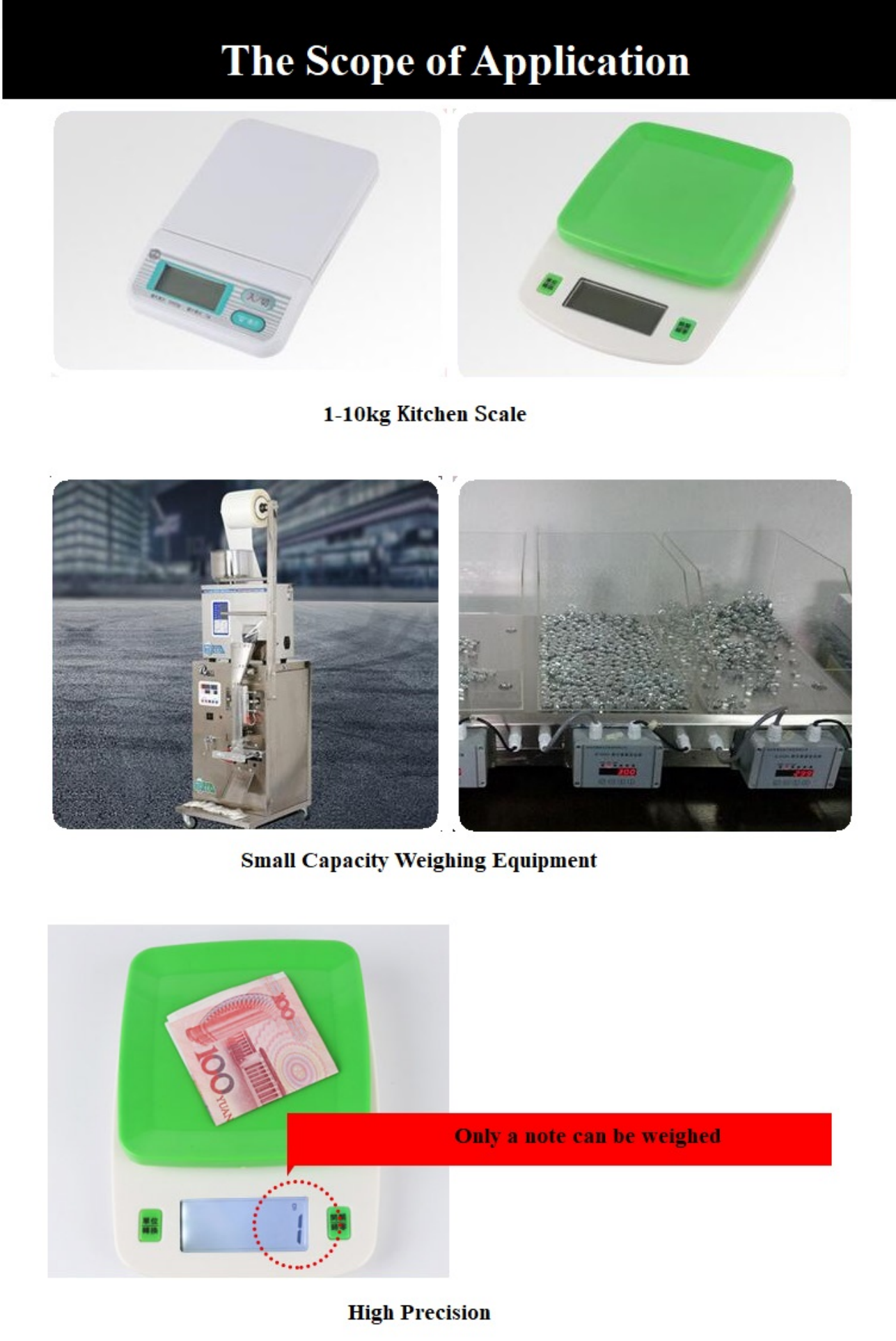

Our aluminum bathroom scale load cell excels with low deflection, minimal creep, and compensated temperature performance. The strain gauge technology within the parallel beam structure guarantees highly accurate signal output. This single ended bathroom scale load cell is built for integration into precision instruments, medical devices, and testing equipment that require dependable force feedback.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3597
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 1 ~10kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3597
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 1 ~10kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
Our aluminum bathroom scale load cell excels with low deflection, minimal creep, and compensated temperature performance. The strain gauge technology within the parallel beam structure guarantees highly accurate signal output. This single ended bathroom scale load cell is built for integration into precision instruments, medical devices, and testing equipment that require dependable force feedback. ( bathroom scale load cell, aluminum bathroom scale load cell, single ended bathroom scale load cell )

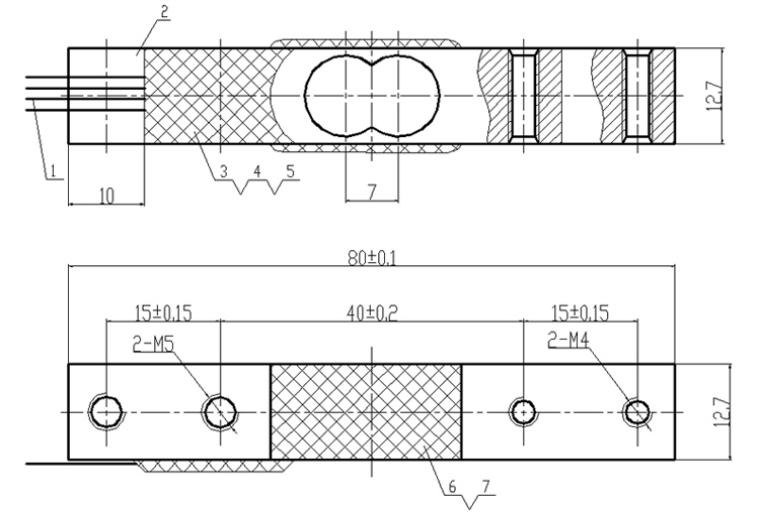

LC3597 Bathroom Scale Load Cell Dimension:
LC3597 Bathroom Scale Load Cell Technical Parameter:
| Rated Load: | 1~10kg | Rated Output: | -0.15±0.05mV/V |
| Rated Output: | 1±0.1mV/V | Output Resistance: | 1000±5%Ω |
| Non-Linearity: | 0.05%F.S | Four angle error: | 0.05%F.S |
| Hysteresis: | 0.05%F.S | Temp. Effect On Zero: | 0.05%F.S/10℃ |
| Repeatability: | 0.05%F.S | Temp. Effect On Span: | 0.5%F.S/10℃ |
| Creep: | & 0.05%F.S/3min | Dimension | 80*12.7*12.7 |
