Batching Plant Load Cell
LC7003M
LC7003M Weighing modules and Batching Plant Load Cells enable the quick and safe conversion of tanks, vessels, silos, hoppers, conveyors, or other structural systems into scales.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC7003M
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:110~4400kg
Material:Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC7003M
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:110~4400kg
Material:Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Delivery
exw,fob
minimum order
2
Supply Ability
20000 / Month
Country of Origin
Ningbo, China
Quantity:
Batching Plant Load Cell, Weighing module, Shear Beam Load Cell Batching Plant Load Cell, Weighing module, Shear Beam Load Cell Batching Plant Load Cell, Weighing module, Shear Beam Load Cell Batching Plant Load Cell, Weighing module, Shear Beam Load Cell
Weighing modules and Batching Plant Load Cells enable the quick and safe conversion of tanks, vessels, silos, hoppers, conveyors, or other structural systems into scales. LC3007 Weighing module features ensure correctscale system installation, right from the start. Weighing module do not compromise on safety – all safety features are built-in. The Batching Plant Load Cell design providesthe highest level of weighing accuracy.

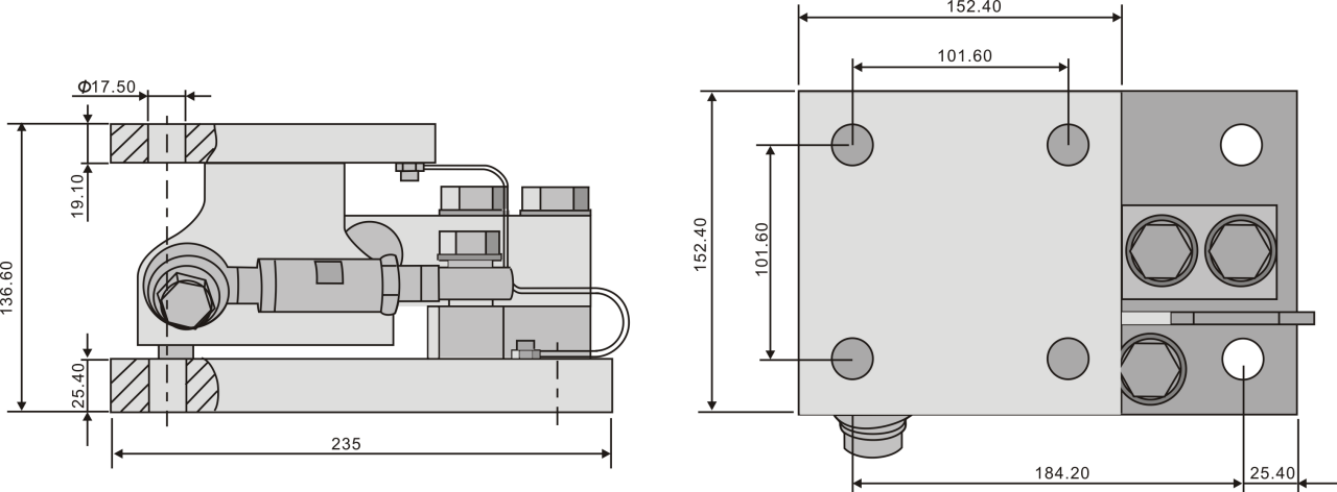

LC3007 Weighing Module Dimension: In mm. 1mm=0.03937inches
LC3007 Batching Plant Load Cell Technical Parameter:
| Rated Load: | 110/220/550/1100/2200/4400kg | ||
| Sensitivity: | 1.94mV/V ±0.2% | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 385±5Ω | Element Material: | A,SS: Alloy /Stainless Steel |
| Output Resistance: | 350±2Ω | Cable: | L:3m~10m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIMLR60 |

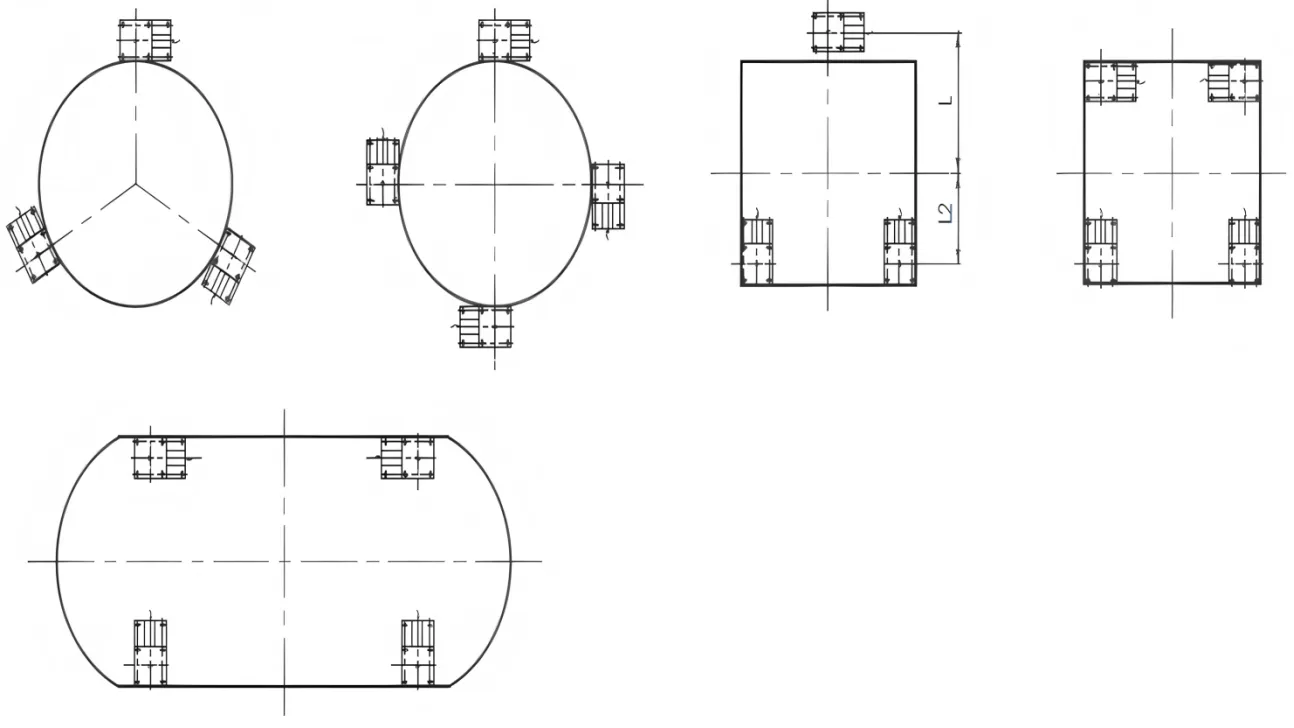

Installation and Layout Diagram of Batching Plant Load Cell:
Note:1: The horizontal pull rod is used to stabilize the horizontal shaking of the material tank during application. For example: mixing plant.
2: Ningbo Saintbond can provide dedicated bottom transition plates to facilitate the connection between modules and embedded foundations.

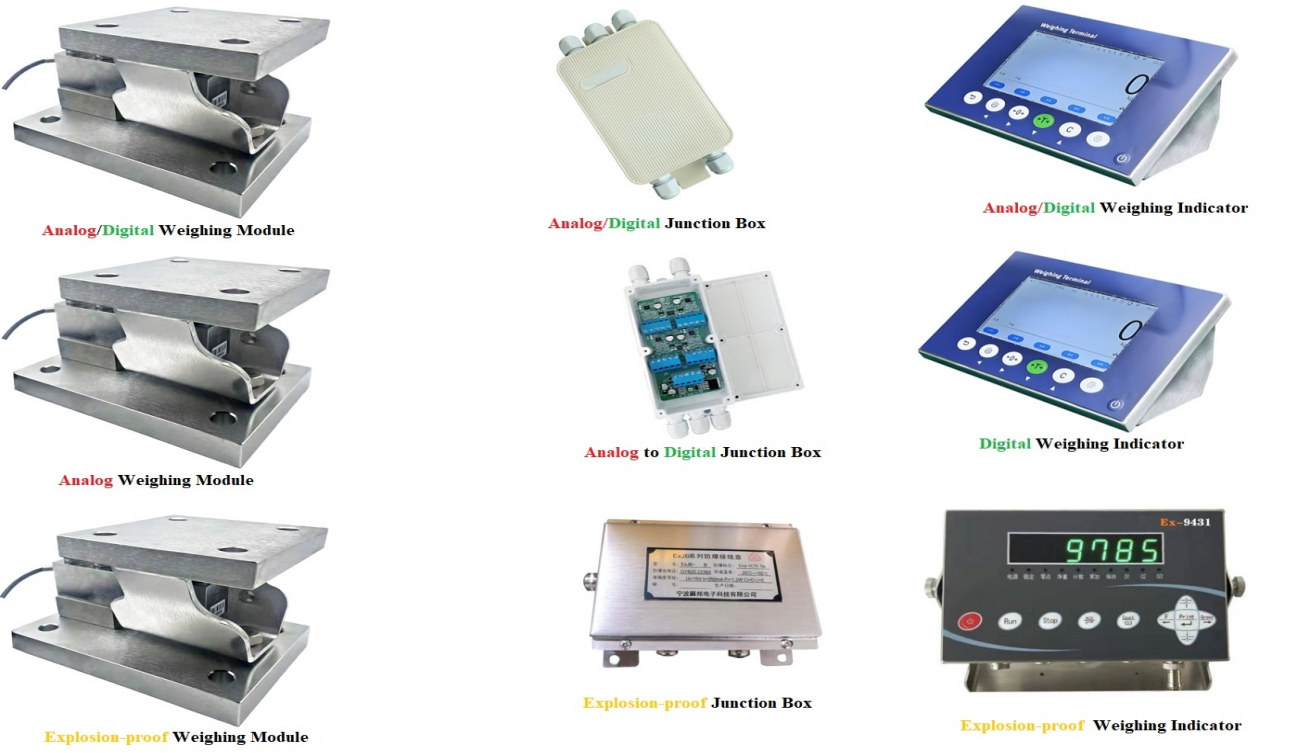

Standard Configuration of Batching Plant Load Cell: ( Optional )
