Balancing Machine Load Sensor
LC3603
The LC3603 Jewelry scale Load Cell / balance machine load sensor is a low capacity strain gauge based load cell and can be used individually in Jewelry scales and balance. The LC3603 Jewelry scale Load Cell / balance machine load sensor is available in the capacities: 0.02,0.05kg. ( balancing machine load sensor, balance machine load sensor, Jewelry scale Load Cell )
LC3603 Balancing Machine Load Sensor Key Features:
✅ Low profile and capacity
✅ Aluminum construction
✅ Capacity: 0.02-0.05kg
✅ Accuracy:0.03%R.O.
LC3603 Balancing Machine Load Sensor Key Features:
✅ Low profile and capacity
✅ Aluminum construction
✅ Capacity: 0.02-0.05kg
✅ Accuracy:0.03%R.O.
Quantity:
LC3603 Jewelry scale Load Cell:
The LC3603 Jewelry scale Load Cell / balance machine load sensor is a low capacity strain gauge based load cell and can be used individually in Jewelry scales and balance. The LC3603 Jewelry scale Load Cell / balance machine load sensor is available in the capacities: 0.02,0.05kg. ( balancing machine load sensor, balance machine load sensor, Jewelry scale Load Cell )
The LC3603 Jewelry scale Load Cell / balance machine load sensor is a low capacity strain gauge based load cell and can be used individually in Jewelry scales and balance. The LC3603 Jewelry scale Load Cell / balance machine load sensor is available in the capacities: 0.02,0.05kg. ( balancing machine load sensor, balance machine load sensor, Jewelry scale Load Cell )
LC3603 Balancing Machine Load Sensor Key Features:
✅ Low profile and capacity
✅ Aluminum construction
✅ Capacity: 0.02-0.05kg
✅ Accuracy:0.03%R.O.
✅ Low profile and capacity
✅ Aluminum construction
✅ Capacity: 0.02-0.05kg
✅ Accuracy:0.03%R.O.
LC3603 Balancing Machine Load Sensor Usage & Applications:
✅ Jewelry scales
✅ Balance
✅ Kitchen scales
✅ Portable scales
✅ Electronic scales
✅ Jewelry scales
✅ Balance
✅ Kitchen scales
✅ Portable scales
✅ Electronic scales

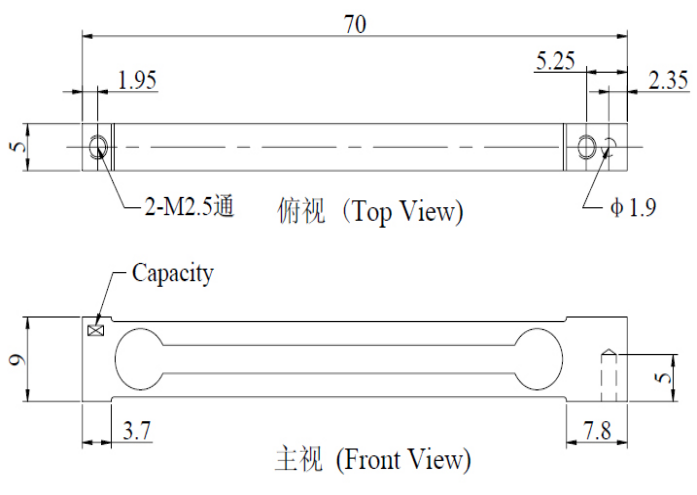

LC3603 Balancing Machine Load Sensor Dimension:
LC3603 Balancing Machine Load Sensor Technical Parameter:
| Rated Capacities | 0.02/0.05 (kg) | Temp. Effect On Output | 0.01 %R.O./℃ |
| Rated Output | 0.5 ±0.15mV/V | Temp. Effect On Zero | 0.05 %R.O./℃ |
| Zero Balance | ±0.0500 mV/V | Input Impedance | 1115±10%Ω |
| Non-linearity | 0.03 %R.O. | Output Impedance | 1000±10% Ω |
| Hysteresis | 0.03 %R.O. | Insulation Impedance | ≥2000 MΩ/(50VDC) |
| Repeatability | 0.03 %R.O. | Recommended Excitation | 5~12 VDC |
| 30mins Creep | 0.03 %R.O. | Maximum Excitation | 15 VDC |
| 30mins Return | 0.03 %R.O. | Operating Temp.Range | -20~60 ℃ |
| Safe Overload | 150 %R.O. | Construction | Aluminum Alloy |
| Ultimate Overload | 200 %R.O. | Protection Class | IP65 |
| Recommended Platform Size | φ55 mm | Cable | φ0.8×0.08m |
