Balance Load Cell
LC3594
This balance beam load cell /aluminum balance load cell is designed for high-precision weighing in both compression and tension applications. Its robust, sealed aluminum construction provides excellent resistance to shock and off-axis loads.Balance beam load cell /aluminum balance load cell is ideal for platform scales, hopper weighing, and force measurement, it ensures reliable performance in industrial environments with easy integration into control systems.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3594
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 40kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3594
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 40kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
This balance beam load cell /aluminum balance load cell is designed for high-precision weighing in both compression and tension applications. Its robust, sealed aluminum construction provides excellent resistance to shock and off-axis loads.Balance beam load cell /aluminum balance load cell is ideal for platform scales, hopper weighing, and force measurement, it ensures reliable performance in industrial environments with easy integration into control systems. ( balance load cell, balance beam load cell, aluminum balance load cell )

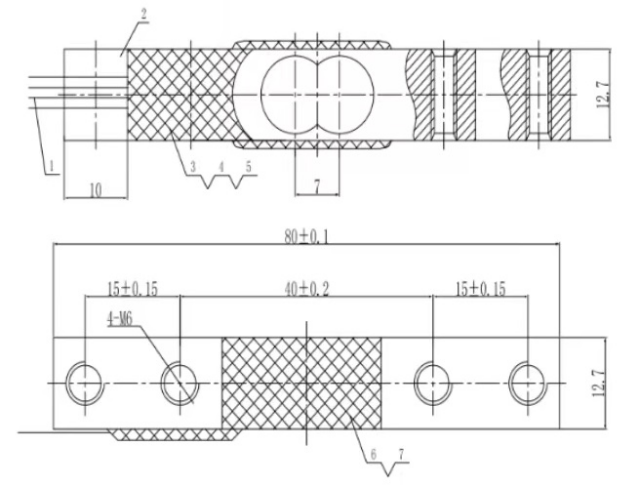

LC3594 Balance Load Cell Dimension:
LC3594 Balance Load Cell Technical Parameter:
| Rated Load: | 40kg | Rated Output: | -0.15±0.05mV/V |
| Rated Output: | 1.3±0.1mV/V | Output Resistance: | 1000±5%Ω |
| Non-Linearity: | 0.05%F.S | Four angle error: | 0.05%F.S |
| Hysteresis: | 0.05%F.S | Temp. Effect On Zero: | 0.05%F.S/10℃ |
| Repeatability: | 0.05%F.S | Temp. Effect On Span: | 0.5%F.S/10℃ |
| Creep: | & 0.05%F.S/3min | Dimension | 80*12.7*12.7 |
