Automotive Scale
WS1181-6
Ningbo Saintbond – Precision Weighing Solutions for Motorsport & Automotive Professionals
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Static weighing
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Static weighing
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Delivery
FOB EXW
minimum order
1 piece
Supply Ability
20000piece / Month
Country of Origin
Ningbo, China
Stock Time
15 ~ 40Day
Quantity:
automotive scale, racing scales for sale, saintbond vehicle scales automotive scale, racing scales for sale, saintbond vehicle scales automotive scale, racing scales for sale, saintbond vehicle scales
Ningbo Saintbond – Precision Weighing Solutions for Motorsport & Automotive Professionals
Ningbo Saintbond is a leading manufacturer of high-precision, rugged weighing systems engineered for the demanding environments of professional motorsport, performance tuning, and automotive engineering. We provide reliable, cutting-edge technology for teams, workshops, and R&D centers worldwide.

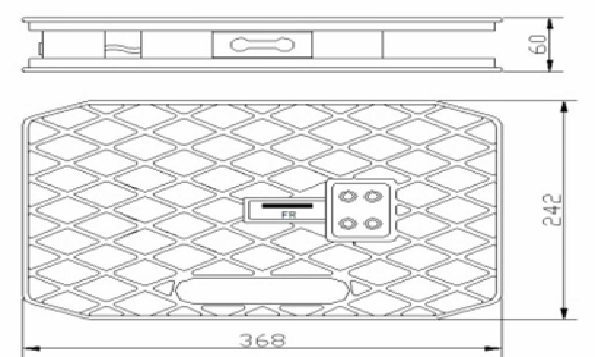

WS1180 Automotive Scale Dimension: mm
WS1180 Automotive Scale Key Features:
1: One set consists of 4 weigh pads and 1dispaly indicator;
2: Platform Size:368x242x60mm;
3: Material: Aluminum Alloy;
4: Fully calibrated system (calibrated using certified M1 weights with full traceability to national standards);
5: Measures & displays: total weight, cross weight, front axle weight, rear axle weight, RH/LH weight, individual corner weights (% also shown);
6: Ultra precise load cells with 0.05% accuracy;
7: Displays to 4 significant places;
8: Their large, easy-to-read screen displays front and rear wheel weights, total weight, percentages;
9: Large backlit screen for easy reading, even in direct sunlight;
10: Control panel housed in an attractive ABS lockable flight line case;
11: Cordless - supplied with Ni-Cad internal batteries with 12-hour battery life;
12: Supplied with 230V mains charger/power cable & with flexible connecting pad cables;
13: Centre of gravity automatic calculation function with asterisk display on the screen to show the exact car center of gravity point (unique feature);
14: Selectable display in either Kgs or lbs;
15: Max weight: 500Kg per pad, 2000Kg in total;
16: USB & parallel printer output ports;
17: Designed to meet strict quality control standards;
18: 50:50 Driving, Target weight calculation for each wheel;
19: 12-month warranty as standard;
1: One set consists of 4 weigh pads and 1dispaly indicator;
2: Platform Size:368x242x60mm;
3: Material: Aluminum Alloy;
4: Fully calibrated system (calibrated using certified M1 weights with full traceability to national standards);
5: Measures & displays: total weight, cross weight, front axle weight, rear axle weight, RH/LH weight, individual corner weights (% also shown);
6: Ultra precise load cells with 0.05% accuracy;
7: Displays to 4 significant places;
8: Their large, easy-to-read screen displays front and rear wheel weights, total weight, percentages;
9: Large backlit screen for easy reading, even in direct sunlight;
10: Control panel housed in an attractive ABS lockable flight line case;
11: Cordless - supplied with Ni-Cad internal batteries with 12-hour battery life;
12: Supplied with 230V mains charger/power cable & with flexible connecting pad cables;
13: Centre of gravity automatic calculation function with asterisk display on the screen to show the exact car center of gravity point (unique feature);
14: Selectable display in either Kgs or lbs;
15: Max weight: 500Kg per pad, 2000Kg in total;
16: USB & parallel printer output ports;
17: Designed to meet strict quality control standards;
18: 50:50 Driving, Target weight calculation for each wheel;
19: 12-month warranty as standard;
High-Performance Racing Scales for Sale:
We offer premium racing scales for sale that are essential for serious competitors. These scales are the top choice for teams looking to optimize their vehicle's dynamics through exact corner weight balancing and weight distribution analysis.
Applications:Precise corner balancing, left/right and cross-weight percentage calculation, ride height adjustment, and overall chassis setup for track and race cars.
Key Features: Ultra-low profile platforms, exceptional accuracy (±0.1% or better), fast and stable readings, and robust design to withstand pit lane conditions. These professional tools are available for direct purchase to equip your team.
We offer premium racing scales for sale that are essential for serious competitors. These scales are the top choice for teams looking to optimize their vehicle's dynamics through exact corner weight balancing and weight distribution analysis.
Applications:Precise corner balancing, left/right and cross-weight percentage calculation, ride height adjustment, and overall chassis setup for track and race cars.
Key Features: Ultra-low profile platforms, exceptional accuracy (±0.1% or better), fast and stable readings, and robust design to withstand pit lane conditions. These professional tools are available for direct purchase to equip your team.
Why Choose Ningbo Saintbond automotive scales?
Uncompromising Precision: Engineered to deliver the repeatable accuracy required for competitive advantage and reliable diagnostics.
Durability Built-In: Constructed to endure the harsh realities of workshops and racetracks—resistant to oils, fuels, impacts, and vibrations.
Innovation-Driven Design: We focus on integrating modern features like wireless connectivity and smart software compatibility to streamline your workflow.
Global Support & Availability: Our products are available for sale worldwide, backed by a professional network offering technical support and service.
Uncompromising Precision: Engineered to deliver the repeatable accuracy required for competitive advantage and reliable diagnostics.
Durability Built-In: Constructed to endure the harsh realities of workshops and racetracks—resistant to oils, fuels, impacts, and vibrations.
Innovation-Driven Design: We focus on integrating modern features like wireless connectivity and smart software compatibility to streamline your workflow.
Global Support & Availability: Our products are available for sale worldwide, backed by a professional network offering technical support and service.
Target Audience: Whether you are a professional racing team seeking the best racing scales for sale, a performance tuning shop in need of a reliable automotive scale, or a developer looking for the integrated data capabilities of proform vehicle scales, Ningbo Saintbond provides the trusted, high-performance weighing technology you need.
Engineer Your Advantage. Measure with Confidence.
WS1180 Proform Vehicle Scales Use:
1: Setting up your race car with this system will show you how alterations in geometry, ride height & stiffness affect weight distribution
2: Record measurements & once your ideal setup is found, use this system to ensure that on your car is race ready every time
3: Ensure you comply with min/max weight restrictions for your class
4: If your vehicle has been damaged or altered, this is an excellent way of checking how your setup compares with previous readings
1: Setting up your race car with this system will show you how alterations in geometry, ride height & stiffness affect weight distribution
2: Record measurements & once your ideal setup is found, use this system to ensure that on your car is race ready every time
3: Ensure you comply with min/max weight restrictions for your class
4: If your vehicle has been damaged or altered, this is an excellent way of checking how your setup compares with previous readings
WS1180 Proform Vehicle Scales Waring:
The effectiveness of this system is directly related to the way in which it is installed, used & maintained. The user assumes that risk. No warranty, expressed or implied, is made as to its ability to protect against serious injury or death. See instructions for correct installation. If in doubt, consult the manufacturer. Systems can be returned to the Manufacturer for inspection once a year & calibrated every year at a service charge. Contact the manufacturer if the software or hardware is damaged in any way or does not function properly.
The effectiveness of this system is directly related to the way in which it is installed, used & maintained. The user assumes that risk. No warranty, expressed or implied, is made as to its ability to protect against serious injury or death. See instructions for correct installation. If in doubt, consult the manufacturer. Systems can be returned to the Manufacturer for inspection once a year & calibrated every year at a service charge. Contact the manufacturer if the software or hardware is damaged in any way or does not function properly.
