Anchor Load Cell
LC6296
LC6296 Anchor Load Cell / through hole anchor load cell high-precision load cell features a hollow ring design for measuring tension, compression, and radial forces. Ideal for industrial weighing, machinery monitoring, and structural testing, it offers robust durability, high accuracy, and easy installation. LC6296 Anchor Load Cell / load sensor price compatible with various signal outputs, it ensures reliable performance in harsh environments.
Quantity:
LC6296 Anchor Load Cell / through hole anchor load cell high-precision load cell features a hollow ring design for measuring tension, compression, and radial forces. Ideal for industrial weighing, machinery monitoring, and structural testing, it offers robust durability, high accuracy, and easy installation. LC6296 Anchor Load Cell / load sensor price compatible with various signal outputs, it ensures reliable performance in harsh environments. ( anchor load cell, through hole anchor load cell, load sensor price )
LC6296 Anchor Load Cell Introduction:
✅ Hollow design, high precision, strong anti-bias load capacity;
✅ Suitable for extrusion, assembly, material tank, material mechanics testing machine and other fields;
LC6296 Anchor Load Cell Application:
Compression Testing Machine, Large Hydraulic Machinery Equipment, Large Range Force Measurement and Various Weighing Testing in Colleges and Universities, Large Industrial Weighing Control System;

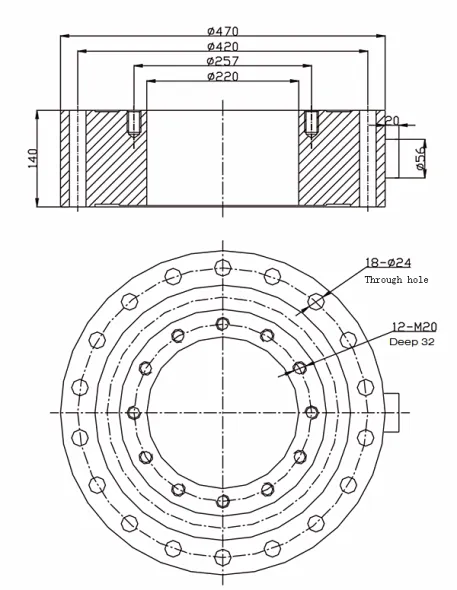

LC6296 Anchor Load Cell Dimension:mm
Note:The overall dimensions can be customized according to the customer's requirements:
LC6296 Anchor Load Cell Technical Parameter:
| Rated Load: | 650t | ||
| Sensitivity: | (2.0±0.1%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | A:Alloy / Stainless Steel |
| Output Resistance: | 702±3Ω | Cable: | Length=L:3m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
