Aluminum Miniature Load Cell
LC3513
This Aluminum Miniature 10g load cell is engineered for applications where space and weight are critical. Its compact, lightweight design delivers reliable performance in force and weight measurement. Despite its small size, it offers excellent accuracy and stability. The robust aluminum construction ensures durability while providing cost-effectiveness. The Aluminum Miniature 10g load cell ideal for integration into portable devices, medical equipment, robotic systems, and compact scales, this Aluminum Miniature Load Cell is the perfect solution for modern, space-constrained engineering challenges.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3513
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 500g~3000g
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3513
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 500g~3000g
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
This Aluminum Miniature 10g load cell is engineered for applications where space and weight are critical. Its compact, lightweight design delivers reliable performance in force and weight measurement. Despite its small size, it offers excellent accuracy and stability. The robust aluminum construction ensures durability while providing cost-effectiveness. The Aluminum Miniature 10g load cell ideal for integration into portable devices, medical equipment, robotic systems, and compact scales, this Aluminum Miniature Load Cell is the perfect solution for modern, space-constrained engineering challenges. ( 10g load cell, Aluminum Miniature Load Cell, Aluminum Miniature 10g load cell )

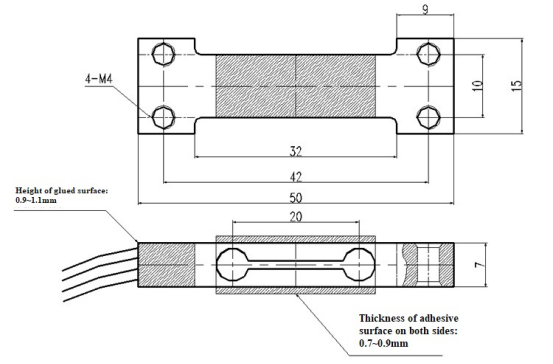

LC3513 Aluminum Miniature Load Cell Dimension:
LC3513 Aluminum Miniature Load Cell Technical Parameter:
| Rated Load: | 500g~3000g | Four Angle Error: | 0.05%F.S |
| Comprehensive Error: | 0.03%F.S | Input Resistance: | 1000±10Ω |
| Rated Output: | 1±0.1mV/V | Output Resistance: | 1000±10Ω |
| Non-Linearity: | 0.05%F.S | Compensated Temp. Range: | -10℃~+40℃ |
| Hysteresis: | 0.05%F.S | Use Temp. Range: | -20℃~+60℃ |
| Repeatability: | 0.05%F.S | Temp. Effect On Zero: | 0.03%F.S/10℃ |
| Creep: | 0.05%F.S/3min | Temp. Effect On Span: | 0.3%F.S/10℃ |
| Zero Balance: | ±0.15±0.05%F.S | Safe Overload: | 120% |
| Dimension: | 50×15×7 | Ultimate Overload: | 150% |
