Aluminum Load Cell Weight Sensor
LC3537
This single beam load cell weight sensor offers high precision and durability for industrial weighing. Its compact, rugged design ensures reliable performance in various applications like scales, hoppers, and force measurement. With easy integration via popular amplifiers like the LC3537, parallel load cell weight sensor's an ideal, cost-effective solution for your Arduino or microcontroller projects requiring robust weight sensing.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3537
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:50kg~2000kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3537
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:50kg~2000kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
This single beam load cell weight sensor offers high precision and durability for industrial weighing. Its compact, rugged design ensures reliable performance in various applications like scales, hoppers, and force measurement. With easy integration via popular amplifiers like the LC3537, parallel load cell weight sensor's an ideal, cost-effective solution for your Arduino or microcontroller projects requiring robust weight sensing. ( parallel load cell weight sensor, aluminum load cell weight sensor, single beam load cell weight sensor)
LC3537 Aluminum Load Cell Weight Sensor Description:
✅ Stainless steel IP67 single beam load cell weight sensor;
✅ Bending beam;
✅ Suitable for belt, platform and other electronic weighing devices;
✅ Maximum platform size:
①For 50kg-200kg:400x400mm;
②For 250kg-500kg:600x800mm;
③For 750kg-2t:1200x1200mm;
✅ Stainless steel IP67 single beam load cell weight sensor;
✅ Bending beam;
✅ Suitable for belt, platform and other electronic weighing devices;
✅ Maximum platform size:
①For 50kg-200kg:400x400mm;
②For 250kg-500kg:600x800mm;
③For 750kg-2t:1200x1200mm;

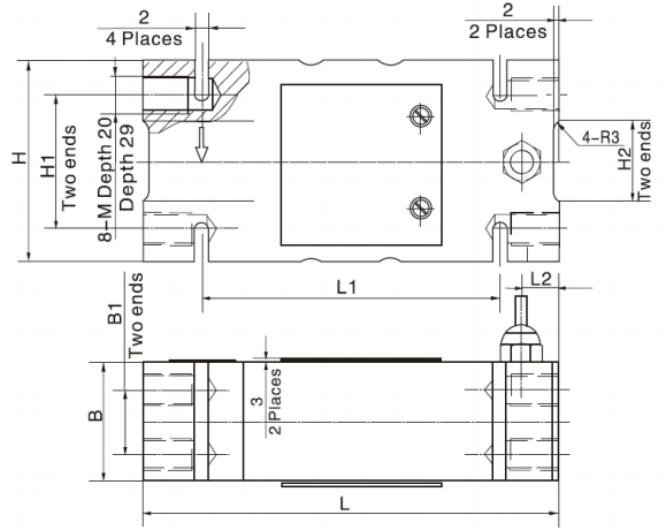

LC3537 Aluminum Load Cell Weight Sensor Dimension:
| Cap. | B | B1 | H | H1 | H2 | L | L1 | L2 | M |
| 50~200kg | 44 | 24 | 75 | 50 | 30 | 156 | 112 | 14 | M12 |
| 250~500kg | 60 | 36 | 95 | 70 | 30 | 146 | 110 | 11 | M12 |
| 750~2000kg | 76 | 46 | 125 | 95 | 65 | 176 | 110 | 24 | M16 |
LC3537 Aluminum Load Cell Weight Sensor Technical Parameter:
| Rated Load: | 100/150/200/250/500/750/1000/2000kg | ||
| Sensitivity: | (2.0±0.2%)mV/V | Operating Temp. Range: | -10~+70℃ |
| Combined Error: | ±0.023% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(5min): | ±0.03% F.S | Ultimate Over Load:: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP68 |
| Input Resistance: | 385±5Ω | Element Material: | Stainless Steel |
| Output Resistance: | 350±3Ω | Cable: | Length=L:3m |
| Insulation Resistance: | ≥5000MΩ | Recommended Torque on fixation: | M12:75, M16:200Nm |
