150kg Load Cell
LC3519
This single point 150kg load cell is engineered for high-performance bench and platform scales. Its compact design allows for easy integration, providing accurate and reliable weight measurements in various industrial and commercial applications.Aluminum 150kg load cell with built with robust materials, it ensures long-term stability and durability, making it an ideal choice for price computing scales, filling machines, and checkweighers.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3519
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:30~500kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3519
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:30~500kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
This single point 150kg load cell is engineered for high-performance bench and platform scales. Its compact design allows for easy integration, providing accurate and reliable weight measurements in various industrial and commercial applications.Aluminum 150kg load cell with built with robust materials, it ensures long-term stability and durability, making it an ideal choice for price computing scales, filling machines, and checkweighers. ( 150kg load cell, aluminum 150kg load cell, single point 150kg load cell150kg load cell, aluminum 150kg load cell, single point 150kg load cell )

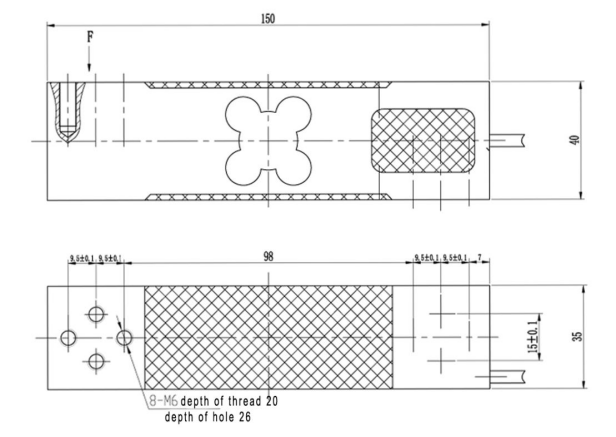

LC3519 150kg Load Cell Dimension:
LC3519 150kg Load Cell Technical Parameter:
| Rated Load: | 30/50/60/100/150/200/250/300/350/500kg | ||
| Comprehensive Error: | 0.017%F.S & 0.02%F.S | Insulation Resistance: | ≥5000MΩ(100VDC) |
| Rated Output: | 2±0.2mV/V | Excitation Voltage: | 9VDC~12VDC |
| Non-Linearity: | 0.02%F.S & 0.014%F.S | Compensated Temp. Range: | -10℃~+40℃ |
| Hysteresis: | 0.017%F.S & 0.02%F.S | Use Temp. Range: | -20℃~+60℃ |
| Repeatability: | 0.01%F.S & 0.02%F.S | Temp. Effect On Zero: | ±0.03%/+0.01%F.S/10℃ |
| Creep: | ±0.017%F.S/30min | Temp. Effect On Span: | ±0.02%/ ±0.014%F.S/10℃ |
| & 0.02%F.S/10min | |||
| Zero Balance: | ±2%F.S | Safe Overload: | 120% |
| Input Resistance: | 405±10Ω | Ultimate Overload: | 150% |
| Output Resistance: | 350±3Ω | Defense Class: | IP65 |
