Zemic Ball type Load Cell
ZEMIC HM9A
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: HM9A
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:5~50t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Brand Name: Saintbond
Product Orgin: China
Item No.: HM9A
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:5~50t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
1 piece
Supply Ability
20000piece / Month
Country of Origin
China
Stock Time
5-35Day
Quantity:
zemic shear beam load cell, zemic ball type load cell, double ended shear beam load cell zemic shear beam load cell, zemic ball type load cell, double ended shear beam load cell zemic shear beam load cell, zemic ball type load cell, double ended shear beam load cell
The HM9A zemic shear beam load cell / zemic ball type load cell is a high-performance, zemic ball type load cell /double ended shear beam load cell designed for precision weight measurement and force monitoring in demanding industrial applications. It utilizes a shear force measurement principle, offering excellent resistance to off-center and side loads. Double ended shear beam load cell robust, hermetically sealed stainless steel construction ensures long-term stability and reliability even in harsh environments.

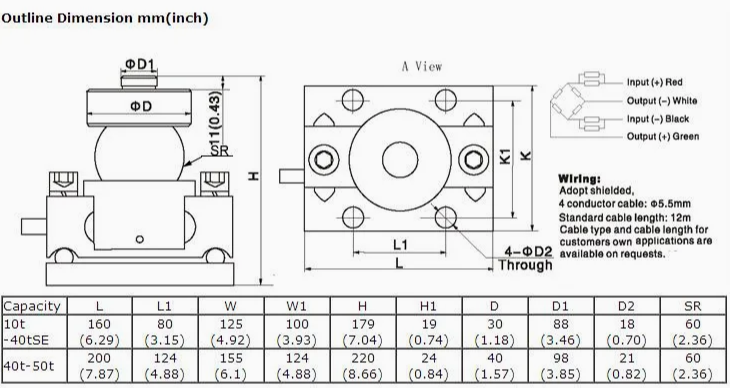

HM9A Zemic Ball Type Load Cell Dimension:mm
HM9A Zemic Ball Type Load CellTechnical Parameter:
| Capacity | t | 10/15/20/25/30/40/40SE/50 | ||||
| Accuracy | C1 | C2 | C3 | A5M | B10M | |
| Max number of | n max | 1000 | 2000 | 3000 | 5000 | 10000 |
| verification intervals | ||||||
| Mini number of | v min | Emax/3000 | Emax/5000 | Emax | Emax | Emax |
| verification intervals | /10000 | /15000 | /10000 | |||
| Combined error | (%FS) | ≤±0.050 | ≤±0.030 | ≤±0.020 | ≤±0.026 | ≤±0.050 |
| Creep | (%FS/30min) | ≤±0.038 | ≤±0.024 | ≤±0.016 | ≤±0.017 | ≤±0.040 |
| Temperature effect | (%FS/10ºC) | ≤±0.028 | ≤±0.017 | ≤±0.011 | ≤±0.013 | ≤±0.040 |
| on sensitivity | ||||||
| Temperature effect on zero | (%FS/10ºC) | ≤±0.047 | ≤±0.023 | ≤±0.015 | ≤±0.014 | ≤±0.020 |
| Output sensitivity | (mv/v) | 2.0±0.002 | ||||
| Input resistance | (Ω) | 700±3.5 | ||||
| Output resistance | (Ω) | 703±3.5 | ||||
| Insulation resistance | (MΩ) | ≥ 5000(50VDC) | ||||
| Zero balance | (%FS) | 1.5 | ||||
| Temperature, compensated | (ºC) | -10~+40 | ||||
| Temperature,allowed | (ºC) | -35~+65 | ||||
| Excitation, Recommended | (V) | 5~12(DC) | ||||
| Excitation,Max | (V) | 18(DC) | ||||
| Safe overload | (%FS) | 150 | ||||
| Ultimate overload | (%FS) | 300 | ||||
HM9A Zemic Ball Type Load Cell Typical Applications:
Tank & Silo Weighing: Ideal for level and inventory control of liquids and bulk solids.
Platform Scales: Used in truck, floor, and industrial bench scales.
Process Weighing: Batching systems, filling machines, and checkweighers.
Overload Monitoring: Force measurement in cranes, hoists, and safety systems.
Industrial Automation: Force feedback and control in machinery and production lines.
Tank & Silo Weighing: Ideal for level and inventory control of liquids and bulk solids.
Platform Scales: Used in truck, floor, and industrial bench scales.
Process Weighing: Batching systems, filling machines, and checkweighers.
Overload Monitoring: Force measurement in cranes, hoists, and safety systems.
Industrial Automation: Force feedback and control in machinery and production lines.
