Wireless Indicator Weighing

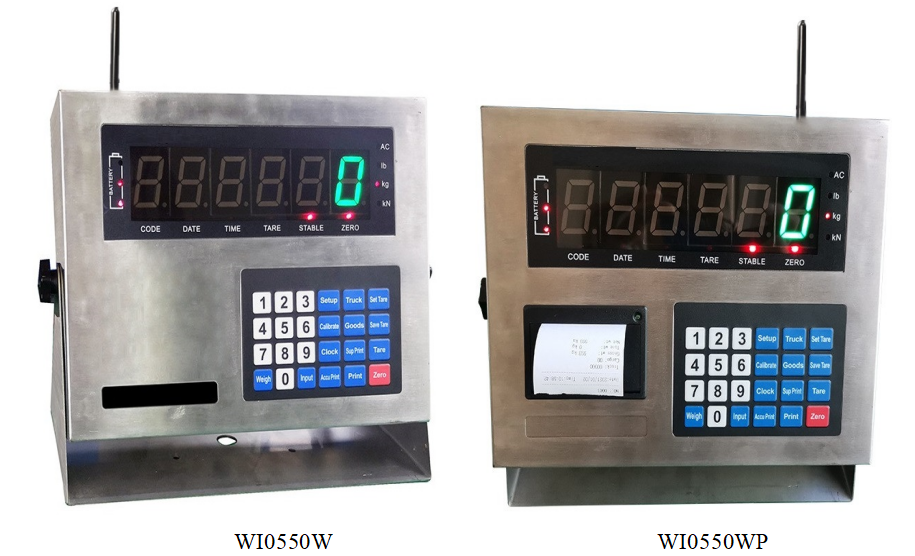

WI0550W
Wireless indicator weighing is an industrial weighing device. It is designed for axle scales, cranes and dynamometers. Weighbridge wireless weight indicator provides wireless communication up to 100 metres (500~1000m Optional) and can show the weight information of 16 different load cells on the graphic display by connecting to WI.
Quantity:
Wireless indicator weighing is an industrial weighing device. It is designed for axle scales, cranes and dynamometers. Weighbridge wireless weight indicator provides wireless communication up to 100 metres (500~1000m Optional) and can show the weight information of 16 different load cells on the graphic display by connecting to WI. (Weighbridge wireless weight indicator, wireless weight indicator for weighbridge, Wireless indicator weighing )
Wireless Indicator Weighing Applications:
✅Crane Scales
✅Weighbridge / Truck Scale
✅Portable Axle Scales
✅all kinds of weighing scale
Weighbridge Wireless Weight Indicator Technical Parameter:
✅Model : WI0550W Wireless indicator weighing
✅Analog signal input range: -20mV ~ +20mV
✅AD internal conversion accuracy: 1/1000,000
✅Sampling rate: 80 times /s
✅A/D nonlinearity: <0.01%FS
✅Excitation voltage of load cell: DC5V
✅Max. connection number of load cell: 8 at 350 ohm or 16 at 700 ohm
✅Display: 6 pcs 1.2"LED , 12 pcs status indicators
✅Keyboard: 0~9 numeric keys, 14 function keys
✅Clock: display year, month, day, hour, minute, second, automatic leap year, leap month Interface for big display: current ring and RS232 (600bps)
✅Communication interface: RS232 and RS485, wireless communication mode optional; 1200/2400/4800/9600/19200 is optional
✅Usb interface: USB2.0/3.0
✅Print interface: standard parallel print interface configuration, ESPON LQ-300k + Ⅱ, ESPON LQ-300 k, ESPON LQ-680 k, ESPON LQ-730 k, ESPON LQ - 1600 k (+), KX - P1131, KX - P1121, DS-300 line printer;
-P with thermal printer;
✅Data storage 1000 sets of tare weight, 1000 sets of one-time weighing records, 500,000 sets of secondary weighing records (can be exported to the computer through U disk or serial port)
✅Power voltage: AC220V, DC6V/10A rechargeable battery
✅Operating temperature and humidity: -10 ~ 50℃;90% RH or less
✅Size: 270mm x 210mm x 75mm
✅Self-weight: about 3.5kg
Weighbridge Wireless Weight Indicator Technical Parameter：
| A/D Conversion Method: | Σ-Δ |
| Input Signal Range: | －3mV～15mV |
| Load Cell Excitation: | DC 5V |
| Max. Connection Number Of Load Cell: | 4 at 350 ohm |
| Load Cell Connection Mode: | 4 wire |
| Verified Counts: | 3000 |
| Max. External Counts: | 15000 |
| Division: | 1/2/5/10/20/50 optional |
| Display: | LCD display with backlight |
| Clock: | real clock without effect on power off |
| Wireless Transmission Frequency: | 450MHz |
| Wireless Transmission Distance: | 100~500 meters (in wide place) |
| Option: | RS232 communication interface |
