Indicator Weighing

STWI100

Indicator Weighing engineered for industrial platform scales, this ruggedized indicator weighing delivers precise weight readings via high-contrast LCD/LED displays. Platform Scale Weighing Indicator key features include tare, zero tracking, unit conversion (kg/lb/lb:oz), and overload protection. IP65-rated housing resists dust, moisture, and impacts. Seamless RS232/ETH connectivity integrates with printers, PLCs, or data systems. Simple calibration and user-friendly operation ensure efficiency in high-traffic environments like warehouses, factories, and logistics hubs. Durable, reliable, and designed for 24/7 performance.

Quantity:

Contact Now

add to cart

Indicator Weighing Key Strengths:

✅Tough: IP65 + shockproof

✅Smart: Tare/units/connectivity

✅Adaptable: Warehouses to docks

✅Low-maintenance

High accuracy:

✅The max. number of display resolution reaches to 50,000 ~ 80,000d;

✅Simple and fast operation;

Large screen display:

✅132mm * 62mm segmented LCD screen, large weight display and

✅3 data display areas

Rich application:

✅Basic weighing, pricing livestock weighing, tank and hopper weighing, PEAK, process control etc.(customizable);

Stainless steel housing:

✅SUS 304 stainless steel enclosure, IP65;

Accessories:

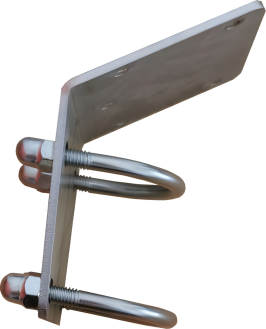

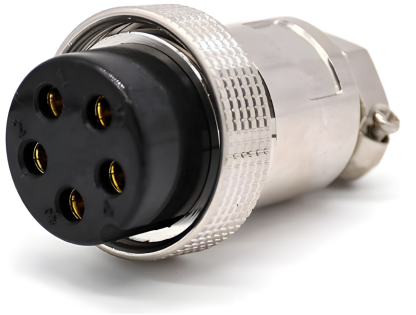

Angle-adjusted stand, aviation plug(3 or 5 pin)

Indicator Weighing Technical Parameter:

Voltage	85 ~ 264 V AC, 50 ~ 60 Hz
Battery	Build-in 1500mAh battery(excluding AL and DL), high-capacity battery is exchangeable
Display screen	132mm*62mm segmented LCD screen
Max. number of verified division(e)	3000
Max. number of display resolution(d)	50,000—80000
Number of load cells	Max. 6x350Ω load cells ( 2 or 3 mv/v)
Accuracy class	Class III
Protocol	Continuous output, Modbus-RTU, Modbus-TCP
Serial port	1 channel RS232 or RS485 optional
Other interfaces	1 channel AO optional, 1channel DI/O(1DI + 3DO) optional, 1channel 4G optional
Bluetooth printer	Bluetooth optional
Enclosure material	SUS 304 stainless steel
Mounting style	Wall-mounted via angle-adjusted stand, desk-placed or column-sit
Typical applications	Basic weighing, pricing livestock weighing, tank and hopper weighing, PEAK, process control etc.(customizable)
Approvals	China: ESD Class III
	China: EFT/B Class III
	China: Surge Class III

ID	Modle	Configuration	Application
1	STWI100A	Analog	Basic weighing, pricing, livestock weighing
2	STWI100D	Digital	Basic weighing, pricing, livestock weighing
3	STWI100AP	Analog + Bluetooth	Basic weighing, pricing, livestock weighing, print
4	STWI100X	Analog	Basic weighing, counting(small capacity and interval model)
5	STWI100H	Analog	Basic weighing, counting(quick weighing model)
6	STWI100M	Analog	Basic weighing, counting(forklift scale model)
7	STWI100AC	Analog + RS232	Basic weighing, pricing, livestock weighing(continuous output)
8	STWI100AE	Analog + RS232	Basic weighing, pricing, livestock weighing (continuous output, Modbus-RTU)
9	STWI100K	Analog + RS232 + Bluetooth	Basic weighing, pricing, livestock weighing, accumulation, print (livestock weighing Pilop Lamp)
10	STWI100O	Analog + RS485 + AO	Basic weighing(continuous output, Modbus-RTU)
11	STWI100AL	Analog + RS485	Tank and hopper weighing(continuous output, Modbus-RTU)
12	STWI100AF	Analog + RS232	PEAK(continuous output)
13	STWI100U	Analog + RS485 + DI/DO	Basic weighing, quantitative filling, checkweigher
14	STWI100DL	Digital + RS485	Tank and hopper weighing(continuous output, Modbus-RTU)
15	STWI100DP	Digital + Bluetooth	Tank and hopper weighing, print
16	STWI100DCP	Digital + Bluetooth + RS232	Tank and hopper weighing, print(continuous output)
17	STWI100DL-4G	Digital + RS485 + 4G	Tank and hopper weighing(continuous output, Modbus-RTU, Modbus-TCP)
18	STWI100ACP	Analog + Bluetooth + RS232	Basic weighing, pricing, livestock weighing, print(continuous output)
19	STWI100DC	Digital + RS232	Tank and hopper weighing(continuous output)
